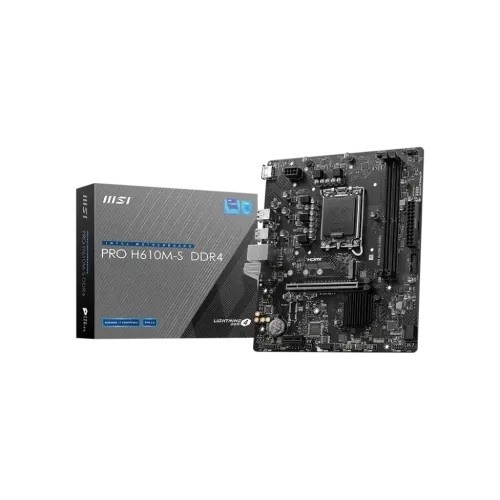

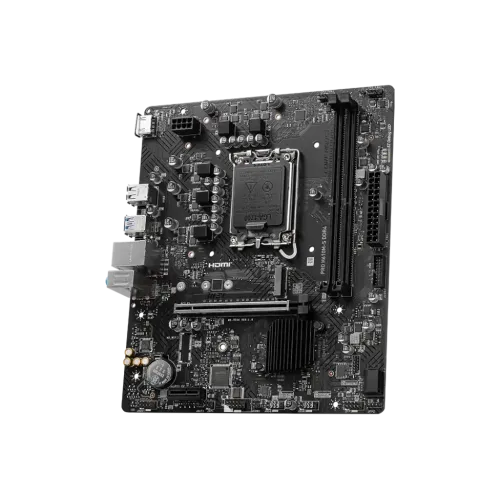

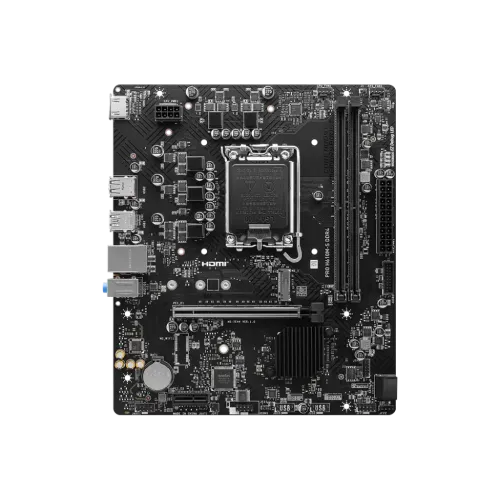

MSI PRO H610M-S DDR4 m-ATX Motherboard

MSI PRO H610M-S DDR4 m-ATX motherboard is a robust and versatile option for those looking to build a reliable system. This motherboard is designed to support Intel's latest processors, including the 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, utilizing the LGA 1700 socket. It is built on the Intel H610 chipset and follows the micro-ATX form factor, making it suitable for compact yet powerful PC builds. In terms of memory, the motherboard features one DDR4 slot, supporting speeds ranging from 1866 MHz to 3200 MHz by JEDEC standards. It supports dual-channel mode, non-ECC, un-buffered memory, with a maximum capacity of 64GB, providing ample space for multitasking and high-performance applications. For expansion, the MSI PRO H610M-S includes one PCI-E x16 slot (Gen PCIe 4.0) and one PCI-E x1 slot (Gen PCIe 3.0), ensuring compatibility with a variety of expansion cards and peripherals. Storage options are also well-catered for with one M.2 socket supporting PCIe 3.0 x4 devices and two SATA 6G ports, allowing for a combination of high-speed and traditional storage solutions. The motherboard offers a good range of connectivity options, featuring four USB 2.0 ports on the rear, four additional USB 2.0 ports on the front, and four USB 5Gbps Type-A ports (two rear, two front). The inclusion of an HDMI 1.4 port with HDR support ensures that users can enjoy high-definition video output at resolutions up to 4K at 30Hz. Network connectivity is provided by the Realtek RTL8111H Gigabit LAN, ensuring fast and reliable internet access. The audio setup is powered by the Realtek ALC897 codec, offering 7.1-channel high-definition audio for immersive sound experiences. Additional internal I/O ports include power connectors for the ATX and CPU, a CPU fan header, a system fan header, front panel headers, a chassis intrusion connector, a front audio connector, and a TPM pin header supporting TPM 2.0 for enhanced security. The motherboard also features four EZ Debug LEDs for troubleshooting. Overall, the MSI PRO H610M-S DDR4 m-ATX motherboard is a feature-rich and reliable option, suitable for various computing needs from home office setups to gaming rigs.
