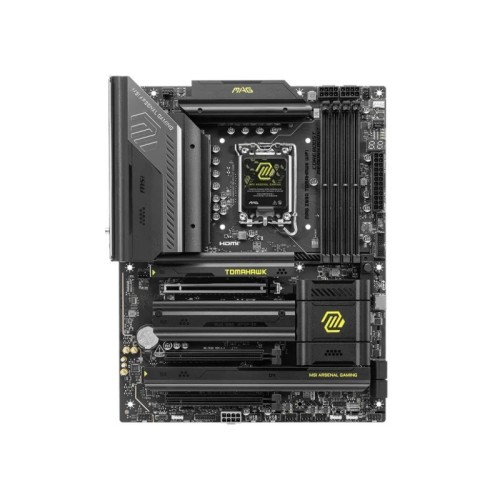

MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Motherboard
-15 %
MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: MAG Z890 TOMAHAWK WIFI
Key Features
- 4 x Dual-Channel DDR5 Slots
- 1 x PCIe 5.0 x16 | 2 x PCIe 4.0 x16
- Wi-Fi 7 | Bluetooth 5.4 | 5GbE
- 7.1-Channel Audio
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
| Main Features | |
| Chipset | INTEL Z890 |
| Form Factor | ATX |
| Supported CPU | Supports Intel® Core™ Ultra Processors (Series 2) |
| General Information | |
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Display Port | 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Memory Type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| PCI-E | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Sockets Supported | LGA 1851 |
| SSD | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G*Please refer to the manual for M.2 SSD heatsink restrictions. |

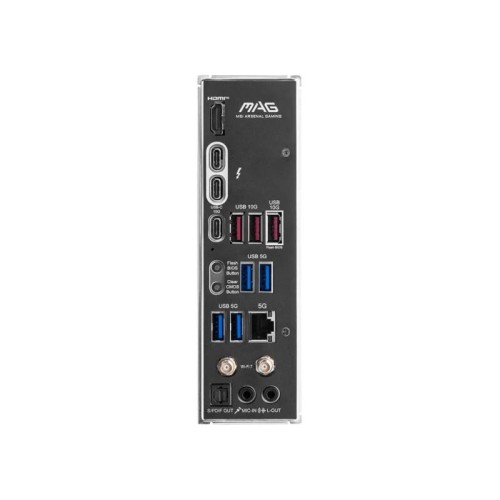

| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 10x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
| Wi-Fi | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Memory Specifications | |
| Supported Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s |
| Connector & ports | |
| HDMI | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 4K 120Hz* |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Warranty Information | |
| Warranty | 3 Years |
MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Motherboard
MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Motherboard is a high-performance motherboard designed for power users and gamers seeking top-tier capabilities. With support for Intel® Core™ Ultra Processors (Series 2) and the LGA 1851 socket, it is optimized for the latest generation of Intel CPUs, making it ideal for users who require exceptional computing power and efficiency. The Intel Z890 chipset forms the backbone of the board, offering a versatile platform with robust connectivity and expansion options. A key highlight of this motherboard is its M.2 storage support, which includes four M.2 slots. The M.2_1 slot supports PCIe 5.0 x4 speeds, providing exceptional data transfer rates for users utilizing PCIe Gen 5 SSDs. The additional M.2 slots offer support for PCIe 4.0 x4 and SATA mode, allowing for flexibility in storage options. With multiple M.2 slots, users can easily set up high-speed storage arrays, making this board perfect for those who work with large data sets or engage in heavy gaming. Memory support is another strength, as the MAG Z890 TOMAHAWK accommodates up to 256GB of DDR5 RAM, with speeds ranging from 9200 MT/s to 4800 MT/s depending on configuration. This board supports both Intel® XMP 3.0 for overclocking and dual-controller dual-channel mode, ensuring maximum memory performance for tasks requiring high bandwidth. On the networking front, the inclusion of Intel® Killer™ BE1750x Wi-Fi 7 ensures blazing-fast wireless speeds, with support for 5.8Gbps connections over 2.4GHz, 5GHz, and 6GHz bands. Additionally, the Intel® Killer™ E5000 5Gbps LAN offers a wired alternative for users seeking ultra-low latency and stable connections, making this board a great option for competitive gamers and content creators. For connectivity, the motherboard is loaded with USB ports, including USB 2.0, USB 5Gbps, USB 10Gbps, and a USB 20Gbps Type-C port that supports fast charging. Video output is equally impressive, with HDMI 2.1 and DisplayPort 1.4 support, providing the ability to handle up to 8K resolution at 60Hz or 4K at 120Hz, which is ideal for creators working with high-resolution content. Overall, the MSI MAG Z890 TOMAHAWK WIFI is an excellent choice for users who need a balance of cutting-edge performance, ample expansion options, and high-speed connectivity in a motherboard suitable for gaming, content creation, and demanding workloads.
