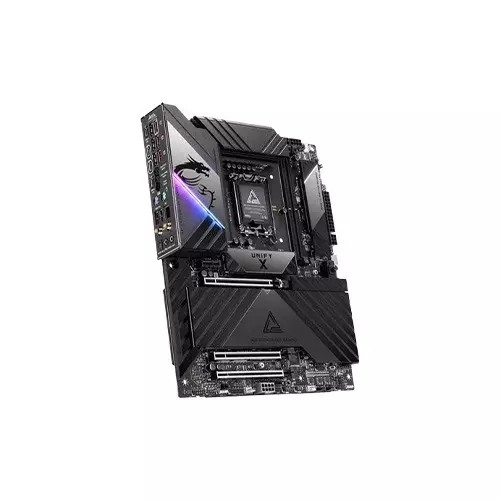

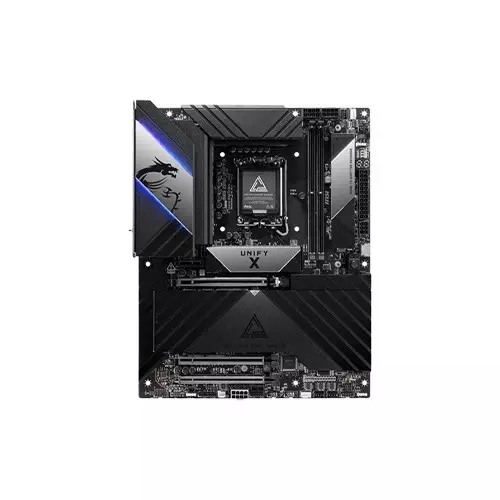

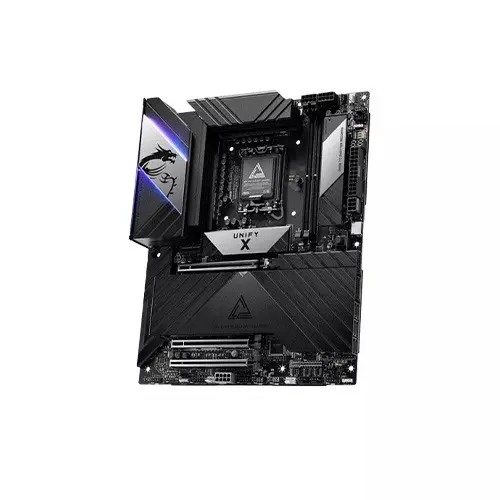

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

Product ID: UT-13125
Customer rating: ★★★★★ 5.0 (1)
Availability: In stock
Questions: 0 answered

1 / 5

All prices include VAT. 0% EMI from ৳7,083/mo on 29 banks.

Save ৳7,000 -8%৳85,000~~Was ৳92,000~~

Key features

Full specs

Supported CPUIntel Core Ultra Processors (Series 2), LGA 1851
Supported RAM2x DDR5, Max 128GB 9600 - 6400 (OC) MT/s
Graphics Output2x Type-C DisplayPort
Features6x M.2, Intel Wi-Fi 7

0% EMI on credit cards of 29 banks — ৳7,083/mo for 12 months.
Online price saves you ৳7,000 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandMSI207 productsBrowse all →

Specifications

Key Specifications

Processor Type	Intel
Socket	LGA1851
Chipset	Intel Z890
Form Factor	ATX

RAM Type	DDR5
Maximum Memory	128GB
Features	Wi-Fi, Bluetooth, M.2, RGB, USB Type-C, PCIe 5.0

Processor

Supported CPU	Supports Intel Core Ultra Processors (Series 2)

Memory

Memory	Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 9600+ MT/s 1DPC 2R Max speed up to 7200+ MT/s

Expansion & Storage

Expansion Slots

PCI: 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot. ** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot. Slots: 2x DDR5 UDIMM, Maximum Memory

Storage

M.2 Socket: 6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4, supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. *** Please refer to the manual for M.2 SSD heatsink restrictions. Supported Storage: 6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4, supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices 6x SATA 6G RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Graphics & Display

Onboard Graphics	2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

Display Outputs	2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

Networking

LAN	1x Intel® Killer E5000B 5G LAN

Wireless	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM

Audio

Audio	Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel

Ports & Connectors

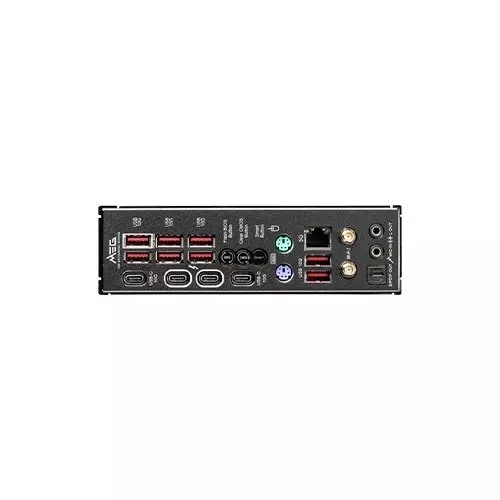

USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)

Internal Connectors

1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

Other Features

Special Features	TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0) LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED

Warranty

Warranty	3 year warranty

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

MSI MEG Z890 UNIFY-X Motherboard

MSI MEG Z890 UNIFY-X is a premium high-performance motherboard designed for enthusiasts, overclockers, and power users who demand exceptional performance and connectivity. Built around the Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2) with the LGA 1851 socket, providing an outstanding foundation for gaming rigs and workstation setups.

Performance and Chipset

The motherboard features the INTEL Z890 chipset, ensuring excellent stability, efficiency, and performance tuning capabilities. It supports DDR5 memory with speeds up to 9600+ MT/s (OC) and a total capacity of 128GB, across 2x DDR5 UDIMM slots. The board’s memory design enables extreme overclocking performance, making it ideal for advanced users.

Expansion and Storage Options

The MSI MEG Z890 UNIFY-X offers unmatched expandability with 3x PCIe x16 slots and 1x PCIe x1 slot. It supports PCIe 5.0 and 4.0 standards, providing ultra-fast bandwidth for next-generation GPUs and expansion cards.

For storage, the motherboard includes 6x M.2 slots and 6x SATA 6Gb/s ports, offering flexible storage configurations. Each M.2 slot supports PCIe 4.0 or 5.0 x4 speeds, ensuring rapid data transfer and minimal latency. Additionally, it supports RAID 0, 1, 5, and 10 for both SATA and NVMe storage devices, delivering robust data protection and performance.

Connectivity and Networking

Connectivity is a strong point of this motherboard. It features an impressive range of USB ports, including:

8x USB 10Gbps Type-A (rear)
2x USB 10Gbps Type-C (rear)
4x USB 5Gbps Type-A (front)
1x USB 20Gbps Type-C (front) with PD 60W fast charging support

Networking is handled by the Intel® Killer E5000B 5G LAN for high-speed wired connections, and the Intel® Killer™ BE1750x Wi-Fi 7 module for next-gen wireless performance up to 5.8Gbps, supporting Bluetooth 5.4 and MLO technologies.

Audio and Display

Audio quality is powered by the Realtek ALC4080 codec, offering 7.1-channel high-definition sound with S/PDIF output and up to 32-bit/384kHz playback. Display output is available through 2x Thunderbolt 4 Type-C ports, supporting DisplayPort 2.1 with resolutions up to 8K@60Hz or 4K@120Hz, depending on the CPU’s integrated graphics.

Build, Design, and Additional Features

The ATX form factor (243.84mm x 304.8mm) ensures compatibility with most mid- and full-tower cases. MSI includes advanced diagnostic tools like EZ Debug LED, EZ Digit Debug LED, and multiple V-check points for monitoring performance and troubleshooting.

Additional internal headers include connectors for RGB lighting (JARGB_V2 & JRGB), Thunderbolt 5, thermal sensors, water cooling, and TPM 2.0 for enhanced security.

Conclusion

The MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard is a cutting-edge platform built for elite users seeking superior performance, next-gen connectivity, and unmatched overclocking potential. Whether for gaming, content creation, or heavy multitasking, this motherboard stands as a top-tier choice in the enthusiast segment.

Features

Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
Equipped with Intel Z890 chipset for powerful performance
ATX form factor (243.84mm x 304.8mm)
Supports DDR5 memory up to 128GB, speeds up to 9600+ MT/s (OC)
Features 2x DDR5 UDIMM slots for high-speed RAM
3x PCIe x16 and 1x PCIe x1 slot, supports PCIe 5.0 and 4.0
6x M.2 slots (PCIe 5.0/4.0/SATA) and 6x SATA 6Gb/s ports
Supports RAID 0/1/5/10 for SATA and NVMe storage devices
Realtek ALC4080 Audio Codec with 7.1-channel HD audio and S/PDIF output
2x Thunderbolt 4 Type-C ports supporting DisplayPort 2.1 (8K@60Hz / 4K@120Hz)
Intel Killer E5000B 5G LAN for ultra-fast wired networking
Intel Killer BE1750x Wi-Fi 7 with Bluetooth 5.4 and MLO support
Extensive USB connectivity: 8x USB 10Gbps Type-A (rear), 2x USB Type-C (rear), 4x USB 5Gbps (front), and 1x USB 20Gbps Type-C (front)
PD 60W fast charging support via front USB Type-C port
Features EZ Debug LED and EZ Digit Debug LED for easy troubleshooting
Includes RGB and ARGB headers for lighting customization
V-check points for accurate voltage monitoring
Water cooling, thermal sensor, and chassis fan headers for advanced cooling setups
Supports TPM 2.0 for enhanced security compatibility with Windows 11
Ideal for enthusiast gamers, overclockers, and content creators

Buy MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard from Ultra Technology

Get the MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard from Ultra Technology for ৳85,000 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from MSI, explore more MSI Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
