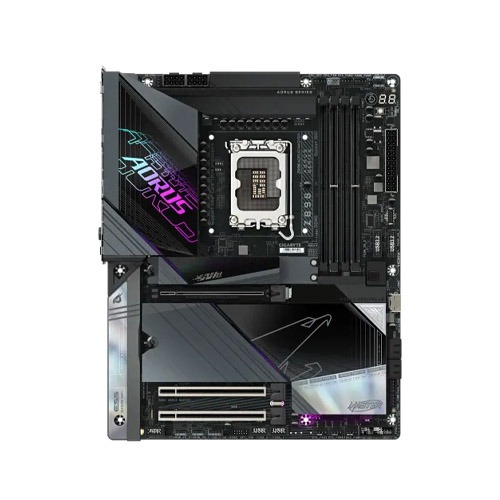

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
-10 %
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard
Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

Discontinued

  • Stock: Discontinued
  • Brand: Gigabyte
  • Model: Z890 AORUS MASTER

Key Features

  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9500(O.C)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 2 x (USB4 Type-C port Supports DisplayPort)
  • Features: 5x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Chipset Manufacturer Intel Z890 Chipset
Audio 1 x front panel audio header
2 x audio jacks
BIOS FEATURES 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software
Display Port (s) 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Slots 4 x DIMM
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Wireless Communication module Intel® Wi-Fi 7 BE200NGW
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Main Features
Supported CPU Intel Core Ultra Processors(Series 2)
Memory Specifications
Maximum Memory 256GB (64 GB single DIMM capacity) of system memory
Supported Memory Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
Connector & ports
HDMI 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
LAN Port (s) Marvell® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
Warranty Information
Warranty 3 Year Warranty

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard is a premium motherboard designed for high-performance computing, offering advanced features for gamers, content creators, and enthusiasts. Powered by the Intel Z890 chipset, this motherboard supports Intel Core Ultra Processors (Series 2) and provides a robust platform for overclocking and multitasking. With DDR5 memory support up to 256GB, it ensures superior memory bandwidth, enhancing system performance for demanding tasks.The motherboard features PCIe 5.0 for lightning-fast data transfer, alongside three M.2 connectors and SATA 6Gb/s connectors for expanding storage options. It supports RAID 0, 1, 5, and 10, allowing users to create high-performance storage configurations. Additionally, the inclusion of Wi-Fi 7 (Intel® Wi-Fi 7 BE200NGW) and Bluetooth 5.4 ensures fast, reliable wireless connectivity, including support for 2.4/5/6 GHz frequency bands.For graphics, the motherboard features Intel Thunderbolt™ 4 connectors and USB4® USB Type-C® ports, supporting resolutions up to 5120x2880@60Hz for Thunderbolt monitors and 3840x2160@240Hz for USB-C monitors, making it an excellent choice for high-resolution displays. It also includes an HDMI front port and Marvell® AQtion AQC113C 10GbE LAN for ultra-fast wired connections.The Realtek® ALC1220 CODEC and ESS ES9118 DAC chip deliver superior audio quality, with DTS:X® Ultra support for immersive sound experiences. The motherboard offers multiple expansion slots, including PCIe x16 slots, and features like RGB LED strip headers, system fan headers, and USB 3.2 Gen 2x2 support for a customizable and efficient setup.With a 3-year warranty, the Gigabyte Z890 AORUS MASTER WiFi7 is a top-tier motherboard built for cutting-edge performance and connectivity.

Features

  • Intel Z890 Chipset for high-performance and stability.
  • Supports Intel Core Ultra Processors (Series 2), providing powerful processing capabilities.
  • DDR5 memory support with up to 256GB of system memory for exceptional speed and performance.
  • PCIe 5.0 and PCIe 4.0 slots for ultra-fast data transfer and graphics support.
  • Wi-Fi 7 (Intel® Wi-Fi 7 BE200NGW) and Bluetooth 5.4 for seamless wireless connectivity.
  • 10GbE LAN (Marvell® AQtion) for ultra-fast wired networking.
  • Thunderbolt™ 4 and USB4® USB Type-C® for high-speed external device connectivity.
  • RAID support for NVMe SSD and SATA drives with RAID 0, 1, 5, and 10 options.
  • 5 M.2 connectors for extensive storage options.
  • Superior audio with Realtek® ALC1220 CODEC and ESS ES9118 DAC chip.
  • Multiple expansion slots for additional components like graphics cards or storage.
  • RGB LED headers and fan headers for a customizable and efficient system build.
  • Advanced cooling solutions with system fan and water cooling headers.
  • 3-year warranty ensuring reliability and long-term performance.
