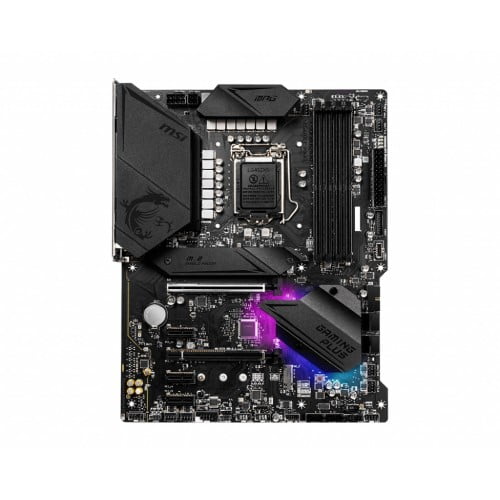

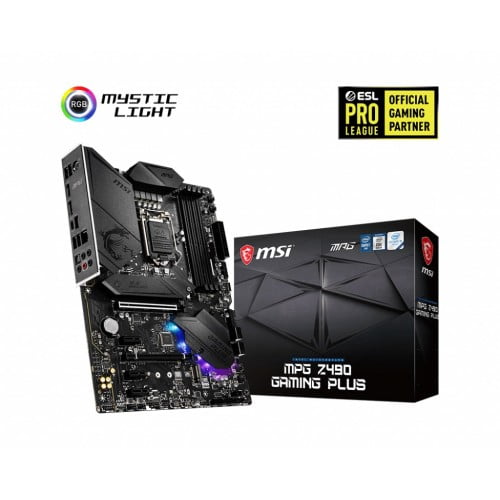

MSI MPG Z490 Gaming Plus ATX Motherboard

MSI MPG Z490 Gaming Plus ATX Motherboard
MSI MPG Z490 Gaming Plus ATX Motherboard
MSI MPG Z490 Gaming Plus ATX Motherboard
MSI MPG Z490 Gaming Plus ATX Motherboard
MSI MPG Z490 Gaming Plus ATX Motherboard
MSI MPG Z490 Gaming Plus ATX Motherboard
MSI MPG Z490 Gaming Plus ATX Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: MSI
  • Model: MPG-Z490-PLUS
  • SKU: MPG-Z490-PLUS

Discontinued

Add to Wish List Compare this Product

Key Features

    • Model: MPG Z490 Gaming Plus
    • Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
    • Supports DDR4 Memory, up to 4800(OC) MHz
    • Support Lightning Gen 4 Solution
    • Enhanced Power Design, Premium Thermal Solution
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket CPU (MAX SUPPORT): i9 SOCKET: 1200
Chipset Intel Z490 Chipset
Form Factor ATX Form Factor
Audio 7.1-Channel High-Definition Audio 1x front panel audio connector HD Audio Connectors
Expansion Slots
PCI 1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 3x PCIe x1 slots (from PCH)
M.2 Socket 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Memory
Type DDR4
Slots 4 x DDR4 memory slots
Supported Memory Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 4 x DDR4 memory slots, support up to 128GB
Graphics
Graphics 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

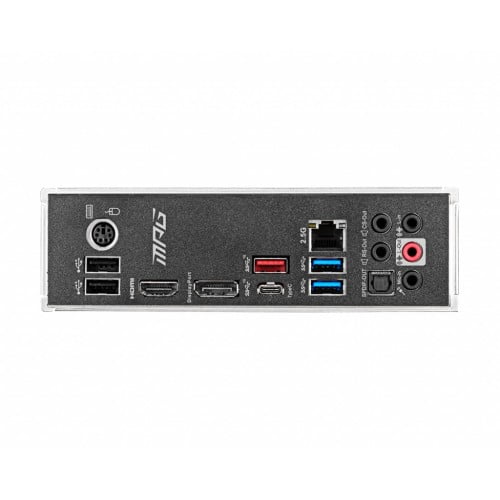

Connector & Ports
HDMI 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
Display Port (s) 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
USB (s) 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
LAN Port (s) 1x Realtek RTL8125B-CG 2.5G LAN Controller
Audio 7.1-Channel High-Definition Audio Supports S/PDIF output
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector
Warranty Information
Manufacturing Warranty 03 years warranty

MSI MPG Z490 Gaming Plus Motherboard

MSI MPG Z490 Gaming Plus Motherboard brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. In this motherboard, the LED strip that provides convenient in-game and real time notifications. The MPG series, transform your equipment into the center of attention and top leaderboards in style. The MSI MPG Z490 Gaming Plus Motherboard supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800(OC) MHz, Lightning Gen 4 Solution for the future. This motherboard also comes with Enhanced Power Design 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost. In this motherboard Premium Thermal Solution extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience. In this motherboard, it has 2.5G LAN with LAN Manager that upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Here the Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It is also Powered by Intel USB 3.2 Gen 2 controller; Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds. Here, the thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed with MSI motherboards.
