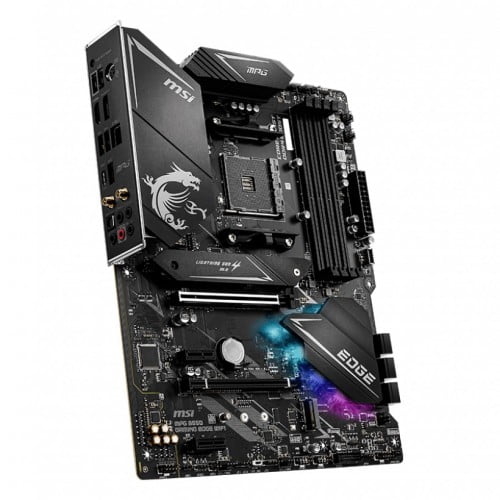

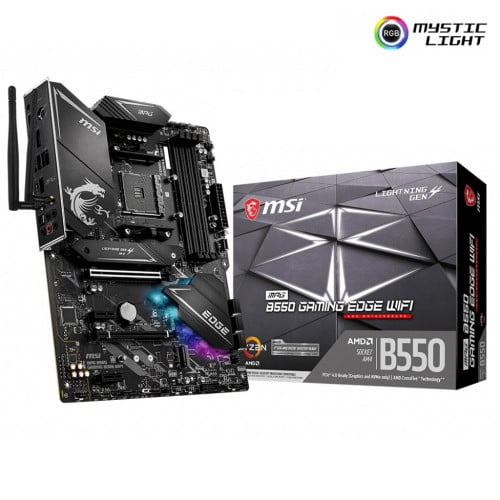

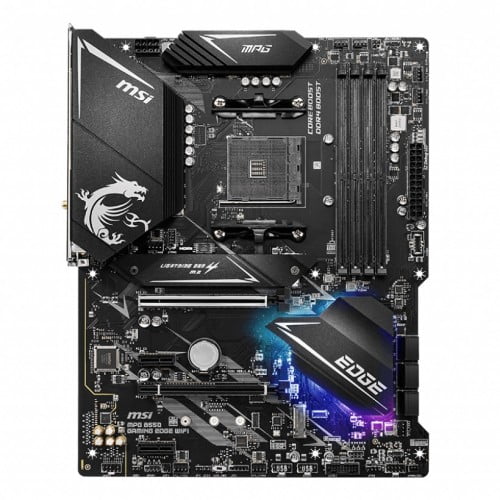

MSI MPG B550 Gaming Edge WiFi AM4 ATX Motherboard

Product ID: MPG-B550-WIFI
Customer rating: No reviews yet
Availability: Out of stock
Questions: 0 answered

1 / 4

Price on request — call 01771-833944 for today’s price.

Call for price

Key features

Full specs

ModelMSI MPG B550 Gaming Edge
ProcessorSupports 3rd Gen and Future Generation AMD Ryzen Processor
FeaturePremium Thermal Solution
FeatureLightning Fast Game experience

Free assembly & testing when you build a PC with our PC Builder.

From this brandMSI207 productsBrowse all →

Specifications

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

MSI MPG B550 Gaming Edge WiFi Motherboard

SPECIFICATIONS
Supported CPU	Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
Chipset	AMD B550 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Memory Type	Dual channel memory architecture
Slots	4 x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Mamory	128GB
Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Supports 2-Way AMD CrossFire Technology
Max Shared Memory	16 GB
HDMI	1x HDMI maximum resolution of 4096x2160 @24Hz
Display Port (s)	1x DisplayPort maximum resolution of 4096x2160 @60Hz

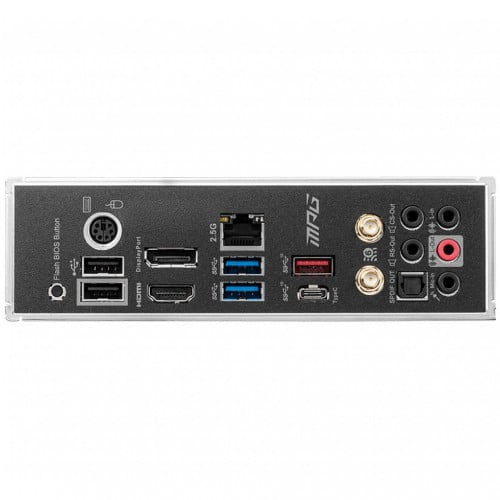

USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Audio	Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper
Manufacturing Warranty	03 Years Warranty
Special Features	Intel Wi-Fi 6 AX200: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.1

DESCRIPTIONS

MSI MPG B550 Gaming Edge WiFi Motherboard

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style. MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. MSI MPG B550 Gaming Edge WiFi Motherboard Higher efficiency makes your work easier. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

https://youtu.be/1vS5jyZ6mcc [ninja_tables id="47263"]

Buy MSI MPG B550 Gaming Edge WiFi AM4 ATX Motherboard from Ultra Technology

Get the MSI MPG B550 Gaming Edge WiFi AM4 ATX Motherboard from Ultra Technology and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from MSI, explore more MSI AMD Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
