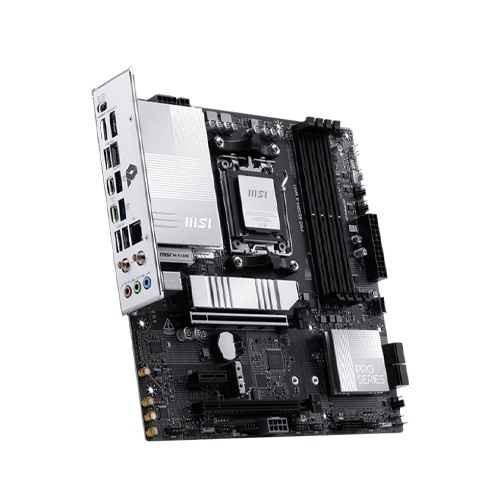

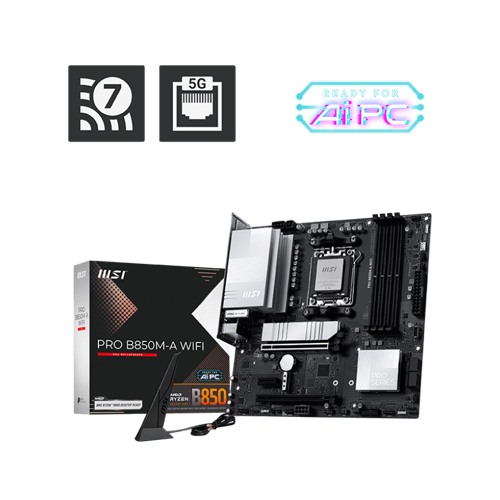

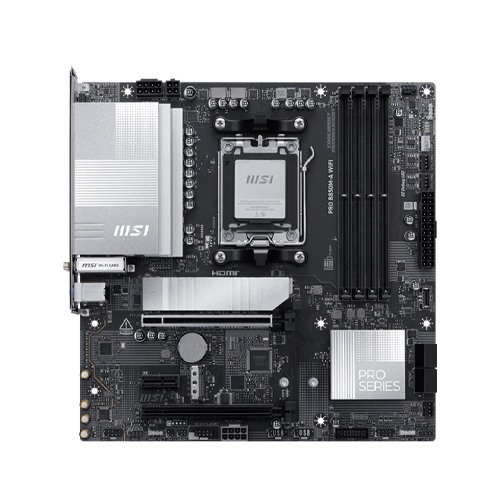

MSI PRO B850M-A WIFI AM5 mATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: PRO B850M-A WIFI
Key Features
- Supports AMD Ryzen 9000/8000/7000 CPUs
- DDR5 Memory up to 8200+ MHz (OC)
- PCIe 5.0 M.2 & 5G LAN support
- Built-in Wi-Fi 7 & USB 10Gbps
| General Information | |
| Chipset Manufacturer | AMD B850 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |

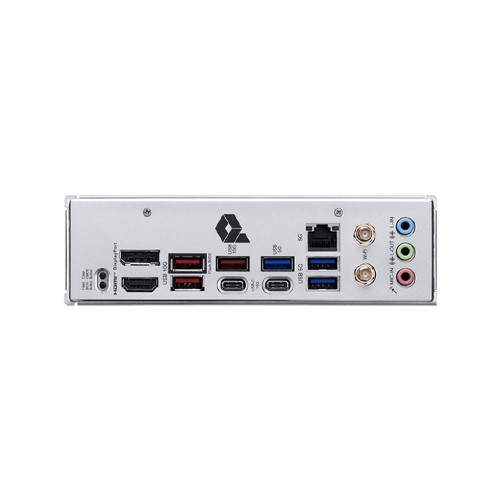

| BACK PANEL PORTS | Clear CMOS Button DisplayPort USB 10Gbps Type-A USB 10Gbps Type-A USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 5Gbps Type-A |
| I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LAN | Realtek® 8126VB 5G LAN |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Operating System | Support for Windows® 11 64-bit |
| PCB Form | mATX 243.84mmx243.84mm |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Slot | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| USB | 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Warranty Information | |
| Warranty | 3 Years |
MSI PRO B850M-A WIFI AM5 mATX Motherboard
The MSI PRO B850M-A WIFI AM5 mATX Motherboard is designed to deliver exceptional performance, stability, and connectivity for professionals and gamers. Powered by the latest AMD B850 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series processors, ensuring next-gen computing power through the AM5 socket. Whether you’re building a high-performance workstation or a compact gaming rig, this motherboard provides reliable support for the latest DDR5 memory, boasting speeds up to 8200+ MHz (OC) for maximum responsiveness.Engineered with dual M.2 slots—one supporting PCIe 5.0 x4 and another PCIe 4.0 x4—it allows ultra-fast storage, while 4x SATA 6G ports add versatility. Onboard Wi-Fi 7 and Bluetooth 5.4 ensure cutting-edge wireless connectivity, while the Realtek 8126VB 5G LAN guarantees ultra-fast, wired networking.With 1x HDMI 2.1 and 1x DisplayPort 1.4, users can enjoy stunning 4K visuals at 60Hz, and the support for PCIe Gen 5.0 graphics cards via x16 slot makes it future-ready for GPU upgrades. The board also features multiple USB 10Gbps Type-A and Type-C ports, ensuring fast data transfers and broad peripheral compatibility.Additional highlights include 7.1-channel HD audio (ALC897), EZ Debug LEDs, and ARGB lighting connectors, making installation and customization straightforward. With Windows 11 64-bit support, this board is ready to meet modern computing demands.If you’re looking for a feature-rich, compact, and professional-grade AM5 motherboard with Wi-Fi 7, PCIe 5.0, and DDR5 support, the MSI PRO B850M-A WIFI is the ideal choice for your next build.
Features
- Supports AMD Ryzen 9000/8000/7000 Series processors for future-ready performance
- Dual M.2 slots with PCIe Gen 5.0 & Gen 4.0 interface for ultra-fast NVMe SSDs
- DDR5 Memory support up to 8200+ MHz (OC) with Dual-Channel configuration
- Integrated Wi-Fi 7 and Bluetooth 5.4 for next-gen wireless connectivity
- Realtek 8126VB 5G LAN for high-speed wired networking
- 1x HDMI 2.1 & 1x DisplayPort 1.4 for crisp 4K 60Hz display output
- Multiple USB 10Gbps Type-A and Type-C ports for fast peripheral connectivity
- Robust PCIe 5.0 x16 slot for high-end graphics card compatibility
- 7.1-Channel HD Audio with Realtek ALC897 codec for immersive sound
- Compact mATX Form Factor with extensive internal headers and ARGB support
