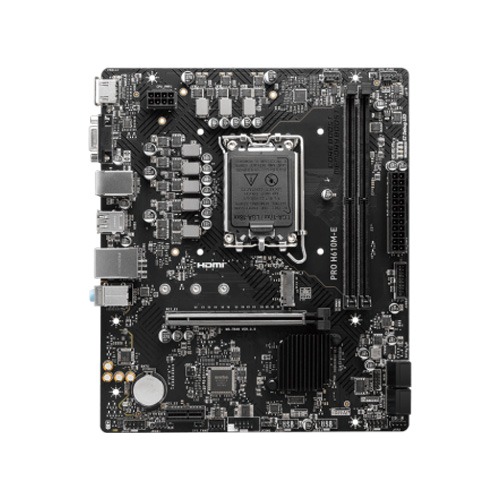

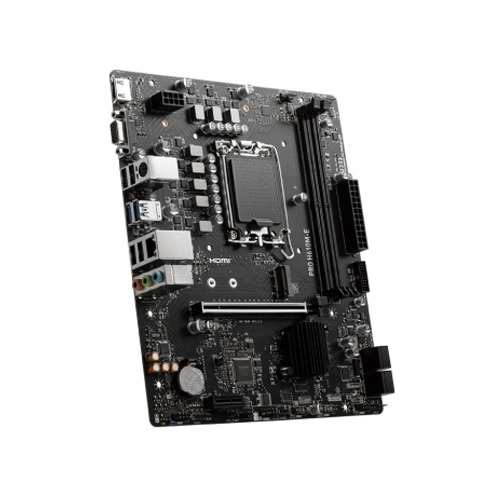

MSI PRO H610M-E DDR5 mATX MOTHERBOARD

Product ID: UT-11074
Customer rating: No reviews yet
Availability: In stock
Questions: 0 answered

1 / 4

All prices include VAT. 0% EMI from ৳875/mo on 29 banks.

Save ৳1,300 -11%৳10,500~~Was ৳11,800~~

Key features

Full specs

Supported CPU14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM2x DDR5, Max 96GB
Graphics Output1x HDMI, 1x VGA
Features1x M.2 slot, Realtek RTL8111H Gigabit LAN

0% EMI on credit cards of 29 banks — ৳875/mo for 12 months.
Online price saves you ৳1,300 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandMSI207 productsBrowse all →

Specifications

Key Specifications

Processor Type	Intel
Socket	LGA1700
Chipset	Intel H610
Form Factor	Micro ATX

RAM Type	DDR5
Maximum Memory	96GB
Features	M.2, RGB

Processor

Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron Processors LGA 1700

Memory

Memory	Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory

Expansion & Storage

Expansion Slots	PCI: 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) Slots: 2

Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

Graphics & Display

Onboard Graphics	Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Display Outputs	HDMI: 1x HDMI 1.4 with HDR port VGA (s): 1x VGA

Networking

LAN	Realtek RTL8111H Gigabit LAN

Audio

Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio 1x Front panel audio connector

Ports & Connectors

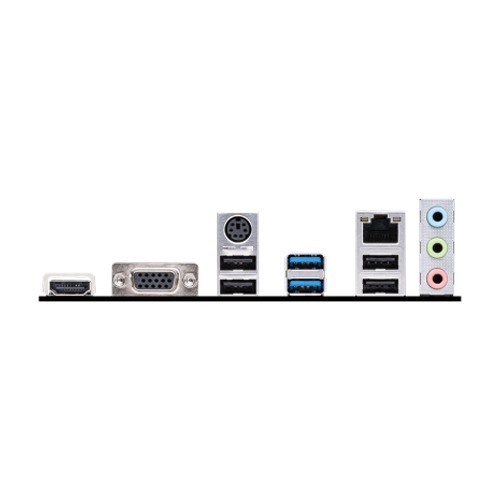

USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)

Internal Connectors	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports

Other Features

Special Features	TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0) 1x 4-pin RGB LED connector 4x EZ Debug LED

Warranty

Warranty	3 years

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

MSI PRO H610M-E DDR5 mATX MOTHERBOARD

MSI PRO H610M-E DDR5 mATX Motherboard is a budget-friendly yet powerful motherboard designed for users seeking efficient performance for everyday computing and light multitasking. It supports Intel Core 14th, 13th, and 12th Gen processors, including Intel Pentium Gold and Celeron processors, with an LGA 1700 socket. Built on the reliable Intel H610 chipset, this motherboard delivers consistent performance and versatility, making it an excellent choice for home or office use.Equipped with DDR5 memory support, the MSI PRO H610M-E allows up to 96GB of RAM, ensuring improved data transfer speeds and overall system responsiveness. It supports dual-channel memory architecture, non-ECC un-buffered memory, and Intel XMP 3.0 for seamless overclocking. With memory speeds reaching up to 5600 MHz, it handles daily workloads, multimedia editing, and basic gaming with ease.The motherboard provides a mATX form factor, which is compact yet feature-rich. For storage, it offers an M.2 slot supporting PCIe 3.0 x4 and SATA mode, along with four SATA 6Gb/s ports. This configuration ensures ample storage options with quick data access, suitable for modern workloads.For connectivity, the MSI PRO H610M-E features HDMI 1.4 and VGA ports, enabling support for up to 4K resolution with HDR and legacy display devices. Additionally, it includes USB 3.2 Gen1 and USB 2.0 ports for versatile device compatibility. The Realtek RTL8111H Gigabit LAN ensures fast and reliable network connections for seamless online activities.Special features like EZ Debug LEDs aid in troubleshooting, while the RGB LED connector lets users customize the system's lighting. Backed by a 3-year warranty, the MSI PRO H610M-E DDR5 mATX Motherboard is a reliable, cost-effective choice for building a high-performing system for daily computing needs.

Features

Processor Support: Compatible with Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors (LGA 1700 socket).
Memory Support: Up to 96GB DDR5 memory with dual-channel architecture and speeds up to 5600MHz.
Storage Options: Includes 1x M.2 slot (PCIe 3.0 x4) and 4x SATA 6Gb/s ports.
Graphics Output: HDMI 1.4 (supports 4K 30Hz HDR) and VGA output for legacy devices.
Audio System: Realtek ALC897 Codec delivering 7.1-channel high-definition audio.
Connectivity: Features 2x USB 3.2 Gen1 Type-A, 4x USB 2.0 at the rear, and more via internal headers.
LAN: Integrated Realtek RTL8111H Gigabit LAN for fast and stable internet connectivity.
Compact Design: mATX form factor, ideal for compact system builds with efficient layout.
Additional Features: EZ Debug LED for troubleshooting and RGB LED connector for system customization.
Warranty: Comes with a 3-year manufacturing warranty.

Buy MSI PRO H610M-E DDR5 mATX MOTHERBOARD from Ultra Technology

Get the MSI PRO H610M-E DDR5 mATX MOTHERBOARD from Ultra Technology for ৳10,500 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from MSI, explore more MSI Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.

Reviews 0

★★★★★No reviews yetBought the MSI PRO H610M-E? Share your experience to help other buyers.

Be the first to review this productYour review helps other customers choose with confidence.

Questions 0

No questions yetNot sure about compatibility, warranty or delivery? Ask — our team answers within 24 hours.

Common questions

Does this come with an official warranty?

Yes — 3 years. Claims are handled at our RMA & Service Center, Suite 1413, Multiplan Center.

Can I buy this on EMI?

Yes, EMI is available with credit cards of our partner banks on orders over ৳5,000. Tap “View more” under Promotional information to see the monthly amounts.

Is it available at the showroom right now?

Yes — it's in stock at our Multiplan Center showroom (Level 5). Call 01771-833944 to hold one.

How long does delivery take?

Inside Dhaka within 24 hours; outside Dhaka 2–3 working days by courier.

Is it brand new and sealed?

Yes — every unit is brand new in its original sealed box, with the invoice.

Do you give a better price on bulk orders?

Yes — for corporate or bulk orders call 01898-883492 for a quote.
