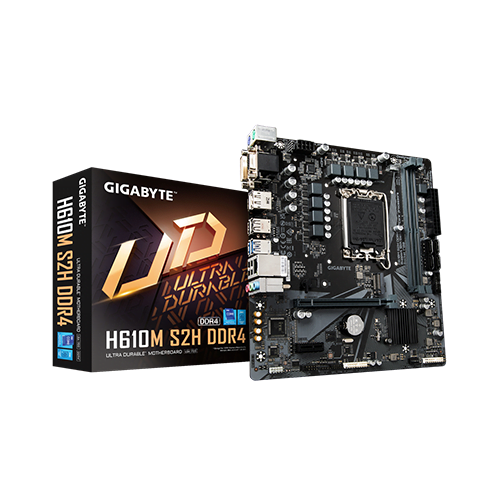

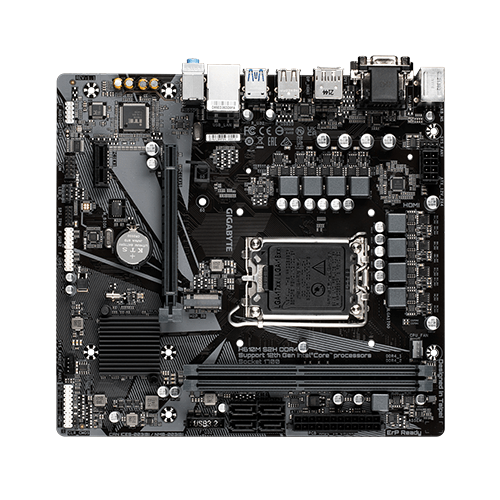

GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD

GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD
GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD
GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD
-21 %
GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD
GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD
GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD
GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD
Based on 0 reviews. - Write a review
11,000৳
14,000৳
Ex Tax: 11,000৳
EMI starts at 3,857৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: H610M-S2H
  • SKU: H610M-S2H
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Key Features

    • CPU Socket Type: LGA 1700
    • Motherboard Chipset: H610
    • Audio: Realtek Audio CODEC
    • Form Factor: Micro ATX
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel H610 Express Chipset
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Supported CPU LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors L3 cache varies with CPU
Generel information
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Slots 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard
USB port Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Graphics Specifications
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version.
Connector & ports
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Supported Storage Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
Warranty Information
Warranty 03 Years

GIGABYTE H610M S2H DDR4 MOTHERBOARD

GIGABYTE H610M S2H DDR4 MOTHERBOARD with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Realtek Gaming LAN, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 6. The maximum memory capacity on the H610 motherboard is 64 GB. The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, the total memory capacity is 64GB, which was only available on High-End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive applications such as rendering and video editing. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers versions.GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. [ninja_tables id="47232"]
