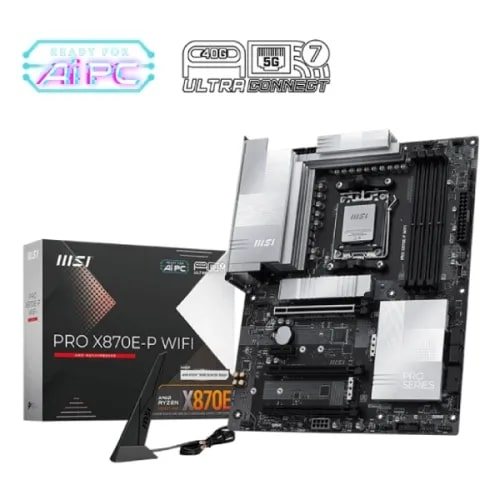

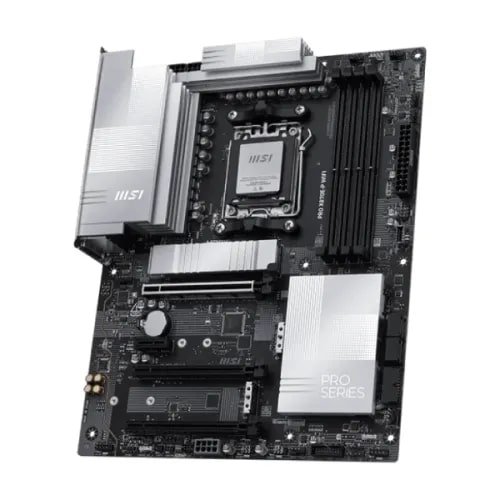

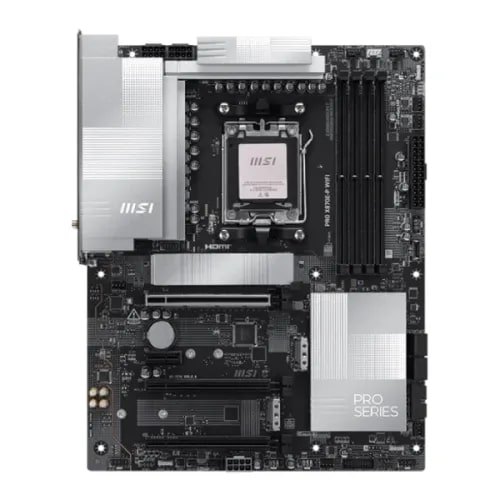

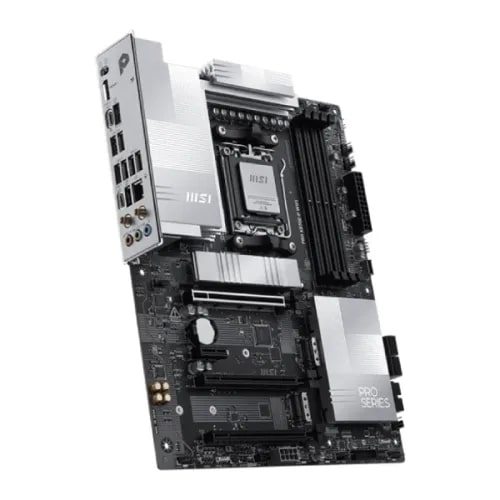

MSI PRO X870E-P WIFI AM5 ATX Motherboard

MSI PRO X870E-P Motherboard

MSI PRO X870E-P WIFI AM5 ATX Motherboard is designed for professionals and gamers who demand high performance, superior connectivity, and robust reliability. Powered by the AMD X870E chipset and supporting the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, this motherboard provides exceptional processing power and next-generation compatibility.

Processor and Chipset Support

This motherboard is built on the AM5 socket, ensuring compatibility with AMD’s most advanced CPUs. It supports the Ryzen 9000, 8000, and 7000 Series desktop processors, delivering top-tier performance for intensive multitasking, gaming, and content creation. The AMD X870E chipset ensures efficient communication between components, optimizing system responsiveness and stability.

Memory and Storage

The MSI PRO X870E-P supports DDR5 memory technology with four UDIMM slots, allowing up to 256GB of system memory. With overclocking speeds reaching 8200+ MT/s, it ensures exceptional memory bandwidth for high-end workloads. The board supports Dual-Channel mode, AMD EXPO, and memory overclocking, giving users the flexibility to fine-tune performance.

For storage, it includes three M.2 slots and four SATA 6Gb/s ports, accommodating both PCIe 5.0 and PCIe 4.0 NVMe SSDs. The M.2_1 slot supports PCIe 5.0 x4 for lightning-fast data transfer speeds, while RAID configurations (0, 1, 5, 10) are supported for both SATA and NVMe drives, ensuring data redundancy and performance optimization.

Expansion and Graphics Support

The motherboard features three PCIe x16 slots and one PCIe x1 slot, supporting PCIe 5.0 for the primary GPU slot. Depending on the installed CPU, it dynamically adjusts lane allocation to ensure maximum efficiency.

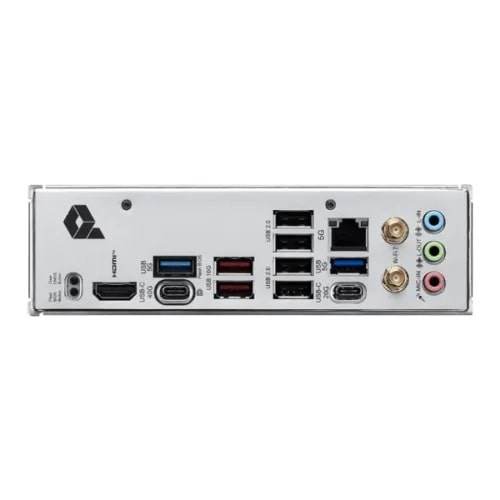

For graphics output, the board offers 1x HDMI 2.1 port and 1x Type-C DisplayPort, both capable of 4K 60Hz output, making it ideal for high-resolution displays and professional content creation setups.

Connectivity and Networking

Connectivity is one of the standout features of the MSI PRO X870E-P WIFI. It includes multiple USB ports across different speeds—ranging from USB 2.0 to 40Gbps Type-C—providing extensive support for peripherals and storage devices.

Networking capabilities are equally impressive, featuring Realtek 8126VB 5G LAN and Wi-Fi 7 with Bluetooth 5.4, MU-MIMO, and 6GHz support. This combination ensures ultra-fast, stable wired and wireless connections, perfect for gaming, streaming, or data-intensive workloads.

Audio and Additional Features

Equipped with a Realtek ALC897 7.1-channel audio codec, this motherboard delivers crystal-clear, high-definition sound for immersive gaming and multimedia experiences.

Additional highlights include EZ Debug LEDs, EZ Memory Detection LED, and ARGB/RGB headers for customizable lighting setups. Multiple fan headers and a dedicated Pump Fan connector ensure optimal cooling and system stability under heavy loads.

Conclusion

The MSI PRO X870E-P WIFI AM5 ATX Motherboard blends cutting-edge technology with practical features to meet the needs of enthusiasts and professionals alike. From advanced DDR5 memory support and PCIe 5.0 compatibility to next-gen Wi-Fi 7 and robust power design, it’s a future-ready platform built for performance, reliability, and efficiency.
