MSI PRO Z690-A DDR4 LGA 1700 ATX Motherboard

-100 %

MSI PRO Z690-A DDR4 LGA 1700 ATX Motherboard

Based on 0 reviews. - Write a review

Discontinued

Stock: Discontinued
Brand: MSI
Model: Z690-A-AM
SKU: Z690-A-AM

Discontinued

Add to Wish List Compare this Product

Key Features

- ATX Form Factor
- Intel Z690 Chipset
- LGA 1700 Socket
- 4 x Dual-Channel DDR4-5200

View more details

Chat Through

Messenger

Contact for Bulk Quantity: 01771833944

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

General Information

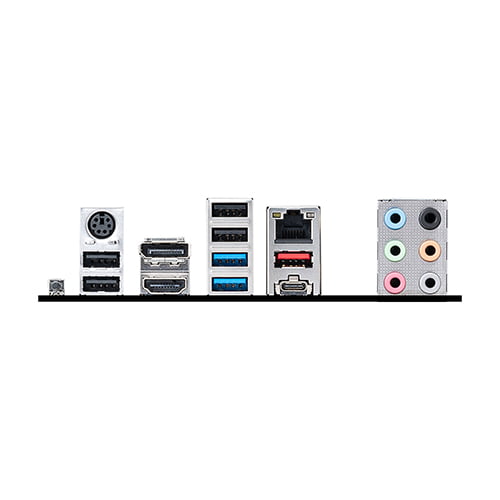

External I/O Ports	1 x DisplayPort 1 x HDMI 1 x Flash BIOS Button 1 x LAN (RJ45) 6 x Audio Jacks 1 x PS/2 Keyboard/Mouse Comb o 1 x USB 3.2 Gen 2x2 Type-C 1 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1
LAN	LAN Chipset Intel I225-V Max LAN Speed 10/100/1000/2500Mbps
M.2	3 x M.2 Gen 4 x4 64Gbps slots 1 x M.2 Gen 3 x4 32Gbps slot
Memory	Number of Memory Slots 4×288pin (DDR5) Memory Standard DDR4 5200+ (OC) Maximum Memory Supported 128GB Channel Supported Dual Channel
Slots	PCI Express 5.0 x16 1 x PCI Express 5.0 x16 PCI Express 3.0 x16 2 x PCI Express 3.0 x16 PCI Express x1 1 x PCI Express 3.0 x1 Supported Storage SATA 6Gb/s 6 x SATA 6Gb/s
Main Features
Audio	Audio Chipset Realtek ALC897 Audio Channels 7.1 Channels
Chipset	Intel Z690
Form Factor	ATX
Supported CPU	CPU Socket Type LGA 1700 * Dedicated LGA1700 mounting bracket is required. CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
Graphics Specifications
Graphics Memory	Supported only by CPU with integrated graphic
Warranty Information
Warranty	03 Years

MSI PRO Z690-A Motherboard

MSI PRO Z690-A Motherboard featuring an LGA 1700 socket and Z690 chipset, this MSI PRO Z690-A DDR4 Motherboard is compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors. Install up to 128GB of dual-channel RAM across four DDR4 memory slots, with speeds up to 5200 MHz supported via overclocking. Four M.2 and six SATA III connectors accommodate storage drives, while a PCIe 5.0 x16 slot, two PCIe 3.0 x16 slots, and a PCIe 3.0 x1 slot can be used to install various adapter cards. This Z690-A DDR4 Motherboard also supports AMD CrossFireX for multi-GPU setups.Connect accessories via a USB 3.2 Gen 2x2 Type-C port, plus one USB 3.2 Gen 2, two USB 3.2 Gen 1, and four USB 2.0 Type-A ports on the rear I/O panel. An RJ45 port is also present, supporting wired 2.5 Gigabit Ethernet connections. Connect to monitors via the HDMI or DisplayPort outputs. Internal headers provide connections for liquid or air cooling, dual CPU power, a TPM module, chassis intrusion alarm, and more. Relying on the Realtek ALC897 Audio Codec, the Z690-A DDR4 Motherboard supports 8-channel audio. [ninja_tables id="47210"]
