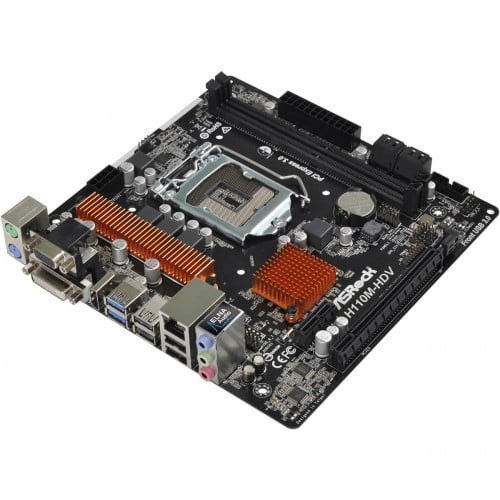

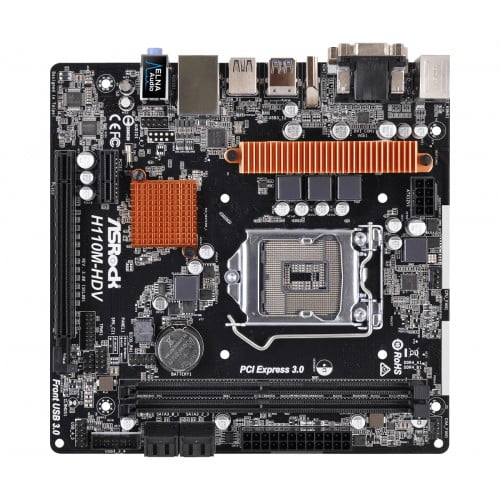

Asrock H110M-HDV R3.0 Super Alloy Micro ATX Motherboard

Asrock H110M-HDV R3.0 Motherboard Description

Asrock H110M-HDV R3.0 Motherboard supports 7th and 6th Generation. Intel Core Processors (Socket 1151) and 4 Power Phase design and also supports CPU up to 95W with Intel Turbo Boost 2.0 Technology. Here use the Intel H110 Chipset. This Exclusive Motherboard has 7.1 CH HD Audio (Realtek ALC887 Audio Codec). ELNA Audio Caps, 4 SATA3 with 4 USB 3.1 Gen1 (2 Front, 2 Rear). Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm with Solid Capacitor design. Asrock H110M-HDV R3.0 Motherboard Dual Channel DDR4 Memory Technology (2 x DDR4 DIMM Slots) with supports DDR4 2400/2133 non-ECC, un-buffered memory, ECC UDIMM memory modules (operate in non-ECC mode), Intel Extreme Memory Profile (XMP) 2.0 and max. 32GB memory. This Motherboard also supports 64Mb AMI UEFI Legal BIOS with multilingual GUI, ACPI 5.0 Compliant wake up events with DRAM, PCH 1.0V Voltage Multi-adjustment, SMBIOS 2.7 Support. The Asrock H110M-HDV R3.0 motherboard supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530/630 Graphics with Pixel Shader 5.0, DirectX 12, HDMI with max. resolution up to 4K x 2K (4096x2160) 24Hz / (3840x2160) 30Hz, DVI-D with max. resolution up to 1920x1200 at 60Hz, D-Sub with max. Resolution up to 1920x1200 at 60Hz, Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required), Accelerated Media Codecs: HEVC, VP8, VP9, HDCP with DVI-D and HDMI Ports and Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports. It's Motherboard Graphics card Max. shared memory is 1024MB. In this Motherboard, there are three graphics output options, these are - D-Sub, DVI-D and HDMI. It supports Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit operating system. This AsRock Motherboard has some special features , that make it different from others; It's Unique features are ASRock Super Alloy, High Density Glass Fabric PCB, AsRock Full Spike Protection and AsRock Live Update & APP Shop.
