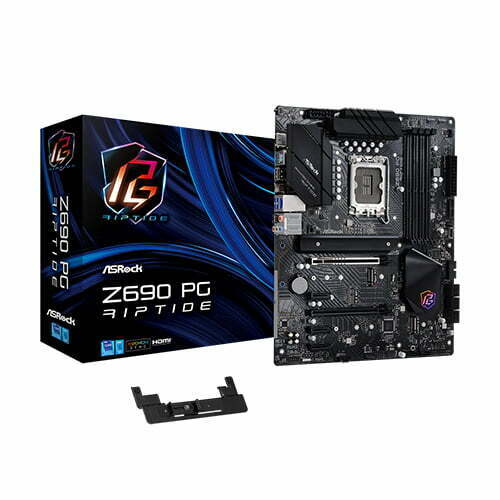

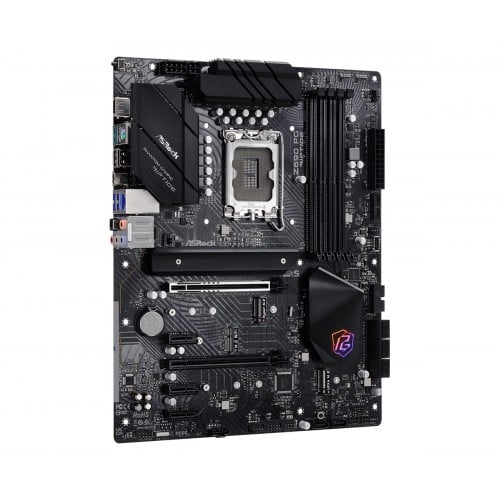

ASRock Z690 PG Riptide 12th Gen ATX Motherborad

Product ID: Z690P
Customer rating: No reviews yet
Availability: Out of stock
Questions: 0 answered

1 / 3

All prices include VAT. 0% EMI from ৳2,242/mo on 29 banks.

Save ৳600 -2%৳26,900~~Was ৳27,500~~

Key features

Full specs

PlatformSupports 12th Gen Intel Core Processors (LGA1700)
1 M.2 Key-E for WiFi; Graphics OutputHDMI
Feature13 Phase Dr.MOS Power Design
MemorySupports DDR4 4800MHz (OC)

0% EMI on credit cards of 29 banks — ৳2,242/mo for 12 months.
Online price saves you ৳600 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandASRock94 productsBrowse all →

Specifications

Key Specifications

Processor Type	Intel
Socket	LGA1700
Chipset	Intel Z690
Form Factor	ATX

RAM Type	DDR4
Maximum Memory	128GB
Features	M.2, USB Type-C

Processor

Supported CPU	Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 13 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology

Memory

Memory	Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0

Expansion & Storage

Expansion Slots	PCI: 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3)) - 3 x PCIe Gen3x1 Slots - Supports AMD CrossFire Slots: 4 x DDR4 DIMM Slots

Storage

M.2 Socket: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) Supported Storage: 8 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

Graphics & Display

Onboard Graphics	Intel Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

Display Outputs	1 x HDMI Port

Networking

LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE

Wireless	Supports ECC UDIMM memory modules (operate in non-ECC mode)

Audio

Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Gold Audio Jacks - Nahimic Audio

Ports & Connectors

USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

Internal Connectors

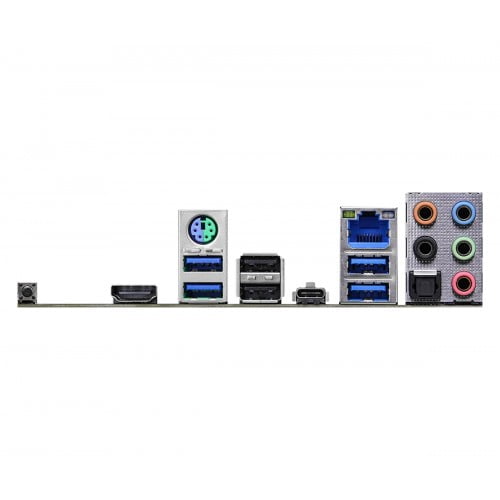

3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)* - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Other Features

BIOS	256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

Warranty

Warranty	3 years

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

ASRock Z690 PG Riptide Motherborad

ASRock Z690 PG Riptide Motherborad supports 12th Gen Intel Core Processors (LGA1700), 13 Phase Dr.MOS Power Design, DDR4 4800MHz (OC). This Motherboard featured with 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi, Graphics Output Options: HDMI, Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio, 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4). This ASRock motherboard also has 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 USB 3.2 Gen2x2 Rear Type-C, 2 USB 3.2 Gen2 (Rear), 1 USB 3.2 Gen1 Front Type-C, 6 USB 3.2 Gen1 (2 Rear, 4 Front), Killer E3100 2.5G LAN, Lightning Gaming Ports. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. Killer Ethernet E3100 In this motherboard, the Killer E3100 2.5 Gbps Ethernet controller is designed specifically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provide the ultimate networking experience for gaming and multimedia applications. Nahimic Audio This motherboard featured comes with via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio, that offers you the most engaging listening experience, vibrant and rich with details. Lightning Gaming Ports The ASRock Z690 PG Riptide has Lightning Gaming Ports. These Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high-speed mice/ keyboard with the lower jitter and latency. POLYCHROME RGB In this ASRock 12th Gen motherboard, the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects also. [ninja_tables id="47224"]

Buy ASRock Z690 PG Riptide 12th Gen ATX Motherborad from Ultra Technology

Get the ASRock Z690 PG Riptide 12th Gen ATX Motherborad from Ultra Technology for ৳26,900 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from ASRock, explore more ASRock Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
