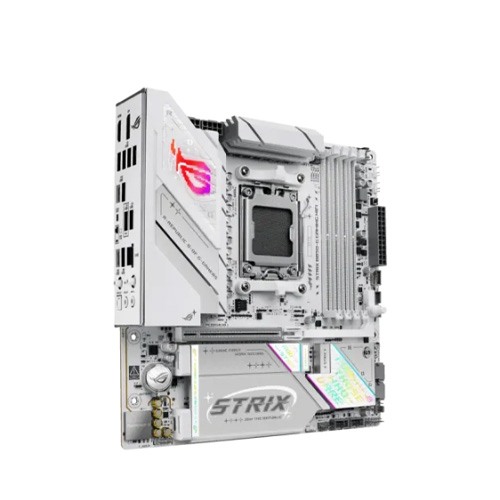

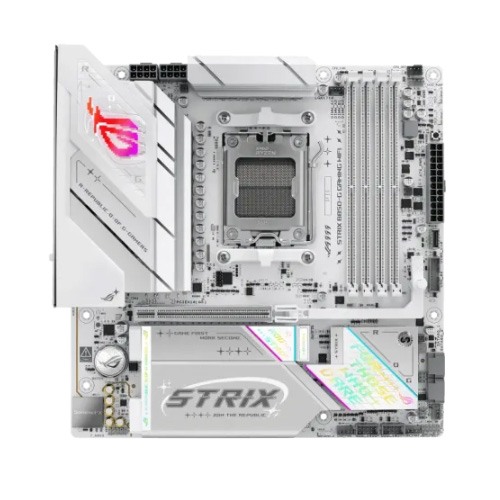

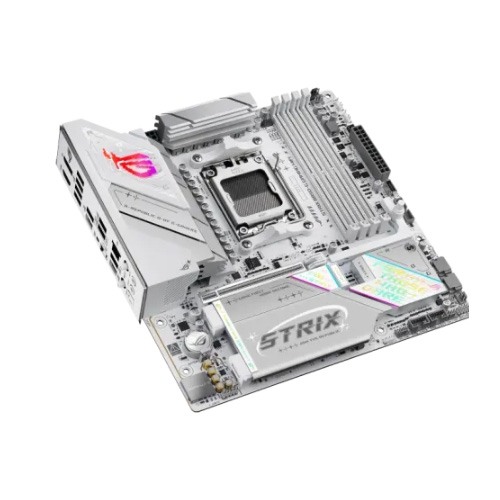

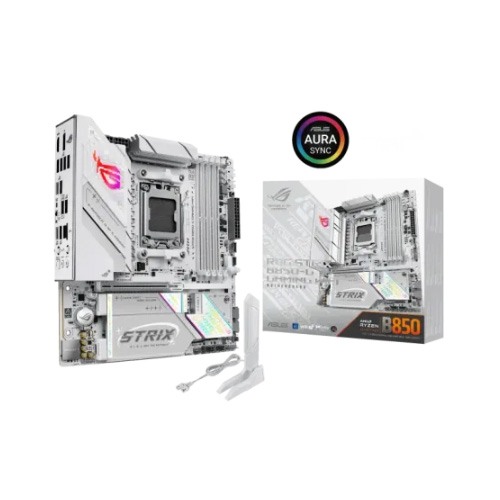

Asus ROG STRIX B850-G GAMING WIFI mATX Motherboard
- Stock: In Stock
- Brand: Asus
- Model: ROG STRIX B850-G GAMING WIFI
Key Features
- Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
- Supported RAM: 4x DDR5, up to 256GB, 8000+ MT/s (OC)
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Intel2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
| General Information | |
| Type | DDR5 |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst ASUS AI Advisor ASUS DriverHub - AIDA64 Extreme (60 days free trial) - HWiNFO ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Display Port (s) | 1x DisplayPort 1.4 |
| Graphics | 1 x DisplayPort* 1 x HDMI™ port** - Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 ** Supports 4K@60Hz as specified in HDMI 2.1 *** VGA resolution support depends on processors' or graphic cards' resolution. |
| M.2 Socket | 4 x M.2 |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports PCIe 4.0 x8/x4 mode) *Specifications vary by CPU types. |
| RAID | AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 *Specifications vary by CPU types. |
| Slots | 4 x DIMM |
| Special Features | Extreme Engine Digi+ - 5K metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen2 headers |
| Wireless Communication module | Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |
| Main Features | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD B850 |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Memory Specifications | |
| Maximum Memory | 256GB |
| Supported Memory | Supports up to 8000+MT/s (OC) with Ryzen™ Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
| Connector & ports | |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4) on the underside of the board 2 x SATA 6Gb/s ports *Specifications vary by CPU types. |

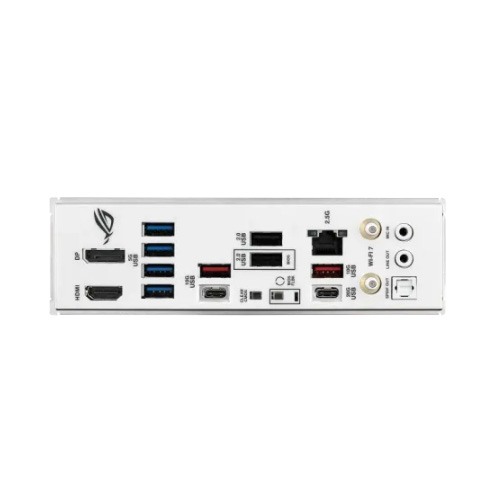

| USB (s) | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (1 x USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports *USB Type-C power delivery output: max. 5V/3A |
| Warranty Information | |
| Warrantty | 3 Years Warranty |
Asus ROG STRIX B850-G GAMING WIFI mATX Motherboard
Asus ROG STRIX B850-G Motherboard is engineered for gamers and PC enthusiasts who demand high performance, reliability, and advanced connectivity in a compact form factor. Designed around the latest Intel® B850 chipset, this motherboard supports the newest Intel® Core™ processors, ensuring smooth multitasking, fast gaming, and future-ready performance. Its mATX size makes it perfect for space-conscious builds without compromising on power or features. Built with the signature ROG STRIX gaming aesthetics, it combines sleek design, customizable RGB lighting, and premium components for both style and durability. The robust 12+1 power phase design ensures stable overclocking and long-term reliability, while advanced cooling solutions—featuring multiple fan headers and AI cooling—help maintain optimal system temperatures during intense gaming sessions. For connectivity, the ROG STRIX B850-G shines with WiFi 6E and 2.5Gb Ethernet, delivering ultra-fast, low-latency networking for seamless online gaming and streaming. With PCIe 5.0 support, users can take advantage of next-gen GPUs and storage devices, ensuring lightning-fast data transfer and future-proof upgrade potential. Additionally, multiple M.2 slots with heatsinks provide high-speed SSD support, enhancing storage performance and longevity. On the audio front, ROG’s SupremeFX audio technology delivers crystal-clear, immersive sound, elevating your gaming and entertainment experience. The motherboard also features USB 3.2 Gen 2x2 Type-C, providing ultra-fast data transfer and versatile connectivity.
Power-Packed Performance
At the core of the Asus ROG STRIX B850-G is the latest Intel® B850 chipset, which ensures compatibility with the newest Intel® Core™ processors. This means you can enjoy smooth multitasking, fast gaming, and future-ready performance without any hiccups. The robust 12+1 power phase design ensures stable overclocking, allowing you to push your system to its limits without compromising on reliability.
Compact Form Factor, Big Features
Despite its compact mATX size, the Asus ROG STRIX B850-G doesn't skimp on features. Built with the signature ROG STRIX gaming aesthetics, this motherboard combines sleek design, customizable RGB lighting, and premium components for a stylish and durable build. Multiple fan headers and AI cooling solutions keep your system running at optimal temperatures, even during intense gaming sessions.
Seamless Connectivity
When it comes to connectivity, the Asus ROG STRIX B850-G excels. With WiFi 6E and 2.5Gb Ethernet support, you can enjoy ultra-fast, low-latency networking for seamless online gaming and streaming. PCIe 5.0 support ensures compatibility with next-gen GPUs and storage devices, guaranteeing lightning-fast data transfer speeds and future-proof upgrade potential. Multiple M.2 slots with heatsinks provide high-speed SSD support, enhancing storage performance and longevity.
Immersive Audio Experience
ROG's SupremeFX audio technology ensures crystal-clear, immersive sound, elevating your gaming and entertainment experience to new heights. Whether you're gaming, streaming, or watching movies, you'll appreciate the superior audio quality delivered by the Asus ROG STRIX B850-G.
Versatile Connectivity Options
The Asus ROG STRIX B850-G also boasts USB 3.2 Gen 2x2 Type-C connectivity, providing ultra-fast data transfer speeds and versatile connectivity options for all your peripheral devices. Whether you're connecting external storage, gaming peripherals, or VR headsets, you'll appreciate the convenience and speed of the USB 3.2 Gen 2x2 Type-C port.
