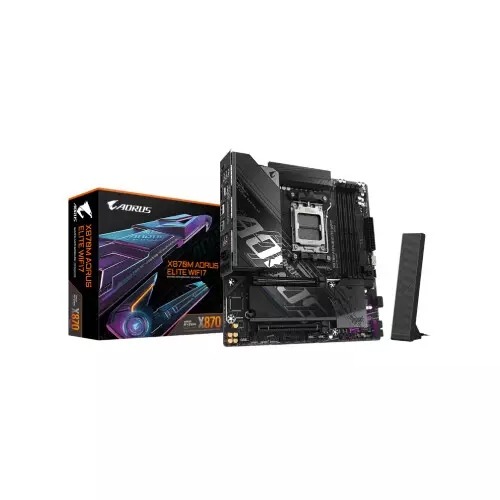

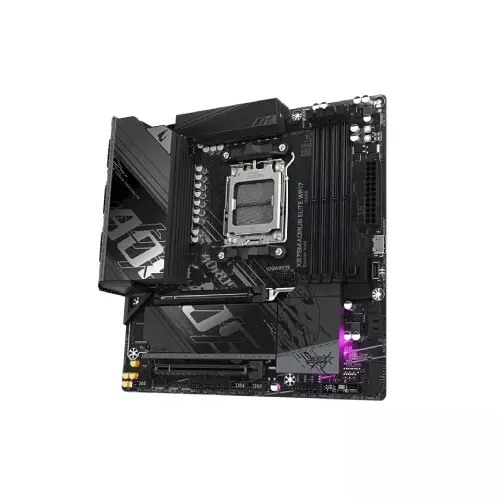

Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard

Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
-16 %
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Gigabyte X870M AORUS ELITE WIFI 7 Micro ATX AM5 Motherboard
Special Price: 39,000৳
Regular Price: 46,500৳
39,000৳
46,500৳
Ex Tax: 39,000৳
EMI starts at 13,676৳/month. View all 27 banks EMI plans >
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: X870M A ELITE WF7

Key Features

  • Supported CPU: AMD Socket AM5
  • Form Factor: Micro ATX
  • Memory Max.: supporting up to 256 GB
  • Ram Type: DDR5
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Audio Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Back Panel Connectors 1 x Clear CMOS button
1 x Q-Flash Plus button
1 x HDMI port*
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB4® USB Type-C® ports (DisplayPort*)
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Bios Information 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software Norton® Internet Security (OEM version)
Chipset Model AMD X870
CPU AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.
Operating System Support for Windows 11 64-bit
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0 and RAID 1 support for SATA storage devices
USB CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Wireless Communication module Realtek® Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Physical Specification
Expansion Slots x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Warranty Information
Warranty 3 Years

Gigabyte X870M AORUS ELITE Motherboard

Gigabyte X870M AORUS ELITE WIFI 7 is a powerful Micro ATX motherboard built for next-generation AMD Ryzen processors. Powered by the AMD X870 chipset and AM5 socket, it delivers cutting-edge performance, advanced connectivity, and rock-solid stability for gamers, creators, and PC enthusiasts who want premium features in a compact form factor.

Processor & Chipset Support

This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors, ensuring long-term platform longevity. The AMD X870 chipset unlocks high-speed PCIe 5.0 support, enhanced power delivery, and next-level expansion for modern GPUs and ultra-fast storage.

Memory Performance

With four DDR5 DIMM slots, the X870M AORUS ELITE WIFI 7 supports up to 256GB DDR5 memory and overclocked speeds up to 8200 MT/s. It is compatible with AMD EXPO™ and Intel XMP profiles, making memory tuning easy while delivering excellent multitasking and gaming performance.

Graphics & Display Connectivity

Integrated AMD Radeon™ Graphics support enables versatile display output. Dual USB4 Type-C ports support DisplayPort 1.4 with resolutions up to 4K@240Hz, while HDMI 2.1 ensures smooth 4K visuals on compatible displays. This makes the board ideal for both productivity and entertainment setups.

Expansion & Storage

The motherboard features a PCIe 5.0 x16 slot for high-end graphics cards and a secondary PCIe 4.0 slot for expansion. Storage options include two M.2 slots (one PCIe 5.0, one PCIe 4.0) and two SATA 6Gb/s ports, with support for multiple RAID configurations for speed or redundancy.

Networking & Audio

Enjoy ultra-fast connectivity with 2.5GbE LAN and Wi-Fi 7 with Bluetooth 5.4, delivering lower latency and higher bandwidth. Premium audio is handled by the Realtek ALC1220 codec, supporting immersive 7.1-channel HD audio and optical S/PDIF output.

Cooling, BIOS & Build Quality

Multiple fan and pump headers, smart hardware monitoring, and robust thermal design keep your system cool under load. Features like Q-Flash Plus, Clear CMOS, and AMI UEFI BIOS ensure easy updates and system tuning.
