ASROCK X870 STEEL LEGEND WIFI AMD X870 Chipset ATX Motherboard
-7 %
ASROCK X870 STEEL LEGEND WIFI AMD X870 Chipset ATX Motherboard
- Stock: In Stock
- Brand: ASRock
- Model: X870 Steel Legend WiFi
Key Features
- Supported CPU: Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, Up to 8000+(OC), Max 256GB
- Graphics Output: 1 x HDMI 2.1, 2 x USB4, Support HDCP 2.3 and max
- Features: 2.5G LAN, 802.11be Wi-Fi 7 Module, Bluetooth 5.4
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
| General Information | |
| Chipset Manufacturer | AMD X870 |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio |
| BIOS Type | 256Mb AMI UEFI Legal BIOS with GUI support |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 8 Layer PCB |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* * Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics. |
| M.2 Socket | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Maximum Memory Supported | 256GB |
| Memory Type | Dual Channel DDR5 Memory Technology |
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. Supports NVMe SSD as boot disks |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Audio 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
| Slots | 4 x DDR5 DIMM Slots |
| Special Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Wireless Communication module | 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO * Wi-Fi 7 (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
| Main Features | |
| Supported CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Memory Specifications | |
| Supported Memory | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Connector & ports | |
| HDMI | 1 x HDMI Port |

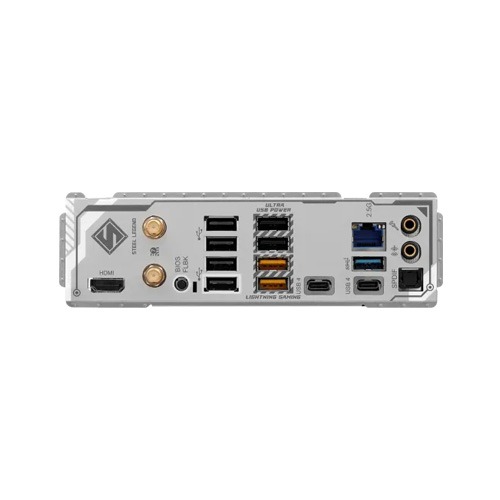

| Internal I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.) 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging 1 x Thermistor Cable Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
| LAN Port (s) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. |
| USB (s) | CPU: - 2 x USB4 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3)) - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4)) - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection |
| Warranty Information | |
| Warranty | 3 Years |
ASROCK X870 STEEL LEGEND WIFI AMD X870 Chipset ATX Motherboard
ASRock X870 Steel Legend WiFi AMD X870 Chipset ATX Motherboard is designed for performance and durability, offering an exceptional foundation for AMD Ryzen™ 7000, 8000, and 9000 series processors with its Socket AM5. The motherboard is built with an AMD X870 chipset and an 8-layer PCB for superior stability and robust performance. It features dual-channel DDR5 memory support, with speeds reaching up to 8000+ MHz (OC), and supports up to 256GB of memory, making it ideal for both gaming and content creation setups.This motherboard comes equipped with PCIe 5.0 and PCIe 4.0 slots, ensuring high-speed data transfer and support for the latest GPUs. With three M.2 slots and multiple SATA connectors, users have ample storage options for fast boot drives and high-capacity storage. The Blazing M.2 Socket supports PCIe Gen5 for ultra-fast storage speeds, while the Hyper M.2 sockets handle PCIe Gen4 and Gen3 storage devices.For connectivity, the X870 Steel Legend offers 2.5G LAN and the latest Wi-Fi 7 module (802.11be) with 6GHz support, delivering ultra-fast wireless speeds. The motherboard also features USB4 Type-C ports, offering data transfer speeds of up to 40Gb/s. Its 7.1 CH HD audio with Nahimic Audio technology provides superior sound quality for gaming and multimedia applications.Designed for extreme overclocking and heavy-duty workloads, this motherboard is equipped with 14+2+1 power phases and 80A Dr.MOS for optimal power delivery. Additional features include ASRock Polychrome SYNC for RGB lighting, EZ Troubleshooter, and BIOS Flashback, making setup and maintenance easy. With 3 years warranty, this motherboard offers reliable performance for long-term use.
Features
- Socket AM5 Support: Compatible with AMD Ryzen™ 7000, 8000, and 9000 series processors.
- AMD X870 Chipset: Offers advanced features and stability for high-performance computing.
- Dual-Channel DDR5 Memory: Supports up to 256GB DDR5 memory with speeds up to 8000+ MHz (OC).
- PCIe 5.0 & 4.0 Slots: Provides enhanced GPU and storage performance with high-speed data transfer.
- Three M.2 Slots: For blazing-fast SSDs, with support for PCIe Gen5 and Gen4 storage devices.
- Wi-Fi 7 (802.11be): Ensures ultra-fast wireless connectivity with 6GHz band support and Bluetooth 5.4.2.5G LAN: Offers fast wired connectivity for smooth
- gaming and streaming experiences.7.1 CH HD Audio with Nahimic Audio:
- Superior sound quality with content protection.
- USB4 Type-C Ports: Up to 40Gb/s data transfer speed for fast peripherals and charging.
- 14+2+1 Power Phases: For stable power delivery, designed for extreme overclocking and heavy workloads.
- RGB Sync: Customizable lighting with ASRock Polychrome SYNC for a unique aesthetic.
- EZ Troubleshooting Tools: Easy setup and maintenance with BIOS Flashback and Post Status Checker.
Quick Compare
| Product Details | ||||
| Product | ASROCK X870 STEEL LEGEND WIFI AMD X870 Chipset ATX Motherboard | MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard | ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard | Asus TUF GAMING B850-BTF WIFI W AMD AM5 DDR5 ATX Motherboard |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | X870 Steel Legend WiFi | MPG B850 EDGE TI WIFI | PRIME X870-P-CSM | TUF GAMING B850-BTF WIFI W |
| Brand | ASRock | MSI | Asus | Asus |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | ASROCK X870 STEEL LEGEND WIFI AMD X870 Chipset ATX MotherboardASRock X870 Steel Legend WiFi AMD X870 Chipset ATX Motherboard is designed for performance and durability, offering an exceptional foundation for AMD Ryzen™ 7000, 8000, and 9000 series processors with its Socket AM5. The motherboard is built with an AMD X870 chipset and an 8-layer PCB for superior stability and robust performance. It features dual-channel DDR5 memory support, with speeds reaching up to 8000+ MHz (OC), and supports up to 256GB of memory, making it ideal for both gaming and content creation setups.This motherboard comes equipped with PCIe 5.0 and PCIe 4.0 slots, ensuring high-speed data transfer and support for the latest GPUs. With three M.2 slots and multiple SATA connectors, users have ample storage options for fast boot drives and high-capacity storage. The Blazing M.2 Socket supports PCIe Gen5 for ultra-fast storage speeds, while the Hyper M.2 sockets handle PCIe Gen4 and Gen3 storage devices.For connectivity, the X870 Steel Legend offers 2.5G LAN and the latest Wi-Fi 7 module (802.11be) with 6GHz support, delivering ultra-fast wireless speeds. The motherboard also features USB4 Type-C ports, offering data transfer speeds of up to 40Gb/s. Its 7.1 CH HD audio with Nahimic Audio technology provides superior sound quality for gaming and multimedia applications.Designed for extreme overclocking and heavy-duty workloads, this motherboard is equipped with 14+2+1 power phases and 80A Dr.MOS for optimal power delivery. Additional features include ASRock Polychrome SYNC for RGB lighting, EZ Troubleshooter, and BIOS Flashback, making setup and maintenance easy. With 3 years warranty, this motherboard offers reliable performance for long-term use.FeaturesSocket AM5 Support: Compatible with AMD Ryzen™ 7000, 8000, and 9000 series processors.AMD X870 Chipset: Offers advanced features and stability for high-performance computing.Dual-Channel DDR5 Memory: Supports up to 256GB DDR5 memory with speeds up to 8000+ MHz (OC).PCIe 5.0 & 4.0 Slots: Provides enhanced GPU and storage performance with high-speed data transfer.Three M.2 Slots: For blazing-fast SSDs, with support for PCIe Gen5 and Gen4 storage devices.Wi-Fi 7 (802.11be): Ensures ultra-fast wireless connectivity with 6GHz band support and Bluetooth 5.4.2.5G LAN: Offers fast wired connectivity for smooth gaming and streaming experiences.7.1 CH HD Audio with Nahimic Audio: Superior sound quality with content protection.USB4 Type-C Ports: Up to 40Gb/s data transfer speed for fast peripherals and charging.14+2+1 Power Phases: For stable power delivery, designed for extreme overclocking and heavy workloads.RGB Sync: Customizable lighting with ASRock Polychrome SYNC for a unique aesthetic.EZ Troubleshooting Tools: Easy setup and maintenance with BIOS Flashback and Post Status Checker... | MSI MPG B850 EDGE TI WIFI AM5 ATX MotherboardThe MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard is a premium platform designed to power up your next-generation PC build with support for AMD Ryzen 9000, 8000, and 7000 Series processors. Featuring the advanced AMD B850 chipset, this ATX motherboard ensures seamless compatibility with DDR5 memory up to 8400+ MT/s, making it a future-ready choice for high-performance computing and extreme gaming.Built with PCIe 5.0 x16 support for cutting-edge GPUs and four M.2 slots including PCIe 5.0 x4, the MPG B850 EDGE TI guarantees ultra-fast data transfers and top-tier storage expansion. It also boasts Wi-Fi 7 and 5G LAN, offering next-gen connectivity for lag-free gaming and high-speed downloads. With HDMI 2.1 and DisplayPort, the board supports up to 8K video output for crystal-clear visuals.Additional standout features include 7.1-channel Realtek ALC4080 audio, robust internal I/O with extensive fan and RGB headers, and enhanced debug features such as EZ Debug LED and EZ Memory Detection LED for streamlined troubleshooting. Its durable design, enhanced thermal solutions, and superior overclocking capabilities make it a top choice for PC builders and enthusiasts.The MSI MPG B850 EDGE TI WIFI AM5 Motherboard combines raw power, aesthetics, and versatile expansion for users looking to build a high-end system with cutting-edge features and stability.The MSI MPG B850 EDGE TI WIFI stands out as a high-end AM5 ATX motherboard, meticulously engineered to handle the massive power requirements of the latest AMD Ryzen processors. Featuring a striking silver-white aesthetic, it comes equipped with PCIe 5.0 support, ultra-fast DDR5 memory slots, and Wi-Fi 7 technology for next-gen wireless connectivity. For enthusiasts and pro-level gamers aiming to build a cutting-edge system, keeping an eye on the b850 motherboard price in bd is crucial to securing a premium, future-proof board at a competitive value. Its advanced cooling solution and robust VRM design ensure that your PC remains stable and cool even under the most demanding overclocking scenarios.FeaturesSupports AMD Ryzen 9000, 8000 & 7000 Series Desktop CPUsPCIe 5.0 support for ultra-fast GPU & storage performanceSupports up to 256GB DDR5 RAM, OC up to 8400+ MT/sFour M.2 slots with PCIe Gen5 & RAID 10 NVMe supportRealtek ALC4080 7.1 USB high-performance audioIntegrated Wi-Fi 7 & Bluetooth 5.4 wireless support1x HDMI 2.1 and 1x DisplayPort for up to 8K resolutionHigh-speed USB 20Gbps Type-C front panel portEZ Debug LED, Memory Detection LED for easy diagnostics5G LAN with MU-MIMO & MLO support for stable networking.. | ASUS PRIME X870-P-CSM AMD AM5 ATX MotherboardThe Xtreme XJOGOS CF30R 3 RGB Casing Fan is the perfect solution for enthusiasts who seek efficient cooling and aesthetic brilliance in their PC builds. Engineered to deliver optimal airflow, this fan ensures your system remains cool even during intensive tasks, prolonging the lifespan of your hardware and enhancing overall performance. Featuring vibrant RGB lighting, the CF30R adds a dynamic visual appeal to your setup. The lighting can be customized to match your gaming rig’s theme, creating an immersive environment for both work and play. With a total of three fans included, this set is designed to provide comprehensive cooling coverage, making it ideal for gaming PCs or high-performance workstations. The CF30R fans are equipped with high-quality bearings that ensure a quieter operation, delivering excellent performance without distracting noise. Designed for durability, the robust construction guarantees long-lasting operation, making it a reliable choice for your PC cooling needs. Installation is straightforward with universal compatibility, ensuring seamless integration with most modern PC cases. The fans support a variety of control options, including motherboard synchronization, allowing you to manage lighting and fan speeds effortlessly. Whether you are a gamer, content creator, or general PC enthusiast, the Xtreme XJOGOS CF30R 3 RGB Casing Fan combines exceptional cooling performance, aesthetic customization, and robust durability to enhance your overall computing experience. Invest in this premium cooling solution to maintain your system’s peak performance while elevating its visual appeal... | Asus TUF GAMING B850-BTF WIFI W AMD AM5 DDR5 ATX MotherboardAsus TUF GAMING B850-BTF WIFI W is engineered to deliver high-performance computing with support for AMD Socket AM5 Ryzen 9000, 8000, and 7000 series desktop processors. It features 4 DIMM slots supporting up to 256GB DDR5 memory with speeds up to 8000+ MT/s (OC). The board also supports AMD EXPO profiles and ASUS Enhanced Memory Profile (AEMP), ensuring both enthusiasts and professionals can optimize memory performance.Advanced Storage and ExpansionThis motherboard offers versatile storage options, including 3 M.2 slots and 4 SATA 6Gb/s ports. With PCIe 5.0 x4 support on Ryzen 9000/7000 processors, it delivers lightning-fast data transfer for NVMe SSDs. Expansion is supported through a PCIe 5.0 x16 slot, PCIe 4.0 slots, and multiple M.2 connectors, catering to gamers and creators who demand speed and flexibility.Next-Gen ConnectivityNetworking is seamless with a Realtek 2.5Gb Ethernet port and built-in Wi-Fi 7 support for ultra-fast wireless connectivity. Bluetooth v5.4 ensures smooth peripheral pairing. For display, it includes HDMI 2.1 and DisplayPort 1.4, supporting up to 8K resolution. USB connectivity is extensive, offering 10 rear and 7 front USB ports, including USB Type-C and 20Gbps high-speed ports.High-Quality AudioEquipped with a Realtek ALC1220P 7.1 Surround Sound Audio CODEC, the motherboard delivers premium sound with high SNR, impedance sensing, and dedicated audio shielding for immersive gaming and media experiences.Robust Build and ASUS Exclusive FeaturesAs part of the TUF series, it includes military-grade durability with DIGI+ VRM, ESD guards, SafeSlot reinforcement, and stainless-steel I/O. ASUS-exclusive features like Armoury Crate, Aura Sync RGB, and EZ DIY tools (M.2 Q-Latch, BIOS FlashBack, PCIe Q-Release) ensure easy customization and long-lasting performance.FeaturesSupports AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors (AM5 Socket)4 x DDR5 DIMM slots, up to 256GB, speeds up to 8000+ MT/s (OC)Dual-channel memory architecture with EXPO & AEMP support3 x M.2 slots (PCIe 5.0/4.0) + 4 x SATA 6Gb/s portsPCIe 5.0 x16 slot with SafeSlot reinforcementRealtek 2.5Gb Ethernet with TUF LANGuardBuilt-in Wi-Fi 7 (2x2, up to 2.9Gbps) & Bluetooth 5.4HDMI 2.1 & DisplayPort 1.4 with support up to 8K resolution10 rear USB ports + 7 front USB ports, including USB 20Gbps Type-CRealtek ALC1220P 7.1 Surround Sound Audio CODEC with premium capacitorsASUS Armoury Crate, Aura Sync RGB, Fan Xpert 4, TurboV Core supportTUF Protection: DIGI+ VRM, ESD Guards, Overvoltage Protection, Stainless-steel I/OEZ DIY features: M.2 Q-Latch, BIOS FlashBack, PCIe Q-Release, SafeDIMMRobust cooling with VRM heatsinks and M.2 heatsink designATX form factor (30.5 cm x 24.4 cm) with pre-mounted I/O shield.. |
|
|
|
|
|
|
