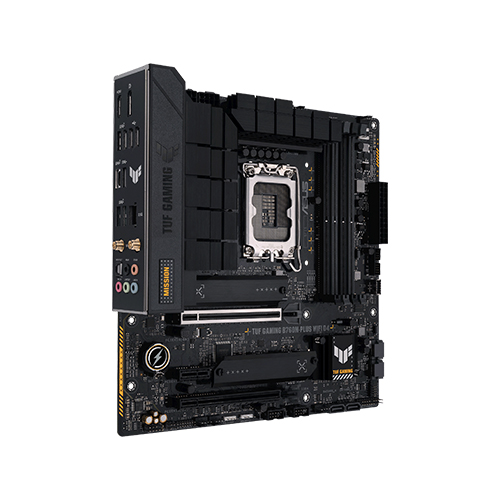

ASUS TUF GAMING B760M-PLUS WIFI D4 Intel 13th Gen MATX Motherboard

ASUS TUF GAMING B760M-PLUS WIFI D4 Intel 13th Gen MATX Motherboard

The ASUS TUF GAMING B760M-PLUS WIFI D4 is a powerful and feature-rich motherboard designed for gaming enthusiasts and PC builders. It is built to support the latest 13th Gen Intel Core processors, ensuring exceptional performance and compatibility with cutting-edge technology.

With a mATX form factor, the motherboard has a compact size of 9.6 inches by 9.6 inches (24.4 cm x 24.4 cm), making it suitable for smaller PC cases without compromising on features or performance.

The motherboard comes with a host of accessories, including two SATA 6Gb/s cables for easy storage connectivity, ASUS Wi-Fi moving antennas for wireless connectivity, and a screw package for M.2 SSD installation. It also includes a TUF Gaming sticker and documentation, such as a TUF Certification card and user guide, to assist with the setup and installation process.

The audio features of the motherboard are designed to deliver an immersive gaming experience. It includes audio shielding to minimize interference, rear optical S/PDIF out port for high-quality audio output, premium audio capacitors for enhanced sound clarity, and dedicated audio PCB layers to separate the audio circuitry from other components for reduced signal noise.

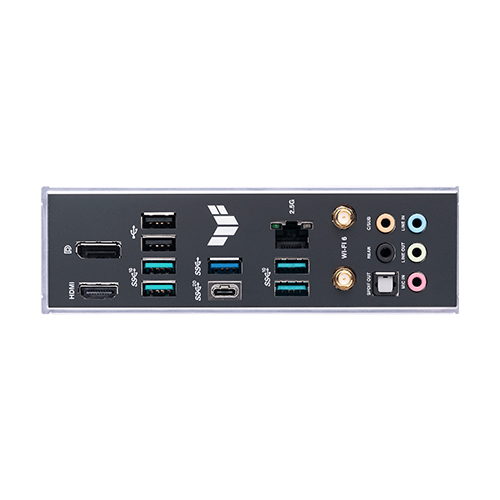

For connectivity, the back panel of the motherboard offers a comprehensive range of I/O ports. These include USB 3.2 Gen 2x2 and USB 3.2 Gen 2 ports, providing high-speed data transfer capabilities, along with USB 2.0 ports for additional peripheral connectivity. It also features DisplayPort and HDMI ports for video output, a Wi-Fi module for wireless connectivity, and a Realtek 2.5Gb Ethernet port for fast and stable wired networking. The motherboard also supports 5 audio jacks and an optical S/PDIF out port for audio connections.

The ASUS TUF GAMING B760M-PLUS WIFI D4 motherboard provides ample expansion slots, including a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot, allowing for multiple graphics card configurations and high-speed storage options. It also offers various internal connectors for fans, cooling, power, storage, and USB connections, ensuring excellent system customization and expandability.

With support for up to 128GB of DDR4 memory and Intel Extreme Memory Profile (XMP), the motherboard enables smooth multitasking and efficient memory performance. It also features ASUS exclusive software, such as Armoury Crate for system customization, AI Suite 3 for advanced system management, and AURA Sync for synchronized RGB lighting effects.

Features

• Intel 13th and 12th Gen Processor Support: The motherboard is compatible with Intel LGA1700 socket, supporting the latest 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors. It also supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 for enhanced performance.
• Connectivity and Expansion: The motherboard features a range of connectivity options, including a USB 3.2 Gen 2x2 port (Type-C), four USB 3.2 Gen 2 ports, one USB 3.2 Gen 1 port, and two USB 2.0 ports. It also provides a DisplayPort and an HDMI port for high-resolution display output. Additionally, it offers a PCIe 5.0 x16 slot, a PCIe 4.0 x16 slot (supports x4 mode), and a PCIe 4.0 x1 slot for expansion.
• Memory and Storage: It supports up to 128GB of DDR4 memory with a maximum frequency of 5333MHz (OC). The motherboard has four DIMM slots and features Dual Channel Memory Architecture for optimized memory performance. For storage, it provides two M.2 slots (supporting PCIe 4.0 x4 mode) and four SATA 6Gb/s ports. It also supports Intel Rapid Storage Technology for SATA RAID configurations.
• Enhanced Audio and Networking: The motherboard features audio shielding, premium audio capacitors, and dedicated audio PCB layers for immersive and high-quality sound. It includes a rear optical S/PDIF out port and five audio jacks. For networking, it offers a Realtek 2.5Gb Ethernet port and Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with Bluetooth v5.2 support.
• ASUS TUF Protection: The motherboard incorporates various protection features for long-lasting durability and reliability. These include DIGI+ VRM (Digital power design with DrMOS), ESD guards, TUF LANGuard for network protection, overvoltage protection, SafeSlot Core+ for reinforced PCIe slots, and stainless-steel back I/O.
• ASUS Exclusive Software: The motherboard comes with ASUS exclusive software such as Armoury Crate, which provides control over system settings and customization options. Other software features include AURA Creator for RGB lighting control, AURA Sync for synchronized lighting effects, Fan Xpert 2+ for optimized fan control, and AI Noise Cancelation for improved audio quality.

Overall, the ASUS TUF GAMING B760M-PLUS WIFI D4 Intel 13th Gen MATX Motherboard is a reliable and feature-packed option for gamers and PC enthusiasts, offering excellent performance, connectivity, and expandability in a compact form factor.
