Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard

Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
-14 %
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard
Special Price: 36,400৳
Regular Price: 42,500৳
36,400৳
42,500৳
Ex Tax: 36,400৳
EMI starts at 12,764৳/month. View all 27 banks EMI plans >
  • Stock: In Stock
  • Brand: Asus
  • Model: TUF GAMING B850M-PLUS WIFI7 W

Key Features

    • Supported CPU: AMD Ryzen 9000, 8000 & 7000 Series
    • Form Factor: micro-ATX
    • Memory Max.: 256GB
    • Ram Type: DDR5
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Chipset AMD B850
Form Factor micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Graphics Specifications
Graphics 1 x DisplayPort*
1 x HDMI port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
Memory Specifications
Maximum Memory 256GB
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Type DDR5
Connector & ports
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Display Port (s) 1x DisplayPort 1.4
HDMI 1x HDMI 2.1
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header

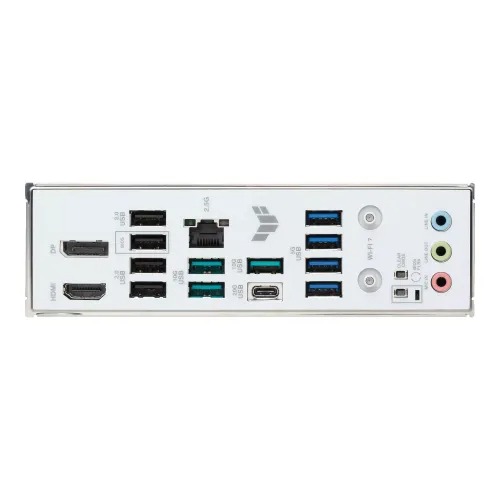

Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
RAID AMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
USB (s) Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A.
Wireless Communication module Wi-Fi 7 (MediaTek MT7925)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary,
Expansion Slots
M.2 Socket 3 x M.2 slots
PCI AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x1 slot
Other Features
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Special Features ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen2 headers
Warranty Information
Warranty 3 Years Warranty

Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard

The Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard is a powerful and reliable motherboard built for modern AMD Ryzen processors and next-generation gaming systems. Designed with ASUS TUF Gaming durability, advanced connectivity, and robust power delivery, this motherboard provides a solid foundation for gamers, content creators, and PC enthusiasts seeking high performance in a compact Micro-ATX form factor.

Built on the AMD B850 chipset and AM5 platform, the motherboard supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors. Combined with DDR5 memory support, it delivers faster data transfer speeds, improved multitasking capabilities, and enhanced gaming performance. Its optimized power design ensures stable operation under demanding workloads, making it ideal for gaming, streaming, and productivity applications.

The motherboard features integrated WiFi 7 technology, enabling ultra-fast wireless networking with reduced latency and improved connectivity. Multiple M.2 storage slots support high-speed NVMe SSDs, while PCIe expansion options allow users to install modern graphics cards and other performance-enhancing components. Advanced cooling solutions help maintain optimal operating temperatures during intensive workloads and gaming sessions.

With its durable military-grade components, stylish TUF Gaming aesthetics, and comprehensive feature set, the Asus TUF GAMING B850M-PLUS WIFI7 W is an excellent choice for users looking to build a compact yet powerful AMD gaming PC. It combines reliability, performance, and future-ready technologies to meet the demands of modern computing.

Features of Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard

  • AMD AM5 Socket Support
  • AMD B850 Chipset
  • Compatible with Ryzen 9000, 8000, and 7000 Series Processors
  • DDR5 Memory Support
  • Micro-ATX Form Factor
  • Integrated WiFi 7 Connectivity
  • High-Speed PCIe Expansion Support
  • Multiple M.2 NVMe Storage Slots
  • Advanced Power Delivery Design
  • Premium Cooling Solutions
  • High-Speed LAN Connectivity
  • Military-Grade TUF Components

Features of Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard

  • Supports next-generation AMD Ryzen processors
  • Delivers faster performance with DDR5 memory
  • Provides ultra-fast WiFi 7 wireless networking
  • Offers reliable stability for gaming and productivity
  • Supports high-speed NVMe SSD storage
  • Improves overall system responsiveness
  • Provides excellent upgrade flexibility
  • Built for long-term durability and reliability

Why Choose Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard?

The Asus TUF GAMING B850M-PLUS WIFI7 W is an excellent option for users who want premium gaming features in a compact Micro-ATX motherboard. It delivers the latest AM5 platform technologies, including DDR5 memory support and WiFi 7 connectivity, allowing users to build a future-ready gaming or productivity system.

Its robust power delivery system, advanced cooling design, and military-grade components ensure stable performance during intensive gaming sessions and professional workloads. The motherboard offers a perfect balance of reliability, performance, and value for users seeking a compact yet capable AMD platform.

Why Buy Asus TUF GAMING B850M-PLUS WIFI7 W mATX Motherboard from Ultra Technology?

Ultra Technology offers genuine ASUS motherboards at competitive prices in Bangladesh. When purchasing the Asus TUF GAMING B850M-PLUS WIFI7 W, customers receive authentic products backed by dependable customer service and professional support.

Whether you are building a gaming PC, workstation, or high-performance desktop, Ultra Technology provides expert guidance and reliable after-sales service. Our commitment to quality and customer satisfaction ensures a smooth and trustworthy shopping experience.

FAQ

Q1: Which processors are compatible with this motherboard?

It supports AMD Ryzen 9000, 8000, and 7000 Series processors using the AM5 socket.

Q2: Does this motherboard support WiFi connectivity?

Yes, it comes with integrated WiFi 7 technology for high-speed wireless networking.

Q3: Can I use DDR5 RAM with this motherboard?

Yes, the Asus TUF GAMING B850M-PLUS WIFI7 W fully supports DDR5 memory modules.
