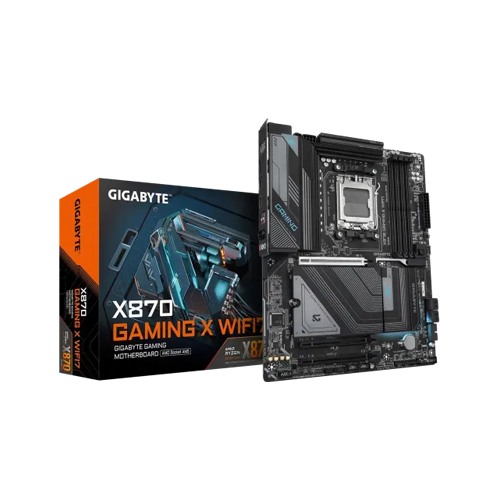

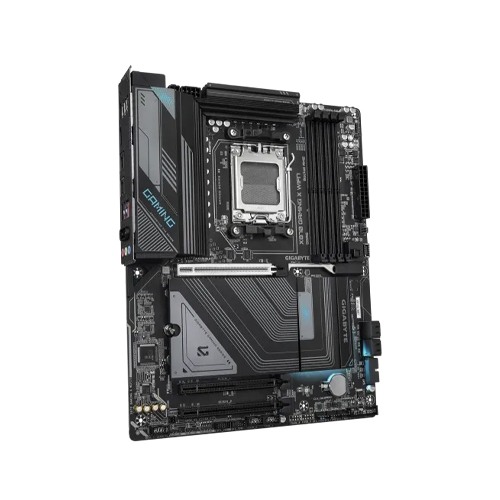

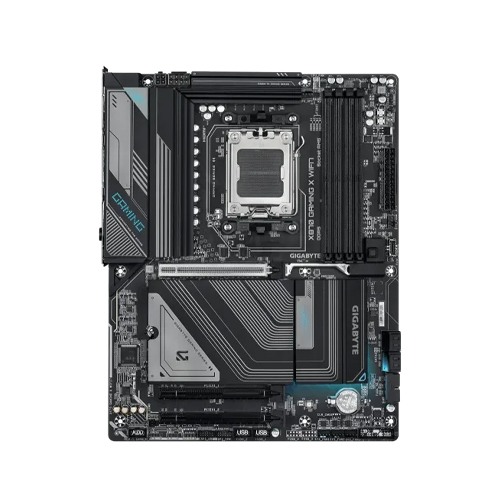

GIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: X870 GAMING X WIFI7
Key Features
- Supports AMD Ryzen 9000/8000/7000 CPUs
- DDR5 memory up to 8200MHz (OC)
- Triple M.2 with PCIe Gen5 & Gen4
- Wi-Fi 7, USB4, and 2.5G LAN
| General Information | |
| Chipset Manufacturer | AMD X870 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |

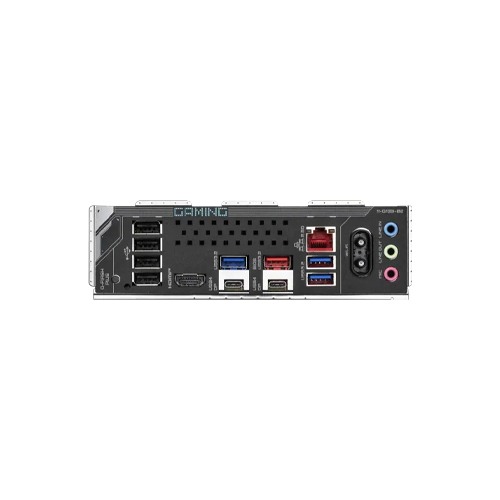

| Back Panel Connectors | 1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port(Note) 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| INTERNAL I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. |
| Operating System | Support for Windows 11 64-bit |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| USB | CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Main Features | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty | 3 Years |
GIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard
The GIGABYTE X870 GAMING X WIFI7 DDR5 AMD AM5 ATX Motherboard delivers next-gen performance, blazing speed, and extreme connectivity for PC enthusiasts and gamers. Engineered to support the latest AMD Ryzen 9000, 8000, and 7000 Series processors, it combines advanced computing power with optimized thermal design and cutting-edge features. Designed on the robust AMD X870 chipset, this board unleashes powerful DDR5 support up to 8200(OC) MHz, enabling faster memory bandwidth and overclocking potential for demanding applications.With PCIe 5.0 x16 graphics slot, triple M.2 connectors including one PCIe 5.0 slot, and up to RAID 0/1/5/10 NVMe SSD configurations, this board is a powerhouse for high-speed gaming and content creation. The dual USB4 Type-C® ports with DisplayPort support, HDMI 2.1, and Wi-Fi 7 with Bluetooth 5.4 ensures premium connectivity for ultra-smooth 4K displays and low-latency networking.Audio is equally refined with Realtek 7.1-channel high-definition audio, and 2.5GbE LAN keeps your connection fast and stable. The board is packed with RGB Fusion support, Smart Fan 6, Q-Flash Plus, and GIGABYTE Control Center, making system tuning intuitive and personalized.For gamers, professionals, and enthusiasts looking for performance, expandability, and reliability, the GIGABYTE X870 GAMING X WIFI7 DDR5 motherboard is the ideal core component to build your AM5 system for both today and the future.
Features
- Supports AMD Ryzen 9000/8000/7000 Series CPUs for ultimate performance
- Advanced DDR5 8200(OC) support with dual-channel architecture
- PCIe 5.0 x16 graphics slot for next-gen GPUs or NVMe
- Triple M.2 connectors with PCIe Gen5/4 for blazing-fast storage
- Wi-Fi 7 and Bluetooth 5.4 for low-latency high-speed wireless
- USB4 dual Type-C ports with DisplayPort & 4K@240Hz output
- Realtek 2.5GbE LAN for ultra-fast wired networking
- 7.1-Channel HD audio with Realtek Audio CODEC
- Smart Fan 6 and water pump support for efficient cooling
- GIGABYTE GCC software, Q-Flash Plus, RGB Fusion included
