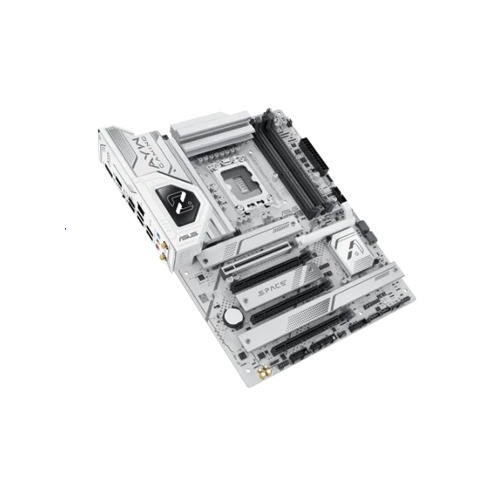

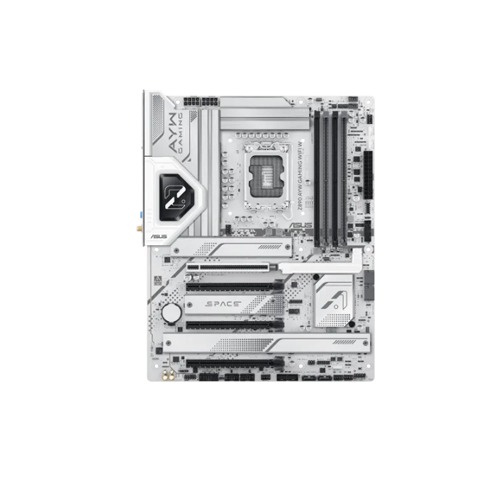

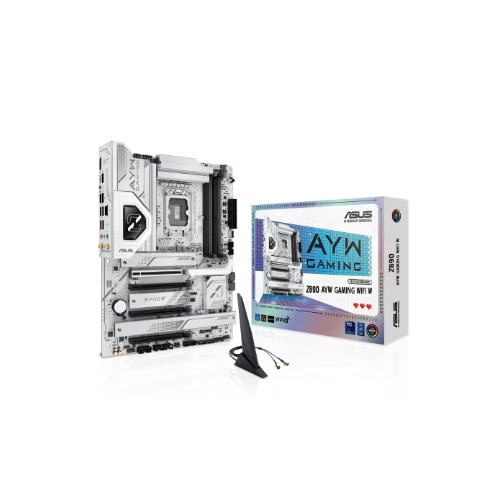

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard
ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard
ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard
-25 %
ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard
ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard
ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard
ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard
Day
Hour
Min
Sec
42,300৳
56,500৳
Ex Tax: 42,300৳
EMI starts at 14,833৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: Asus
  • Model: Z890 AYW GAMING WIFI W

Key Features

  • Features: 4x M.2, Intel Wi-Fi 6, Bluetooth 5.3
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 4x DDR5, Max 192GB,Supports Up to 9066+MT/s (OC)
  • Graphics Output: 1x DisplayPort, 1xUSB Type-C 20Gbps (DisplayPort)
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Audio 1 x Front Panel Audio header (F_AUDIO)
Bundled Software ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost (Intel K-series Processors only)
Display Port (s) 1 x DisplayPort
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
Graphics 1 x DisplayPort
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
* Graphics specifications may vary between CPU types
M.2 Socket Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2) *
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
PCI Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
RAID Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Slots 4 x DIMM slots
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsinks design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
- Compatible with PD3.0 and PPS
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)
Wireless Communication module Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3
* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Main Features
BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS
Chipset Intel Z890 Chipset
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPU Intel Core Ultra Processors(Series 2)
Memory Specifications
Maximum Memory 192GB
Supported Memory Supports up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM
Connector & ports
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Back Panel I/O Ports
2 x Thunderbolt™ 4 (2 x USB Type-C®)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Supported Storage 4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB (s) Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge )**
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
Warranty Information
Warranty 3 Year Warranty

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard

The ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard is a powerhouse built for gamers and PC enthusiasts who demand cutting-edge performance and versatility. Designed around the Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2), ensuring compatibility with high-performance CPUs. Its ATX form factor offers ample space for advanced features, making it ideal for gaming rigs and content creation setups.This motherboard is equipped with DDR5 memory support, featuring four DIMM slots with a maximum capacity of 192GB. With support for speeds up to 9066+ MT/s (OC) and Intel Extreme Memory Profile (XMP), users can achieve unparalleled memory performance. Additionally, ASUS Enhanced Memory Profile III further enhances stability and overclocking capabilities. For storage, the Z890 offers four M.2 slots and four SATA 6Gb/s ports, providing extensive flexibility for high-speed SSDs and traditional drives. The M.2 slots support both PCIe 5.0 and 4.0 modes, ensuring blazing-fast data transfer speeds for demanding applications. Connectivity is exceptional, with Thunderbolt™ 4, Wi-Fi 6, and Bluetooth 5.3 ensuring seamless wireless communication. The board also features multiple USB 20Gbps and 10Gbps ports, including USB Type-C with power delivery for fast charging. The integrated Realtek 2.5Gb Ethernet port ensures ultra-fast and stable wired networking. Special features include ASUS Aura Sync RGB lighting, advanced thermal solutions with VRM heatsinks and M.2 heatsinks, and robust durability with 5X PROTECTION III. DIY enthusiasts will appreciate the EZ DIY tools such as BIOS FlashBack™, M.2 Q-Latch, and pre-mounted I/O shield. The ASUS Z890 AYW GAMING WIFI W delivers high-end gaming and productivity performance, making it an excellent choice for modern PC builds. Backed by a 3-year warranty, it ensures reliability and peace of mind.

Quick Compare

Product Details
Product ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard Gigabyte Z890 AORUS ELITE WIFI7 Intel Motherboard MSI MAG Z790 TOMAHAWK MAX WIFI 13th Gen ATX Motherboard ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
Image ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard Gigabyte Z890 AORUS ELITE WIFI7 Intel Motherboard MSI MAG Z790 TOMAHAWK MAX WIFI 13th Gen ATX Motherboard ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
Price 56,500৳ 42,300৳ 48,500৳ 41,500৳ 44,500৳ 41,500৳ 48,500৳ 43,400৳
Model Z890 AYW GAMING WIFI W Z890 AORUS ELITE MAG Z790 TOMAHAWK MAX WIFI ROG STRIX B860-F GAMING WIFI
Brand Asus Gigabyte MSI Asus
Availability In Stock Discontinued Out Of Stock In Stock
Rating
Based on 0 reviews.

Based on 0 reviews.

Based on 1 reviews.

Based on 0 reviews.
Summary ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX MotherboardThe ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard is a powerhouse built for gamers and PC enthusiasts who demand cutting-edge performance and versatility. Designed around the Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2), ensuring compatibility with high-performance CPUs. Its ATX form factor offers ample space for advanced features, making it ideal for gaming rigs and content creation setups.This motherboard is equipped with DDR5 memory support, featuring four DIMM slots with a maximum capacity of 192GB. With support for speeds up to 9066+ MT/s (OC) and Intel Extreme Memory Profile (XMP), users can achieve unparalleled memory performance. Additionally, ASUS Enhanced Memory Profile III further enhances stability and overclocking capabilities. For storage, the Z890 offers four M.2 slots and four SATA 6Gb/s ports, providing extensive flexibility for high-speed SSDs and traditional drives. The M.2 slots support both PCIe 5.0 and 4.0 modes, ensuring blazing-fast data transfer speeds for demanding applications. Connectivity is exceptional, with Thunderbolt™ 4, Wi-Fi 6, and Bluetooth 5.3 ensuring seamless wireless communication. The board also features multiple USB 20Gbps and 10Gbps ports, including USB Type-C with power delivery for fast charging. The integrated Realtek 2.5Gb Ethernet port ensures ultra-fast and stable wired networking. Special features include ASUS Aura Sync RGB lighting, advanced thermal solutions with VRM heatsinks and M.2 heatsinks, and robust durability with 5X PROTECTION III. DIY enthusiasts will appreciate the EZ DIY tools such as BIOS FlashBack™, M.2 Q-Latch, and pre-mounted I/O shield. The ASUS Z890 AYW GAMING WIFI W delivers high-end gaming and productivity performance, making it an excellent choice for modern PC builds. Backed by a 3-year warranty, it ensures reliability and peace of mind... Gigabyte Z890 AORUS ELITE WIFI7 Intel MotherboardGigabyte Z890 AORUS ELITE WIFI7 Intel Motherboard is designed to provide high-performance capabilities for gaming and professional workstations. Equipped with an LGA 1851 socket, it supports the latest Intel® Core™ Ultra Processors, enabling seamless multitasking and superior computing power. The Intel® Z890 Express Chipset offers enhanced connectivity and storage solutions, making it an excellent choice for both casual gamers and content creators. This motherboard supports DDR5 memory with a variety of overclocking options, allowing for up to 256 GB of memory at speeds ranging from 6400 MT/s to 9200 MT/s. It features four DDR5 DIMM slots, enabling dual-channel memory architecture and compatibility with ECC Un-buffered DIMM and XMP memory profiles for faster and more stable performance. For graphical output, the Z890 AORUS ELITE comes with Intel® HD Graphics support, offering multiple display options such as Thunderbolt™ 4, HDMI, and DisplayPort for up to triple-display setup. It also supports high-resolution video outputs, ideal for immersive gaming or content editing. The motherboard provides Realtek® ALC1220 for high-definition audio with 7.1-channel support, ensuring clear sound quality for gaming and multimedia applications. For network connectivity, it features Realtek® 2.5GbE LAN and the latest Wi-Fi 7 standard (with Bluetooth 5.4), delivering fast and reliable wireless performance With PCIe 5.0 support, the board offers ample expansion options, including M.2 PCIe slots and SATA connectors for storage upgrades. The ATX form factor allows for flexibility in case compatibility, and advanced features like Q-Flash Plus and Smart Backup provide ease of use for system upgrades and maintenance. Overall, the Gigabyte Z890 AORUS ELITE WIFI7 motherboard is a top-tier choice for those seeking advanced performance, connectivity, and reliability... MSI MAG Z790 TOMAHAWK MAX WIFI 13th Gen ATX MotherboardMSI MAG Z790 TOMAHAWK MAX WIFI is a feature-packed ATX motherboard designed to provide exceptional performance and versatility for gaming and content creation enthusiasts. Built to support Intel's 13th and 14th generation processors, including the latest LGA 1700 socket CPUs, this motherboard is a powerhouse of technology. One of its standout features is the DDR5 memory support, providing blazing-fast memory speeds of up to 7800+ MHz in overclocking mode. With four DIMM slots, you can install up to 192GB of RAM, taking your multitasking capabilities to the next level. For gamers and content creators, the MSI MAG Z790 offers impressive graphics support with HDMI 2.1 and DisplayPort 1.4 connectors, allowing for stunning 4K and 8K resolutions. The motherboard also provides excellent audio quality with the Realtek ALC4080 Codec and 7.1-channel USB high-performance audio, making your gaming and media experiences immersive and lifelike. Connectivity options are abundant, including numerous USB ports, 2.5Gbps LAN, and Wi-Fi 7 with MU-MIMO support. The pre-installed wireless communication module delivers lightning-fast internet speeds, supporting the latest Wi-Fi standards and Bluetooth 5.4. Storage options are plentiful, thanks to four M.2 slots and eight SATA 6G ports, which support various storage configurations, including RAID setups for both SATA and NVMe storage devices. In terms of expandability, the motherboard boasts two PCIe x16 slots and one PCIe x1 slot, enabling multi-GPU configurations and the addition of various expansion cards. The LED features, including 4x EZ Debug LEDs, add a touch of style to your build, and the motherboard comes with a 3-year manufacturer's warranty, ensuring its durability and reliability. The MSI MAG Z790 TOMAHAWK MAX WIFI is not only a performance beast but also offers a range of features that cater to the modern gaming and content creation demands. With its support for cutting-edge hardware and connectivity options, this motherboard is an excellent choice for users looking to build a high-end gaming or content creation PC that can handle the most demanding tasks and applications.MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard Price in BDThe MSI MAG Z790 TOMAHAWK MAX WIFI motherboard is a versatile solution that caters to a wide range of computing needs. Whether you're in an office, an industrial setting, or at home, this ATX motherboard delivers the performance and features you require With support for Intel's 13th and 14th generation processors, DDR5 memory, and a variety of storage options, this motherboard adapts to your specific demands. The connectivity options, including USB 3.2 Gen2 and Wi-Fi 7, ensure seamless data transfer and internet access With its robust build quality and a 3-year manufacturer's warranty, the MSI MAG Z790 TOMAHAWK MAX WIFI motherboard is the dependable choice for all your computing requirements.FeaturesCPU Support: Compatible with Intel Core 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors, utilizing the LGA 1700 socket.Chipset: Powered by the Intel Z790 chipset, providing robust performance and features.Form Factor: Designed in the ATX form factor, offering a balance between expandability and a standard-sized case fit.Memory Support: Supports DDR5 memory with four DIMM slots, enabling overclocked memory speeds up to 7800+ MHz and a maximum capacity of 192GB. It also supports Intel XMP 3.0 OC and dual-channel mode.Graphics Capabilities: Equipped with an HDMI 2.1 port with HDR support for 4K 60Hz resolution and a DisplayPort 1.4 for up to 8K 60Hz resolution, making it suitable for high-quality gaming and content creation.Connectivity: Offers a wide range of USB ports, including USB 2.0, USB 3.2 Gen1 Type-A, USB 3.2 Gen2 Type-A, and USB 3.2 Gen2 Type-C. Additionally, it includes a USB4 card connector for high-speed data transfer.Networking: Features Intel 2.5Gbps LAN for ultra-fast wired connectivity and Wi-Fi 7 with MU-MIMO support, delivering wireless speeds up to 5.8Gbps. It supports various Wi-Fi standards, including 802.11 a/b/g/n/ac/ax/be.Storage Options: Provides four M.2 slots with support for PCIe 5.0 and PCIe 4.0, as well as SATA mode, catering to a wide range of storage needs. It also supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage devices.Audio Quality: Equipped with the Realtek ALC4080 Codec, delivering 7.1-channel USB high-performance audio and supporting up to 32-Bit/384 kHz playback on the front panel, enhancing the audio experience for gaming and multimedia.Expansion Slots: Offers two PCIe x16 slots for multi-GPU configurations and one PCIe x1 slot for additional expansion cards.LED Features: Includes 4x EZ Debug LED for easy troubleshooting and aesthetic RGB LED connectors for customizable lighting effects.Internal I/O Ports: Comes with a variety of internal connectors, including power connectors, fan headers, front panel connectors, and more, facilitating ease of installation and customization.Warranty: Backed by a 3-year manufacturer's warranty, ensuring the reliability and durability of the motherboard.These features make the MSI MAG Z790 TOMAHAWK MAX WIFI a high-performance motherboard suitable for gaming, content creation, and other demanding tasks, while also offering extensive connectivity options and a stylish design... ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming MotherboardASUS ROG STRIX B860-F is designed for the latest Intel LGA1851 socket, supporting Intel Core Ultra Series 2 processors. With Intel B860 Chipset and technologies like Intel Turbo Boost 2.0 and Turbo Boost Max 3.0, it ensures high performance and efficiency for both gaming and productivity.High-Speed Memory & StorageThis motherboard comes with 4 DIMM slots, supporting up to 256GB DDR5 memory with speeds up to 9066MT/s (OC). It includes support for Intel XMP profiles and ASUS Enhanced Memory Profile III (AEMP III) for fine-tuned performance. Storage options are equally robust, featuring 4 M.2 slots (PCIe 5.0 & PCIe 4.0) and 4 SATA 6Gb/s ports, with RAID 0/1/5/10 support.Graphics & ExpansionWith DisplayPort, HDMI, and Thunderbolt 4 outputs, it supports resolutions up to 8K@60Hz with DSC. Expansion includes PCIe 5.0 x16 for powerful GPUs and an additional PCIe 4.0 x16 slot (x4 mode), ensuring future-proof gaming and content creation capability.Networking & ConnectivityGamers get ultra-fast connectivity with Wi-Fi 7 (802.11be), 2x2 antennas, and 2.5Gb Intel Ethernet. It also includes Bluetooth v5.4, making it perfect for both wired and wireless setups.SupremeFX AudioThe ROG SupremeFX ALC4080 codec delivers 7.1-channel surround sound with premium capacitors, Savitech amplifier, and optical S/PDIF out, ensuring immersive audio for gaming and media.DIY-Friendly Design & FeaturesASUS equips this board with Q-Design features such as M.2 Q-Latch, PCIe Q-Release Slim, and pre-mounted I/O shield for easy installation. Enhanced cooling includes M.2 heatsinks, VRM heatsinks, and backplates.Software & ExtrasBundled with Armoury Crate, Aura Sync RGB, Dolby Atmos, and AIDA64 (trial), it offers deep customization. Accessories include Wi-Fi antenna, SATA cables, M.2 tools, and ROG stickers...
