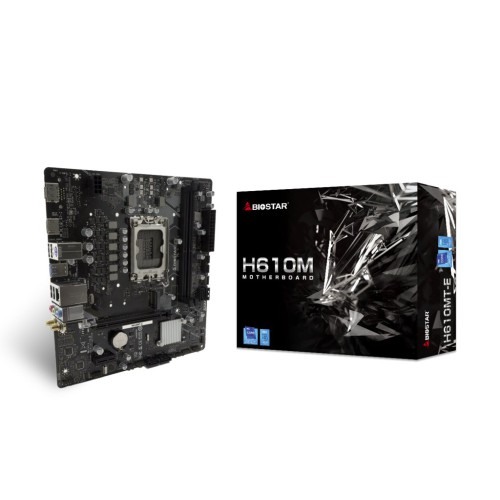

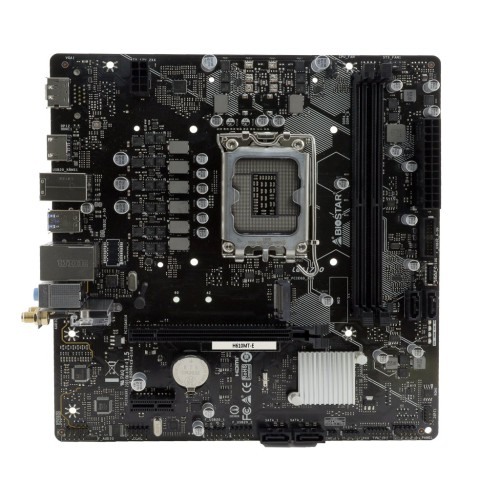

Biostar H610MT-E 12th/13th/14th Gen micro atx motherboard

Biostar H610MT-E 12th/13th/14th Gen micro atx motherboard

Biostar H610MT-E is a robust micro ATX motherboard designed to support Intel's 12th, 13th, and 14th Generation Core processors, making it a versatile choice for various computing needs. Built on the Intel H610 chipset, it provides reliable performance for both casual and professional users. The motherboard supports dual-channel DDR4 memory with speeds up to 3200MHz, ensuring efficient multitasking and data processing capabilities. With two DDR4 DIMM slots, it can handle up to 64GB of memory, accommodating non-ECC 4GB, 8GB, 16GB, and 32GB modules. This extensive memory support, along with Intel's Extreme Memory Profile (XMP) compatibility, allows users to optimize memory settings for enhanced performance. In terms of storage, the H610MT-E features one M.2 socket and four SATA III ports, providing ample options for both high-speed SSDs and traditional hard drives. The M.2 slot supports PCIe 3.0 x4 NVMe and AHCI SSDs, offering data transfer rates of up to 32Gb/s, significantly boosting system responsiveness and load times. The motherboard includes integrated video support with DirectX 12 and HDCP, ensuring smooth graphics performance and secure content playback. The Realtek ALC897 audio codec delivers high-definition, 7.1 channel audio, enhancing the multimedia experience with clear and immersive sound. For networking, the Biostar H610MT-E is equipped with the Realtek RTL8111H Gigabit LAN controller, supporting speeds of up to 1000Mb/s and offering reliable and fast internet connectivity. The motherboard also includes a variety of USB ports: one USB 3.2 Gen2 Type-C, three USB 3.2 Gen1, and eight USB 2.0 ports, providing extensive connectivity options for peripherals and accessories. The motherboard features one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, supporting the latest expansion cards and GPUs for improved system capabilities. The rear I/O panel includes a range of ports such as HDMI, DP, LAN, audio jacks, and several USB ports, ensuring easy access and versatility for various external devices. Internally, the H610MT-E offers headers for additional USB ports, fans, front panel audio, and more, allowing users to customize and expand their system configuration. It also includes hardware monitoring features for CPU and system temperature, fan control, and voltage monitoring, ensuring system stability and optimal performance. With its micro ATX form factor, the motherboard measures 21.6cm x 22.8cm, fitting comfortably in a wide range of computer cases. The package includes essential accessories such as SATA cables, an I/O shield, a DVD driver, a quick guide, an M.2 anchor, and WiFi antenna accessories, making installation straightforward and convenient. Overall, the Biostar H610MT-E is a comprehensive and reliable motherboard that caters to the needs of both casual and power users, offering a balance of performance, connectivity, and expandability.
