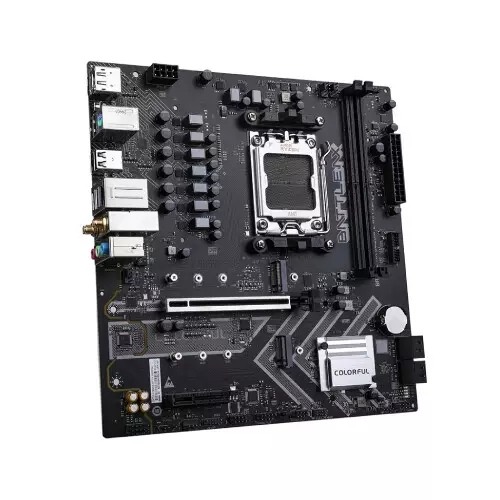

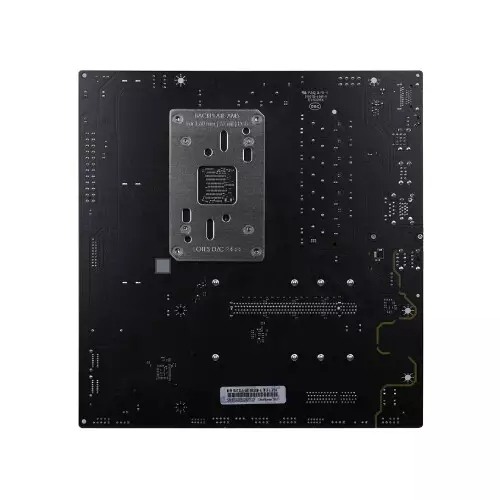

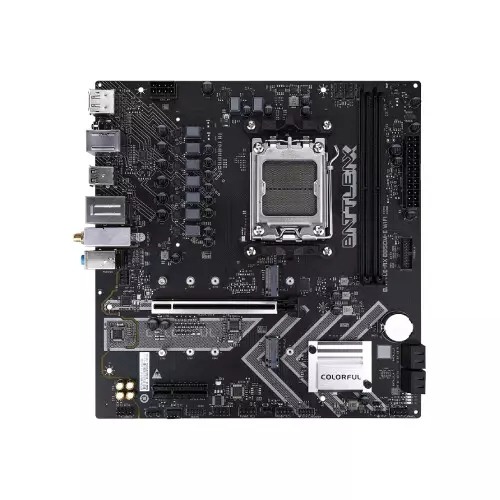

Colorful BATTLE-AX B850M-E WIFI V14 DDR5 AM5 M-ATX Motherboard
- Stock: In Stock
- Brand: Colorful
- Model: BATTLE-AX B850M-E WIFI
Key Features
- Chipset: AMD B850
- Supported CPU: Supports AMD Ryzen 7000/8000/9000 series
- Memory: 2 DDR5 memory sockets are provided
- WiFi 6, 2 M.2 slots
| Main Features | |
| BIOS | 256M UEFI, support multiple languages |
| Chipset | AMD B850 |
| Supported CPU | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard |
| General Information | |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Bluetooth | Bluetooth 5.2 |
| Dimension | 244mm x 235 mm |

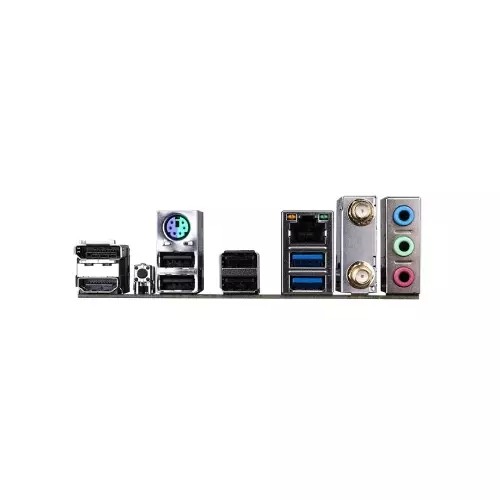

| External I/O Ports | -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1个PS/2 interface -1×Gigabit network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button |
| Form Factor | M-ATX |
| LAN | RTL8111K 1000M LAN |
| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technology |
| RAID | Supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices |
| Slots | 1×PCIe 4.0 x16 slot 1×PCIe 4.0 x4 slot |
| Special Features | Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| WiFi | AX200 WiFi 6 wireless network card |
| Connector & ports | |
| Internal I/O Ports | -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×CPU fan pin -2×System fan pins -1×water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| Supported Storage | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
| Warranty Information | |
| Warranty | 3 years |
Colorful BATTLE-AX B850M-E WIFI Motherboard
Colorful BATTLE-AX B850M-E WIFI V14 DDR5 AM5 M-ATX Motherboard is designed for users who want next-generation performance in a compact yet powerful form factor. Built on the AMD B850 chipset and AM5 socket, it fully supports AMD Ryzen 7000, 8000, and 9000 series processors, making it an ideal foundation for modern gaming, productivity, and content creation PCs. With advanced DDR5 memory support, PCIe 5.0 storage readiness, and integrated WiFi 6, this motherboard delivers speed, stability, and future-proof connectivity.
AMD AM5 Platform & B850 Chipset
This motherboard is engineered to unlock the full potential of AMD’s latest Ryzen CPUs. The AM5 platform ensures long-term upgrade support, while the B850 chipset balances performance and efficiency. A 256M UEFI BIOS with multilingual support allows stable operation, smooth updates, and easy system tuning even for first-time builders.
High-Speed DDR5 Memory Support
Equipped with 2 DDR5 memory slots, the board supports up to 96GB of RAM, with speeds ranging from DDR5-4800MHz up to DDR5-7600MHz (OC). Support for AMD EXPO and Intel XMP profiles makes memory overclocking simple and reliable. Dual-channel architecture ensures better bandwidth and smoother multitasking for demanding applications.
Advanced Storage & Expansion Options
The motherboard includes two M.2 slots, with the primary slot supporting PCIe 5.0/4.0 x4, delivering ultra-fast NVMe SSD performance. An additional PCIe 4.0 M.2 slot and four SATA 6Gb/s ports offer flexible storage expansion. RAID 0, 1, and 10 support allows users to optimize speed, redundancy, or both.
For graphics and expansion cards, it features PCIe 4.0 x16 and PCIe 4.0 x4 slots, ensuring compatibility with modern GPUs and high-speed add-on cards.
Connectivity, WiFi & Audio
Integrated WiFi 6 (AX200) and Bluetooth 5.2 provide fast, stable wireless connections. A Realtek Gigabit LAN delivers reliable wired networking. Display output includes HDMI 2.0 and DP 1.2, both supporting up to 4K at 60Hz. Audio is powered by the Realtek ALC897, supporting up to 5.1-channel immersive sound.
Cooling, Durability & Monitoring
Multiple fan headers, a dedicated water-pump header, and built-in hardware monitoring allow precise thermal control. Features like voltage monitoring, temperature tracking, and wake-on-network ensure long-term stability and convenience.
