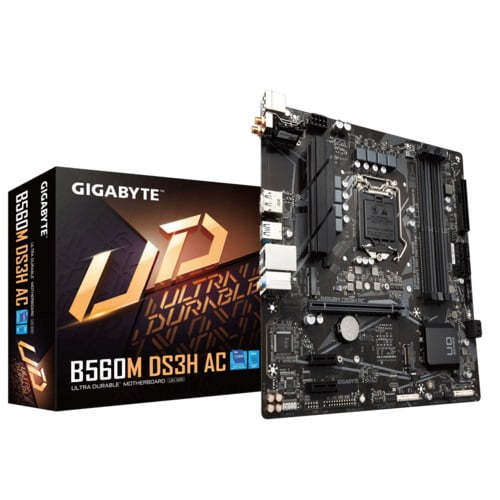

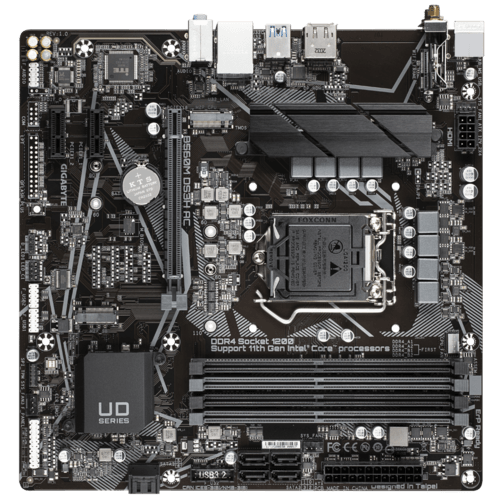

Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
-2 %
Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
Based on 0 reviews. - Write a review
13,500৳
13,800৳
Ex Tax: 13,500৳
EMI starts at 4,734৳/month. View all 25 banks EMI plans >
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B560M-DS3H
  • SKU: B560M-DS3H
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Key Features

    • Model: B560M DS3H AC
    • Supports 11th and 10th Gen Intel Core Processors
    • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
    • Dual-Channel DDR4, 4 DIMMs
    • Dual-Band 802.11ac Wireless & BT 4.2
View more details
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio 3 x audio jacks
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel B560 Express Chipset
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Graphics Specifications
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
Memory Specifications
Supported Memory 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Connector & ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button
LAN Port (s) Realtek GbE LAN chip (1000/100 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready
USB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel
Generel information
CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) Memory
Maximum Mamory 128 GB (32 GB single DIMM capacity)
PCI 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Slots 4 x DDR4 DIMM
Warranty Information
Warranty 3 years

Gigabyte B560M DS3H AC Motherboard

Gigabyte B560M DS3H AC Motherboard supports 11th and 10th Gen Intel Core Series Processors and Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs with Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs. It features Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2. It supports GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management and Onboard Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna. it comes with USB 3.2 Gen1 Type-C for Fast and Versatile Connections.

Pick up the Right Socket

You can single out a great CPU from either Intel or AMD, but whatever CPU you choose, make sure your mainboard has the right socket for the selected CPU. The latest mainstream AMD chips use AM4 sockets while current Intel 9th Gen Core CPUs require LGA 1151v2 sockets.

Motherboard Sizes

Motherboards typically come in three sizes from largest to smallest: ATX, Micro-ATX, and Mini-ATX motherboards. ATX motherboards offer the highest number of RAM and expansion slots. If you are looking for a budget build, you can use a smaller chassis with the micro or mini boards, but you'll have to settle for fewer PCIe slots, RAM banks, and other connectors.

Number of RAM Slots

Most mainstream boards these days have four RAM slots, although Mini-ITX models often have just two, and high-end boards frequently offer eight. The amount of slots, of course, limits the amount of RAM you can install.

Motherboard ports

It’s essential to check the I/O area on a motherboard to make sure it has the external connection options you need. You may need more USB 3 ports while others may want more audio ports. Among the most common ports, there are USB 3, USB 2, audio, USB type C, USB 3.1 Gen1 and Gen2, HDMI, Display port, PS/2 and Thunderbolt 3 ports. Ports one probably want the most are USB 2 and USB 3 Gen1 ports, as the first one is perfect for keyboard, mouse, and many other devices and the later one work with most peripherals. USB 3.1 Gen2 and USB Type-C ports will come handy in the near future, although most peripherals do not support this standard yet.

Motherboard Chipsets

CPU mainly dictates the compatible chipset options. For Intel motherboards, one can choose from the cheaper options that can’t be overclocked or the expensive ones that can. Chipset with the letter 'Z' in the name has the overclocking feature and chipsets with letters 'B', 'H', 'Q'… do not come with this particular feature.

Write a review

Note: HTML is not translated!
Bad Good

What is the Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard price in bd 2024?

The Gigabyte B560M-DS3H PC Components price in BD is 13,500৳. In today's market on 05-05-2024. Ultra Technology offers you the lowest price of Gigabyte B560M-DS3H PC Components: 13,500৳ instead of 13,800৳ regular price. Besides, You can buy this product on EMI 4,734৳/month total of 14,202৳ for 3 months EMI Plan, Up to 36-month EMI plans available through 25 banks. The Gigabyte B560M-DS3H PC Components is In Stock now in our store (Call us to know about details of this product). 10 customer buy this product From 2122 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Gigabyte B560M-DS3H online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
