GIGABYTE B650 AORUS ELITE AX ICE AM5 ATX Motherboard
Discontinued
- Stock: Discontinued
- Brand: Gigabyte
- Model: B650 AORUS ELITE AX
Discontinued
Key Features
- AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
- Dual Channel DDR5: 4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Superfast Storage: 1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity: HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
| General Information | |
| AUDIO CODEC | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |

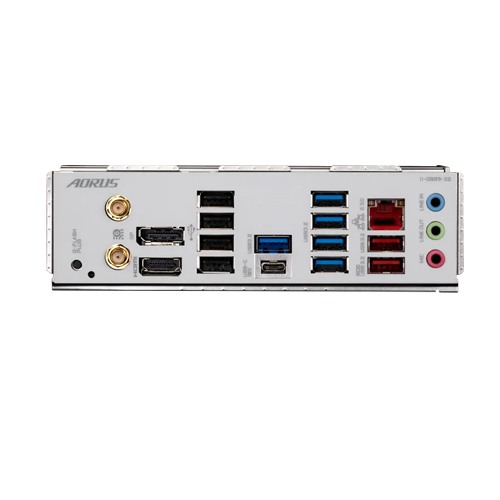

| Back Panel Connectors | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/620 0(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Onboard Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| USB | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel |
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless |
| Main Features | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD B650 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warrantty | 3 Years |
GIGABYTE B650 AORUS ELITE AX ICE AM5 ATX Motherboard
GIGABYTE B650 AORUS ELITE AX ICE AM5 ATX Motherboard is a cutting-edge platform designed to unleash the full potential of your computing experience. Engineered for AMD Socket AM5 processors, it offers seamless compatibility with the latest AMD Ryzen™ 7000 and Ryzen™ 8000 Series CPUs, ensuring exceptional performance for gaming, content creation, and multitasking. With its AMD B650 chipset, this motherboard delivers robust connectivity and stability. It supports DDR5 memory modules with speeds up to an impressive 8000MHz (OC), providing ample room for overclocking and maximizing system responsiveness. The four DDR5 DIMM sockets allow for a total system memory capacity of up to 192GB, facilitating smooth multitasking and efficient data handling. For visuals, the integrated graphics processor with AMD Radeon™ Graphics support offers outstanding display capabilities. With DisplayPort 1.4 and HDMI 2.1 ports, users can enjoy high-resolution content at up to 4K and 144Hz refresh rates, ensuring immersive gaming and multimedia experiences. In terms of networking, the Realtek® 2.5GbE LAN chip and Realtek® Wi-Fi 6E module offer lightning-fast connectivity options, whether wired or wireless. Bluetooth 5.3 support further enhances connectivity for peripherals and accessories. Expansion slots include PCIe 4.0 and 3.0 options, providing flexibility for graphics cards, NVMe SSDs, and other expansion cards. Multiple M.2 connectors support high-speed SSDs, while SATA 6Gb/s connectors enable RAID configurations for enhanced storage performance and data redundancy. The motherboard boasts a comprehensive array of USB ports, including USB 3.2 Gen 2x2, Type-C, and Type-A ports, catering to modern peripheral requirements. Internal connectors for RGB lighting and audio components allow users to customize their system aesthetics and audio setup to suit their preferences. Featuring a user-friendly BIOS interface and support for GIGABYTE Control Center software, users can easily manage system settings and monitor performance parameters. Additionally, bundled software such as Norton® Internet Security enhances system security and reliability. With its ATX form factor, the GIGABYTE B650 AORUS ELITE AX ICE AM5 ATX Motherboard offers compatibility with a wide range of PC cases while delivering high performance and versatility for demanding computing tasks. Whether you're a gamer, content creator, or power user, this motherboard provides the foundation for a premium computing experience.
Features
- AMD Socket AM5 Compatibility: Designed to accommodate AMD Ryzen™ 7000 and Ryzen™ 8000 Series Processors, ensuring seamless integration and optimal performance.
- DDR5 Memory Support: Supports DDR5 memory modules with speeds up to 8000MHz (OC), offering high-bandwidth memory solutions for enhanced multitasking and system responsiveness.
- Integrated Graphics with AMD Radeon™ Graphics Support: Equipped with an integrated graphics processor, featuring DisplayPort 1.4 and HDMI 2.1 ports for stunning visuals at up to 4K resolution and high refresh rates.
- High-Speed Networking: Utilizes a Realtek® 2.5GbE LAN chip and Realtek® Wi-Fi 6E module for fast and reliable wired and wireless connectivity. Bluetooth 5.3 support further enhances connectivity options.
- Expansion Slots: Provides PCIe 4.0 and 3.0 expansion slots for graphics cards, NVMe SSDs, and other expansion cards, offering flexibility for system upgrades and expansion.
- M.2 Connectors and SATA Ports: Multiple M.2 connectors support high-speed SSDs, while SATA 6Gb/s connectors enable RAID configurations for enhanced storage performance and data redundancy.
- Comprehensive USB Connectivity: Features a variety of USB ports, including USB 3.2 Gen 2x2, Type-C, and Type-A ports, catering to diverse peripheral connectivity needs.
- Customization Options: Offers internal connectors for RGB lighting and audio components, allowing users to customize their system aesthetics and audio setup according to their preferences.
- User-Friendly BIOS Interface: Equipped with a user-friendly BIOS interface, making it easy to manage system settings and monitor performance parameters for optimal system operation.
- Bundled Software: Includes bundled software such as Norton® Internet Security (OEM version) for enhanced system security and reliability, ensuring a safe computing experience.
- ATX Form Factor: Features an ATX form factor, providing compatibility with a wide range of PC cases while delivering high performance and versatility for demanding computing tasks.
