Gigabyte B650 EAGLE AX AM5 ATX Motherboard

Gigabyte B650 EAGLE AX AM5 ATX Motherboard

The Gigabyte B650 EAGLE AX ATX AM5 Motherboard is a powerful and feature-rich motherboard designed to support the latest AMD Ryzen™ 7000 Series Processors and AMD Ryzen™ 8000 Series Processors, ensuring exceptional performance for gaming, content creation, and productivity tasks. At its core, the motherboard features the AMD B650 chipset, providing robust support for the latest CPU technologies and connectivity options. The BIOS is equipped with a 256 Mbit flash and licensed AMI UEFI BIOS, ensuring compatibility and stability. With support for DDR5 memory modules running at speeds up to 7600(OC) MT/s, the motherboard can accommodate up to 192 GB of system memory across four DDR5 DIMM sockets, enabling smooth multitasking and efficient data processing. In terms of graphics capabilities, the motherboard comes with integrated graphics processing, including 1x DisplayPort and 1x HDMI port with support for high-resolution displays and refresh rates. The PCI Express expansion slots offer flexibility for adding dedicated graphics cards or other expansion cards, with support for PCIe 4.0 and PCIe 3.0 standards. Connectivity options abound with USB ports, including USB 3.2 Gen 2 Type-A and Type-C ports for high-speed data transfer, as well as USB 2.0/1.1 ports for legacy devices. The motherboard also features Realtek® GbE LAN for reliable wired networking, while Realtek® Wi-Fi 6E RTL8852CE provides fast and stable wireless connectivity.Storage options are extensive, with multiple M.2 connectors supporting PCIe SSDs and SATA SSDs, as well as SATA 6Gb/s connectors for traditional hard drives and SSDs. RAID support is available for both NVMe and SATA storage devices, offering data redundancy and performance optimization. The motherboard's ATX form factor ensures compatibility with a wide range of PC cases, while its comprehensive set of I/O ports and internal connectors provide ample expansion and customization options. Backed by a 3-year warranty, the Gigabyte B650 EAGLE AX ATX AM5 Motherboard offers reliability, performance, and versatility for your PC build.

Features:

• Supported CPU: Compatible with AMD Socket AM5, supporting AMD Ryzen™ 7000 Series Processors and AMD Ryzen™ 8000 Series Processors, ensuring high-performance computing for gaming and productivity.
• Chipset: Powered by the AMD B650 chipset, providing robust support for the latest CPU technologies and connectivity options, ensuring stability and reliability.
• Memory Support: Supports DDR5 memory modules with speeds up to 7600(OC) MT/s, featuring four DDR5 DIMM sockets supporting up to 192 GB of system memory, enabling smooth multitasking and efficient data processing.
• Expansion Slots: Equipped with 1 x PCI Express x16 slot integrated in the CPU, supporting PCIe 4.0 x16 mode for graphics cards or NVMe SSDs, and 3 x PCI Express x16 slots from the chipset supporting PCIe 3.0 and running at x1 for expansion cards.
• Connector & Ports: Features various USB ports including USB 3.2 Gen 2 Type-A ports, USB Type-C® port with USB 3.2 Gen 1 support, and internal USB headers, providing ample connectivity for peripherals and devices.
• Supported Storage: Offers multiple M.2 connectors integrated in the CPU and chipset supporting various SSD types, as well as SATA 6Gb/s connectors with RAID support for NVMe and SATA storage devices.
• Wireless Communication Module: Equipped with the Realtek® Wi-Fi 6E RTL8852CE module supporting Wi-Fi 6E (802.11ax) and Bluetooth 5.3, ensuring fast and reliable wireless connectivity.
• Internal I/O Ports: Provides a range of internal I/O ports including ATX main power connector, CPU fan headers, system fan headers, RGB LED strip headers, M.2 socket connectors, SATA connectors, USB headers, and more for system customization and expansion.

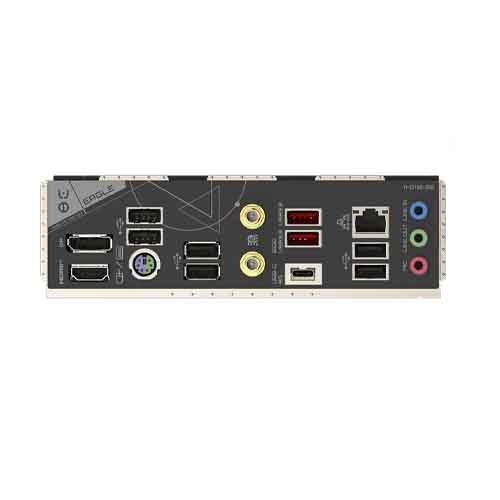

• Back Panel Connectors: Includes DisplayPort, HDMI port, USB Type-C® port, USB 3.2 Gen 2 Type-A ports, USB 2.0/1.1 ports, RJ-45 port, audio jacks, and SMA antenna connectors, offering comprehensive connectivity options for external devices.
• Bundled Software: Comes with Norton® Internet Security (OEM Version) and LAN Bandwidth Management Software, enhancing system security and network performance.
• Warranty: Backed by a 3-year warranty, ensuring peace of mind and reliability for long-term usage.

These features collectively make the Gigabyte B650 EAGLE AX ATX AM5 Motherboard a versatile and reliable foundation for building high-performance desktop systems for gaming, content creation, and more.
