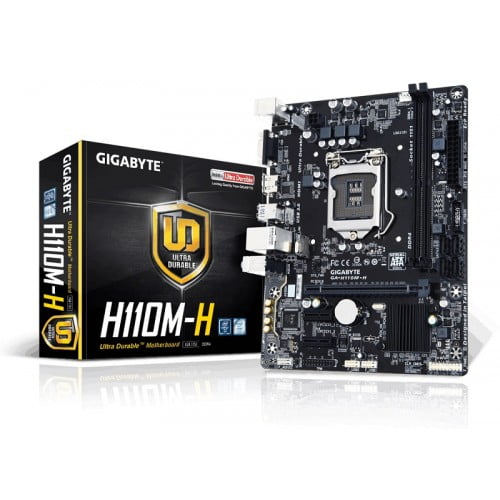

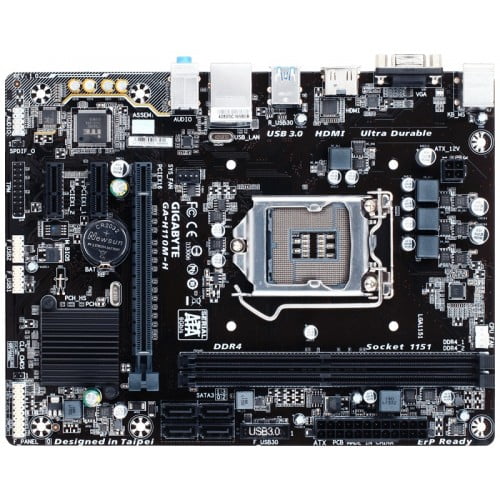

Gigabyte GA-H110M-H Micro ATX Motherboard

Gigabyte GA-H110M-H Micro ATX Motherboard
Gigabyte GA-H110M-H Micro ATX Motherboard
Gigabyte GA-H110M-H Micro ATX Motherboard
-14 %
Gigabyte GA-H110M-H Micro ATX Motherboard
Gigabyte GA-H110M-H Micro ATX Motherboard
Gigabyte GA-H110M-H Micro ATX Motherboard
Gigabyte GA-H110M-H Micro ATX Motherboard
Based on 0 reviews. - Write a review
9,000৳
10,500৳
Ex Tax: 9,000৳
EMI starts at 3,156৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: GA-H110M-H
  • SKU: GA-H110M-H
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Key Features

    • Model: GA-H110M-H
    • CPU: 7th/ 6th Generation Intel Processors
    • Chipset: Intel H110 Express
    • 2 x DDR4 DIMM
    • 3 x PCI Express slot
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU
Chipset Intel® H110 Express Chipset
BIOS 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conform to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
Type Dual channel DDR4 memory architecture
Slots 2 x DIMM
Supported Memory DDR4 2400/2133 MHz memory modules ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Mamory 32 GB
Graphics
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version.
Max Shared Memory 1024 MB

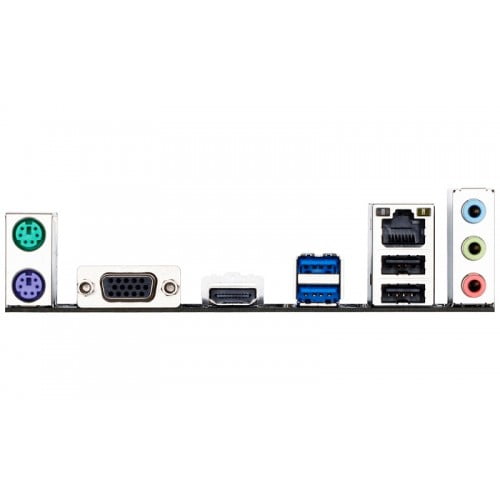

Connector & Ports
HDMI 1 x HDMI
USB (s) Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset: 4 x SATA 6Gb/s connectors
Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub
Warranty Information
Manufacturing Warranty 03 Years

Gigabyte GA-H110M-H Motherboard

Gigabyte GA-H110M-H Micro ATX ultra durable motherboard has the compatibility with 7th/6th i3, i5 & i7 processors.  Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200@60 Hz for D-Sub and 4096x2160@24 Hz for HDMI port. This basic motherboard has the facility of Audio Noise Guard with High Quality Audio Capacitors and Realtek® GbE LAN with cFosSpeed Internet Accelerator Software.
