| CPU |
- Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
- L3 cache varies with CPU
|
| Chipset |
- Intel® H470 Express Chipset
|
| Memory |
- Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
- Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB |
| Audio |
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
|
| LAN |
- Intel® GbE LAN chip (1 Gbit/100 Mbit)
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x16
- 2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols. |
| Storage Interface |
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
- Intel® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols. |
| USB |
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x RGB LED strip header
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
|

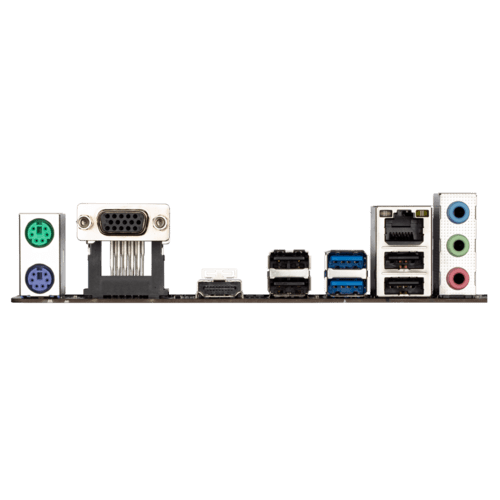

| Back Panel Connectors |
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
|
| I/O Controller |
- iTE® I/O Controller Chip
|
| H/W Monitoring |
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features |
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
- Support for Q-Flash
- Support for Xpress Install
|
| Bundled Software |
- Norton® Internet Security (OEM version)
- cFosSpeed
|
| Operating System |
- Support for Windows 10 64-bit
|
| Form Factor |
- Micro ATX Form Factor; 22.6cm x 18.5cm
|
| Remark |
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
|

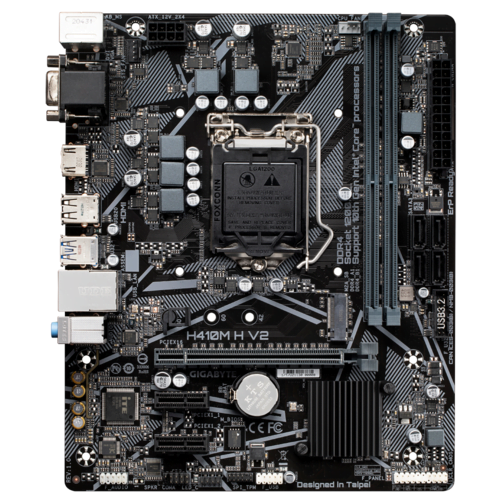

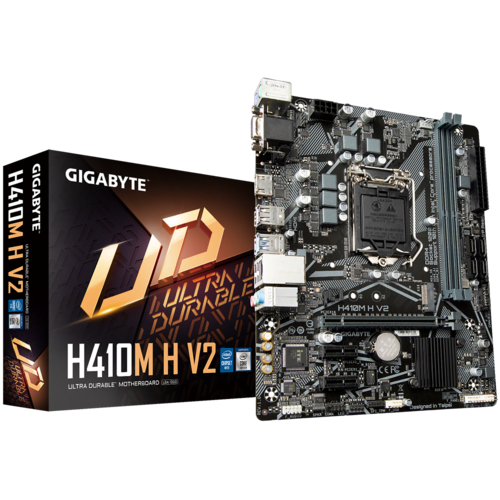

Gigabyte H410M H V2 Motherboard
The H410M S2H V2 LGA 1200 Micro-ATX Motherboard from GIGABYTE. Designed for anyone building around Intel 9th and 10th Gen processors, you can leverage power for gaming-focused components or business-centric purposes.
Gigabyte H410M H V2 Motherboard Micro-ATX form factor motherboard features the Intel H470 chipset, giving you an LGA 1200 socket, two DDR4 RAM slots, four SATA III ports, and a single M.2 interface, working together to enhance your system's overall performance for work and play. One PCIe 3.0 x16 and two PCIe 3.0 x1 slots allow you to install various graphics and utility cards. Equip your rig with a range of peripherals with USB 3.1 Gen 1 Type-A ports for resource-demanding devices such as external drives and interfaces, while USB 2.0 Type-A allows you to use low-powered peripherals like mice and keyboards. Connect to your wired network with Gigabit Ethernet LAN, essential for competitive online gaming and streaming your favorite media.
Connectivity
Maximize your system's potential with a single M.2 NVME PCIe Gen 2 x4 connector, allowing you to use various solid-state drives with enhanced read and write capabilities suitable for work or play. Intel Gigabit LAN uses the Fos Speed network traffic management application that improves latency and maintains low ping times for better responsiveness, ideal for competitive online gaming or media streaming. D-Sub, DVI-D, and HDMI outputs offer high-definition visuals suitable for single- or multi-display setups.
Cooling
The Gigabyte H410M H V2 Motherboard A is designed to take advantage of thermal enhancements that provide significant cooling solutions for your rig. Smart Fan 5 layout leverages four temperature sensors to ensure your components are receiving the proper cooling. Combined with an intuitive UI, you can fine-tune your cooling experience to your liking. Fan Stop turns your fans off when temperatures are under a specific threshold and can be customized. A Hybrid fan header enables you to use various air and liquid cooling components to keep your system running efficiently.
Audio
Gigabyte H410M H V2 Motherboard use High-end audio capacitors deliver high-fidelity audio, providing deep immersive sound suitable for your games and media. Audio noise guard separates the board's sensitive analog audio components from potential noise pollution at the PCB level for clear sound.
Ultra-Durable Design
GIGABYTE's double-locking bracket secures heavier graphics cards using an enhanced retention system that utilizes specialized pins and additional solder points for a stronger bracket. By using anti-sulfur resistors, GIGABYTE prevents your board from damage caused by chemical changes within on-board components. Gigabyte H410M H V2 Motherboard use Glass fabric Printed Circuit Board (PCB) repels moisture caused by humid and damp conditions, reducing potential shorts from damaging your components.
Power Design
Anti-surge protection is built right into the board, preventing damage from power fluctuations. Low RDS(on) MOSFETs reduce energy wastage, enhancing energy savings without impacting system performance.
GIGABYTE BIOS & Applications
Setting up and adjusting your build has been simplified with a streamlined BIOS menu, giving users various configuration settings for newcomers and advanced users. The GIGABYTE APP center enables you download additional utility applications and drivers with ease. Easy Tune allows you to fine-tune your system settings such as memory clocks and voltages within a Windows environment. You can update your system's BIOS from within Windows with @BIOS software. Monitor your rig's status down to the component level with System Information Viewer, feeding you information for enhanced system management.
