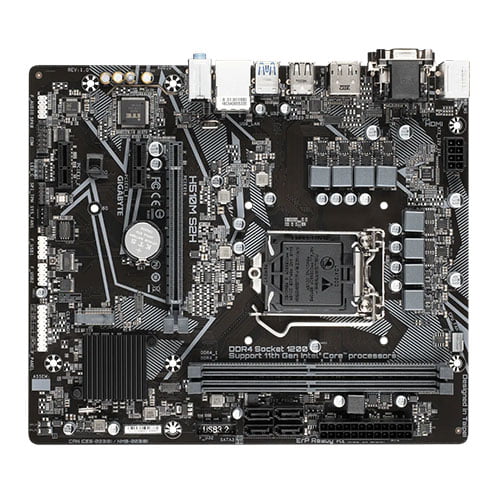

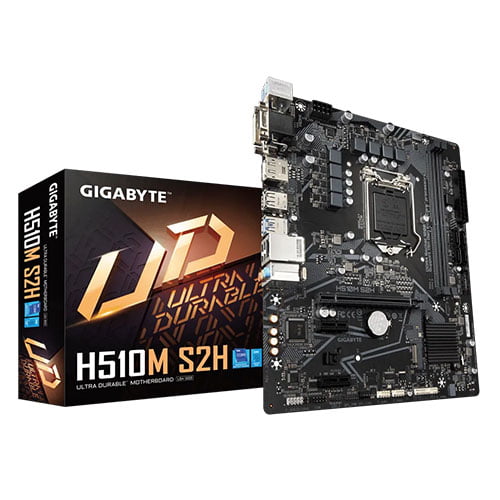

Gigabyte H510M S2H Intel Ultra Durable Motherboard
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
High Current Support - Each fan headers support PWM and DC fan and Water-cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
Precision Control - Up to 7 temperature/fan speed control points for precise fan curve
Dual Curve Mode - Slope/Stair dual mode for different user scenario
Fan Stop - Fan can stop completely below users' specified temperature point
6+2 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- 6+2 Phases Low RDS (on) MOSFETs
- Solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.
Fan Stop
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Single 32GB Support
The maximum memory capacity on the Gigabyte H510M S2H Motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore, with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
High-End Audio Capacitors
Gigabyte H510M S2H Motherboard use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high-fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
Gigabyte H510M S2H Motherboard feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Exclusive Realtek 8118 Gaming LAN
Gigabyte H510M S2H Motherboard use Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen3 x4 2280 M.2 Connector
Gigabyte H510M S2H Motherboard is focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

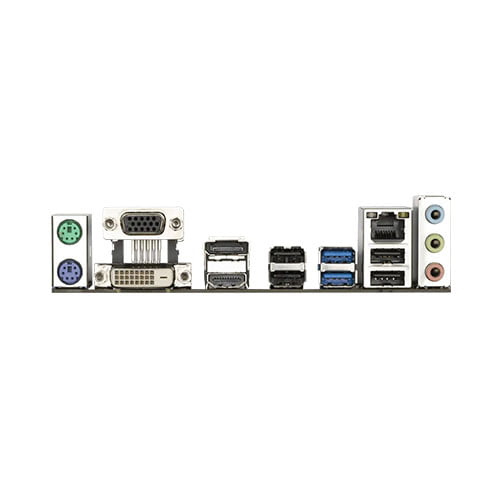

High-Definition Digital Outputs
Enjoy true HD display capability using the most commonly integrated digital output technologies on today's HD displays and TVs.
Solid Pin Power Connectors
Gigabyte H510M S2H Intel Ultra Durable Motherboard feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra-durable and longer lifespan
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
