| Basic Information |
| Supported CPU |
Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
| Chipset |
Intel Z490 Express Chipset |
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| Expansion Slots |
| PCI |
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI) |
| M.2 Socket |
x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB) |
| Memory |
| Type |
Dual channel memory architecture |
| Slots |
4 x DDR4 DIMM |
| Supported Memory |
Intel Core i9/i7 processors:
Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Intel Core i5/ i3/ Pentium/ Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Mamory |
128 GB |
| Graphics |
| Graphics |
Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Max Shared Memory |
512MB |
| Connector & Ports |
| HDMI |
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| USB (s) |
2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp
Chipset+Intel Thunderbolt 3 Controller:
2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) |
1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1)
1 x Intel GbE LAN chip (1 Gbit/100 Mbit) (LAN2)
Intel Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage |
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready |
| Audio |
Realtek ALC1220-VB codec
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out |
| Internal I/O Ports |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x temperature sensor headers
1 x Clear CMOS jumper
1 x Q-Flash Plus button |
| Warranty Information |
| Manufacturing Warranty |
03 Years |
| Others |
| Special Features |
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install |

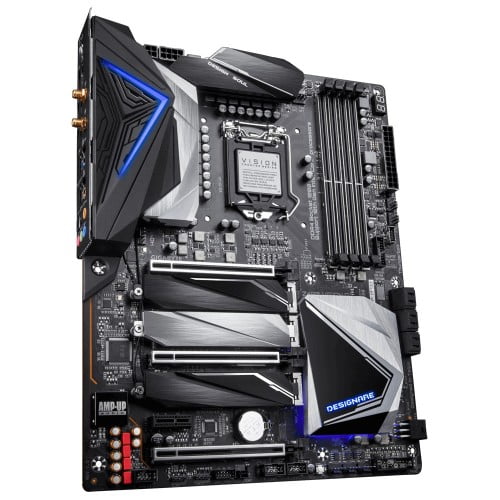

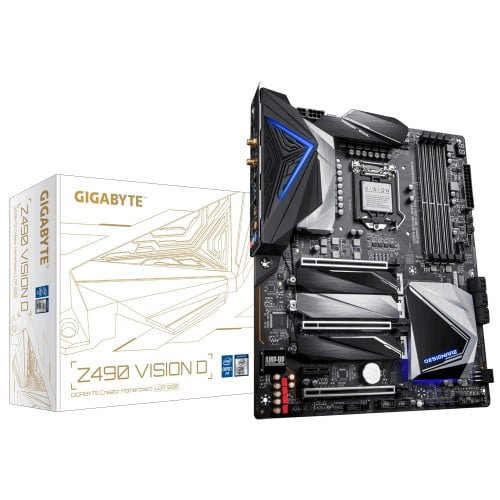

GIGABYTE Z490 VISION D 10TH GEN ATX MOTHERBOARD
The Gigabyte Z490 Vision D LGA 1200 ATX Motherboard in your desktop computer system build. Designed for creative professionals, this ATX motherboard is powered by the Intel Z490 chipset and supports 10th generation Intel processors with the LGA 1200 socket. It takes full advantage of the PCIe 3.0 data bandwidth, GIGABYTE Z490 VISION D MOTHERBOARD with support for PCIe 4.0 CPUs, to deliver high performance for tasks such 3D rendering, video editing, and more. Up to 128GB of dual-channel DDR4 RAM, reaching 4400 MHz when overclocked, can be installed across four memory slots. The motherboard also features advanced cooling and supports up to three M.2 SSDs and six SATA III storage drives with Intel Optane, which can be put into RAID 0, 1, 5, or 10 configurations. Its three PCIe 3.0 x16 slots are designed to support professional-grade graphics cards and can accommodate 2-Way and Quad-GPU NVIDIA SLI and AMD CrossFireX configurations to maximize frame rates, connecting 4K monitors, and accelerate video rendering times. Alternatively, the built-in HDMI port allows you to take advantage of integrated CPU graphics. An additional PCIe 3.0 x1 slot is available for compatible expansion cards.
You can also daisy chain compatible monitors, external storage drives, and other devices to the Thunderbolt 3 ports for a maximum data transfer rate of 40 Gb/s. The DisplayPort input allows you to connect external graphics cards to external monitors and high-end drawing tablets through the Thunderbolt 3 port. GIGABYTE Z490 VISION D MOTHERBOARD use USB 3.2 Gen 2 Type-A and Type-C ports allow you to transfer data from compatible peripherals at up to 10 Gb/s. Enjoy fast network connections using the Gigabit and 2.5 Gigabit Ethernet ports in addition to the built-in 802.11ax Wi-fi, which can wirelessly transfer data at up to 2.4 Gb/s with compatible devices. The GIGABYTE Z490 VISION D MOTHERBOARD also delivers vibrant 7.1-channel surround sound Realtek ALC1220-VB audio codec. You can customize your computing experience using the addressable RGB headers to connect light strips, which can be synced with other Gigabyte RGB Fusion 2.0-compatible peripherals such as mice and keyboards using the desktop software or mobile app. Windows 10 64-bit is required to take advantage of all the motherboard's features.
