| CORE SPECIFICATIONS |
| Edition |
Z590 AORUS MASTER |
| Form Factor |
ATX |
| CPU Socket |
1200 |
| Chipset |
Intel Z590 |
| RAM MEMORY SUPPORT |
| Memory Type |
DDR4 |
| Memory Channel |
Dual (2) |
| Memory Type (ECC) |
Non-ECC |
| Memory Type (R/U) |
UDIMM (Unbuffered) |
| Memory Speed (Mhz) |
- DDR4 – 2133
- DDR4 – 2400
- DDR4 – 2666
- DDR4 – 2933
- DDR4 – 3000
- DDR4 – 3200
|
| Max. Memory Capacity |
128GB (4x32GB) |
| AUDIO |
| Audio |
Realtek ALC1220-VB 7.1 HD Audio |
| GRAPHICS SUPPORT |
| Primary GPU Interface |
PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible] |
| NVIDIA SLI Support |
Not Supported |
| AMD CrossFire Support |
2-Way CrossFire |
| Integrated Graphics |
Requires Processor Graphics or Discrete GPU |
| On-Board Graphics Connectors |
DisplayPort 1.2 |
| INTERNAL CONNECTIVITY |
| Expansion Slots |
- 2 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
- 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
- 1 x PCIe 3.0 x16 (x4 Bandwidth)
- 1 x PCIe 4.0 x16
- 1 x PCIe 4.0 x16 (x8 Bandwidth)
- 6 x SATA 6GB/s
|
| SATA Support |
SATA3 / M.2 |
| RAID Support via |
| Storage Mode Support |
- RAID 0
- RAID 1
- RAID 10
- RAID 5
|
| Internal I/O |
- 1 x 24-pin (Power)
- 4 x 4-pin CHA_FAN connector
- 1 x 4-pin CPU Fan Connector
- 1 x 4-pin CPU OPT Fan Connector
- 4 x 4-pin Water Pump Connector
- 2 x 8-pin (Power)
- 2 x Addressable Digital RGB Header
- 2 x BIOS switches
- 1 x Clear CMOS jumper
- 1 x Front Panel Audio Header
- 1 x Front Panel Connector
- 3 x M.2
- 1 x Noise Detection Header
- 1 x Power button
- 1 x Reset Button
- 2 x RGB Header
- 6 x SATA III – 6Gb/s
- 2 x Temperature Sensor Header
- 2 x Thunderbolt AIC Connector (5-pin)
- 1 x TPM 2.0 Header
- 2 x USB 2.0 Header
- 1 x USB 3.2 Gen1 Header
- 1 x USB 3.2 Gen2 Type-C Front Panel Header
|
| EXTERNAL CONNECTIVITY |
| Network Interface Type |
- 802.11ax WiFi LAN
- Wired 10G LAN
|
| Network Chip/Modules |
- 1 x Aquantia GbE LAN (10Gb/5Gb/2.5Gb/1000Mb/100Mb)
- 1 x Intel Wi-Fi 6 AX210 (ax WiFi, BT5.2)
|

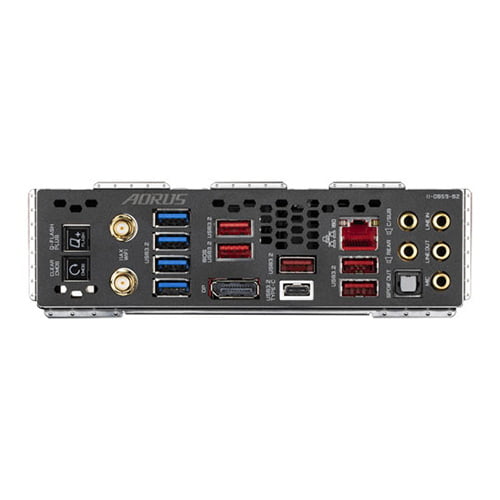

| Rear I/O Connectors |
- 1 x Central Speaker Out
- 1 x Clear CMOS Button
- 1 x DisplayPort
- 1 x Line In
- 1 x Line Out
- 1 x Mic-In
- 1 x Q-Flash Plus Button
- 1 x Rear Speaker Out
- 1 x RJ-45
- 1 x S/PDIF-Out (Optical)
- 4 x USB 3.2 Gen1 Type-A
- 5 x USB 3.2 Gen2 Type-A
- 1 x USB 3.2 Gen2x2 Type-C
- 2 x WiFi Antenna connectors
|

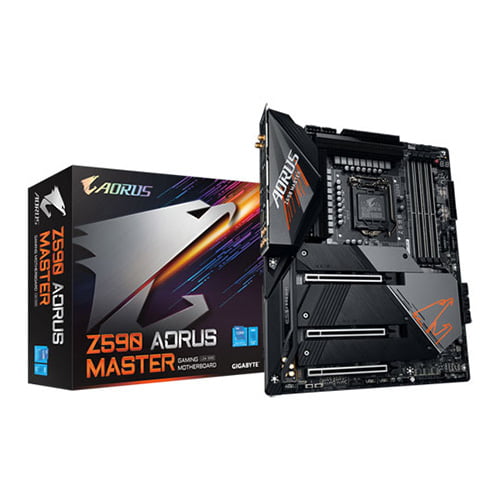

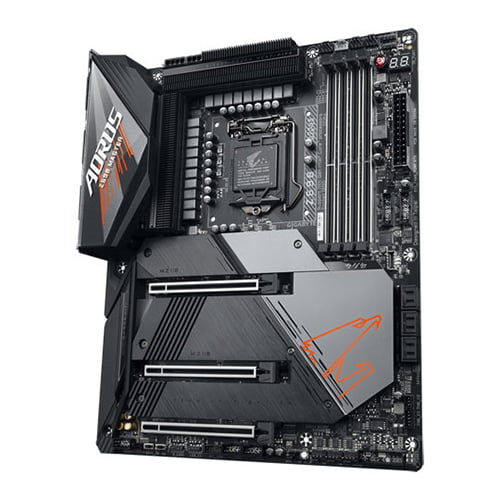

Gigabyte Z590 Aorus Master Motherboard
EXTREME POWER DESIGN
To unleash the full potential of the latest Intel 11th Gen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Gigabyte Z590 Aorus Master Motherboard is a true beast among motherboards.
UNPARALLELED PERFORMANCE
Gigabyte Z590 Aorus Master Motherboard understands that our customer won’t stop chasing better computer performance, and strive to deliver that in our products. For the Z590 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z590 are made possible by the use of PCIe 4.0-ready components.
NEXT GENERATION CONNECTIVITY
Gigabyte Z590 Aorus Master Motherboard use A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590 AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
HI-FI AUDIO SYSTEM
To Elevate Your Sound Experience with ESS SABRE Audio DAC and DTS.
