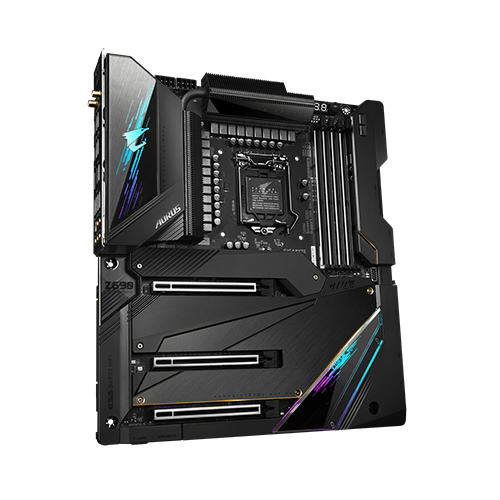

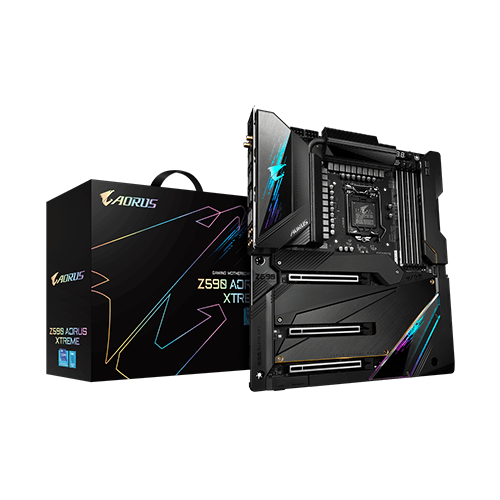

GIGABYTE Z590 AORUS XTREME LGA 1200 EATX MOTHERBOARD

GIGABYTE Z590 AORUS XTREME LGA 1200 EATX MOTHERBOARD
GIGABYTE Z590 AORUS XTREME LGA 1200 EATX MOTHERBOARD
GIGABYTE Z590 AORUS XTREME LGA 1200 EATX MOTHERBOARD
GIGABYTE Z590 AORUS XTREME LGA 1200 EATX MOTHERBOARD
GIGABYTE Z590 AORUS XTREME LGA 1200 EATX MOTHERBOARD
GIGABYTE Z590 AORUS XTREME LGA 1200 EATX MOTHERBOARD
GIGABYTE Z590 AORUS XTREME LGA 1200 EATX MOTHERBOARD
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: Gigabyte
  • Model: Z590-1200
  • SKU: Z590-1200

Discontinued

Add to Wish List Compare this Product

Key Features

    • Model: Z590 Aorus Xtreme
    • Supports 11th and 10th Gen Processors
    • Dual Channel Non-ECC Unbuffered DDR4
    • 20+1 Phases Digital VRM Solution
    • Tantalum Polymer Capacitors Array
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information

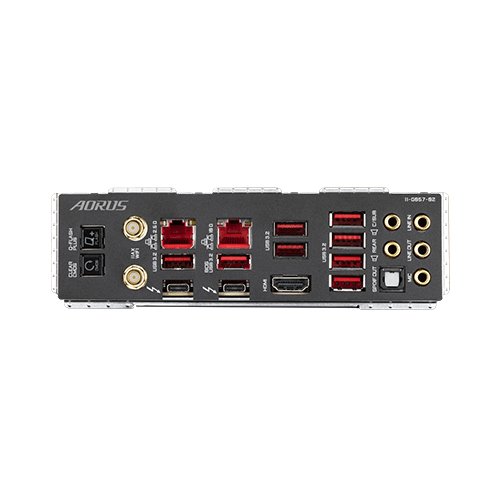

External I/O Ports 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 2 x Thunderbolt™ 4 connector (USB Type-C® port, with USB 3.2 Gen 2 support) 8 x USB 3.2 Gen 2 Type-A ports (red) 1 x HDMI port 2 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
LAN 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1) 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
Memory 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel® Core™ i9/i7 processors Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)* 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
USB port Chipset+Intel Thunderbolt™ 4 Controller: 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 2 Hubs: 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extension cable)
Main Features
Audio Realtek® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
BIOS 2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel Z590 Express Chipset
Form Factor E-ATX Form Factor; 30.5cm x 27cm
Supported CPU LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Graphics Specifications
Graphics Memory 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp (via single display output) * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.) Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Connector & ports
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 6 x system fan headers 2 x system fan/water cooling pump headers 1 x noise detection header 2 x integrated extension cable headers for addressable and RGB LED strips 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 headers 2 x temperature sensor headers 1 x power button 1 x reset button 1 x OC Ignition button 2 x BIOS switches Voltage Measurement Points
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors
Warranty Information
Warranty 03 Years

GIGABYTE Z590 AORUS XTREME LGA 1200 EATX MOTHERBOARD

GIGABYTE Z590 AORUS XTREME Motherboard Supports 11th and 10th Gen Intel Core Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs 20+1 Phases Digital VRM Solution with 100A Smart Power Stage Tantalum Polymer Capacitors Array XTREME MEMORY with SMT DIMM and Shielded Memory Routing Thermal Reactive Armor with Fins-Array II Heatsink Direct Touch Heat pipe II and Nano Carbon Baseplate Intel Thunderbolt 4 Onboard Onboard Intel WiFi 6E 802.11ax 2T2R & BT 5 with 2X AORUS Antenna Exclusively bundled Essential USB DAC 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC AQUANTIA 10GbE BASE-T LAN and Intel 2.5GbE LAN with cFosSpeed Exclusively bundled AORUS PRO Gen4 AIC Adaptor Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards II RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design Support Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors Hybrid Fan Headers with FAN STOP and Noise Detection Q-Flash Plus Update BIOS without Installing the CPU, Memory and GPU UNPARALLELED PERFORMANCE GIGABYTE Z590 AORUS XTREME Motherboard full potential of the new Intel 11th Gen CPU, the motherboard requires the best CPU power, memory, and IO design. With the best quality components and GIGABYTE R&D design capability, Z590 AORUS XTREME is a true beast among motherboards. THERMAL REACTIVE ARMOR Z590 AORUS XTREME Motherboard uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability, and low temperatures under full load application and gaming. CONNECTIVITY A Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology. Z590 AORUS XTREME provides all next-generation network, storage, and WIFI connectivity to keep you up to speed. PERSONALIZATION GIGABYTE Z590 AORUS XTREME Motherboard provides a full lighting effect and customization settings with outstanding aesthetics, enable enthusiasts to build gaming PC differently. ULTRA DURABLE GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to say, we use the best components we can find for the Z590 AORUS XTREME and reinforce every slot to make each of them solid and durable.
