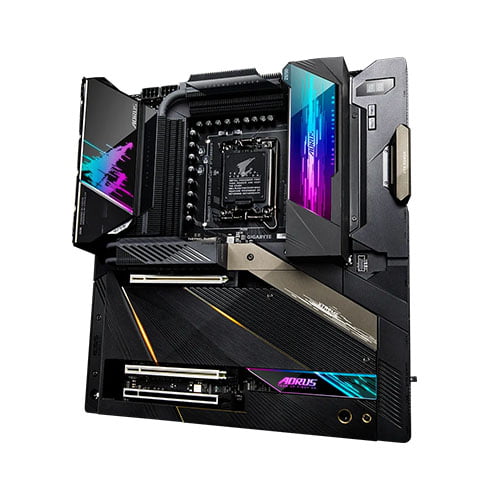

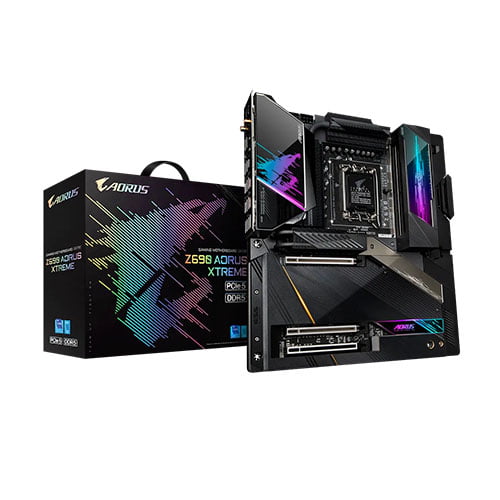

Gigabyte Z690 Aorus Xtreme 12th Gen Intel Motherboard

Name: Gigabyte Z690 Aorus Xtreme 12th Gen Intel Motherboard
Brand: Gigabyte
SKU: Z690-ATX
Availability: OutOfStock

Gigabyte Z690 Aorus Xtreme 12th Gen Intel Motherboard

Based on 0 reviews. - Write a review

Discontinued

Stock: Discontinued
Brand: Gigabyte
Model: Z690-ATX
SKU: Z690-ATX

Discontinued

Add to Wish List Compare this Product

Key Features

- Essential USB Hex Audio Card
- 4 x Ultra-Fast NVMe
- RGB FUSION 2.0
- Hybrid Fan Headers

View more details

Chat Through

Messenger

Contact for Bulk Quantity: 01771833944

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

General Information
CPU	LGA1700 socket: Support for 12th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4_1) (The PCIEX4_1 slot conforms to PCI Express 3.0 standard.)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 1 x noise detection header 1 x AORUS RGB Memory Armor power header 2 x addressable LED strip + RGB LED strip combo extension cable headers 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 2 x temperature sensor headers 1 x power button 1 x reset button
LAN	Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Memory	Support for DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Operating System	Support for Windows 10 64-bit
USB	Chipset+Intel Thunderbolt 4 Controller
Main Features
Audio	1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips DTS® Sound Unbound™ High Definition Audio 2-channel Support for S/PDIF Out
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel Z690 Express Chipset
Form Factor	E-ATX Form Factor; 30.5cm x 28.5cm

Gigabyte Z690 Aorus Xtreme Motherboard

With technology moving so fast, Gigabyte Z690 Aorus Xtreme Motherboard still keeps up with the latest trends and provides our customers with advanced features and the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solutions, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. DDR5 delivers 50% improvement compared to the last generation. DDR5 massively elevates the system-level performance. DDR5 provides more bandwidth to keep up with the higher CPU core count bandwidth requirement. The new memory architecture also reduces power consumption. GIGABYTE Z690 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability, and low temperatures under full load application and gaming. Let you experience ultimate connection flexibility and blazing data-transfer speed with the next-generation network, storage, and WIFI connectivity. It has several useful and intuitive software to help users to control every aspect of the motherboard and provide customizable lighting effects with outstanding aesthetics to fit your unique personality. its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable. Features:
