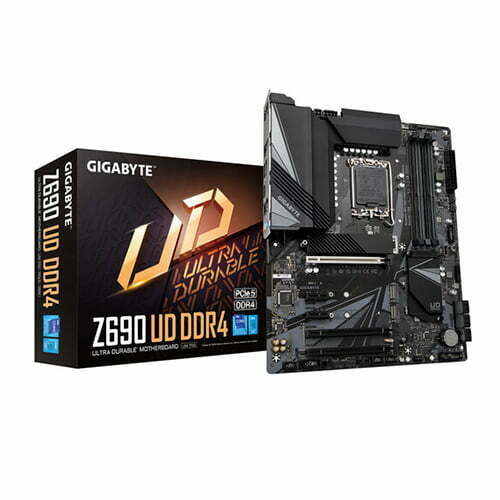

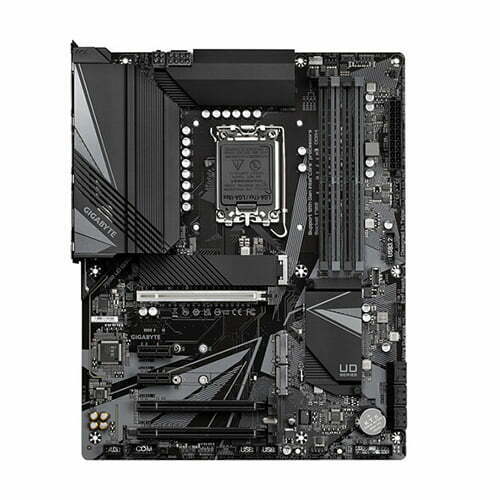

Gigabyte Z690 UD DDR4 Motherboard
Gigabyte Z690 UD DDR4 Motherboard designed to leverage the power of Intel 12th Gen processors, the Z690 UD provides both durability and reliability suitable for a wide range of components, allowing you to create gaming-, creative-, or business-focused systems. At the heart of this build are the Intel Z690 chipset and the LGA1700 socket allowing you to install a wide range of Intel 12th Gen processors. Quickly access your digital library with six SATA III ports and three M.2 interfaces. Experience enhanced multitasking capabilities with four dual-channel DDR4 slots giving you support for memory modules up to 5333 MHz overclocked. A single PCIe 5.0 x16 slot is available for resource-hungry components such as graphics cards, while an array of PCIe 3.0 slots are available for utility cards. Connect your external drives and other demanding peripherals with USB 3.2 Gen 1 and Gen 2 Type-A ports. A single USB 3.2 Gen 2x2 port provides up to 20 Gb/s data transfer speeds, ideal for high-powered devices such as mass storage arrays and more. Connect to your network and experience immersive sound with a Realtek 2.5 Gigabit Ethernet port and 7.1-channel audio, respectively.
PCIe Expansion Slots
Connect a wide range of graphics and utility cards with an array of PCIe expansion slots. A single PCIe 5.0 x16 slot offers enhanced speeds up to 128 GB/s. Two PCIe x16 slots conform to the 3.0 standard with each slot running at x4 and x1 speeds, respectively. Two PCIe 3.0 x1 slots are also available for additional card support.
Intel 12th Gen Compatible
The LGA1700 socket allows you to pick from a wide range of Intel 12th Gen processors which utilize a hybrid design, ideal for your projects and games.
Electrical Reliance
Direct 16+1+2 Digital VRM design with 60A Power Stage utilizes Tantalum Polymer Capacitors to balance electrical fluctuations and provide ample power to manage your system's needs. Power stage maximum capacity is based on VCORE phases.
Thermal Design
The enhanced thermal design provides ample cooling with VRM heatsinks and enlarged M.2 thermal guards. Smart Fan 6 application uses multiple temperature sensors and hybrid fan headers with Fan Stop to manage heat and allow you to adjust heat threshold for your system for efficient cooling.
Enhanced Performance Speeds
Gigabyte Z690 UD DDR4 Motherboard includes various features that allow you to experience high-speed performance suitable for work and play. Three PCIe 4.0 M.2 slots allow you to experience faster storage access. Install Thunderbolt-enabled expansion cards with dedicated headers, unlocking daisy-chaining capabilities and data transfer speeds up to 40 Gb/s.
Customization
Personalize your system in a flood of color and effects with RGB FUSION 2.0 software, allowing you to utilize advanced LED and RGB strips to add a sense of personality to your rig.
Q-Flash Plus
Q-Flash Plus allows you to update your BIOS settings without installing the CPU, memory, and GPU, enabling easier management and upgrading.
