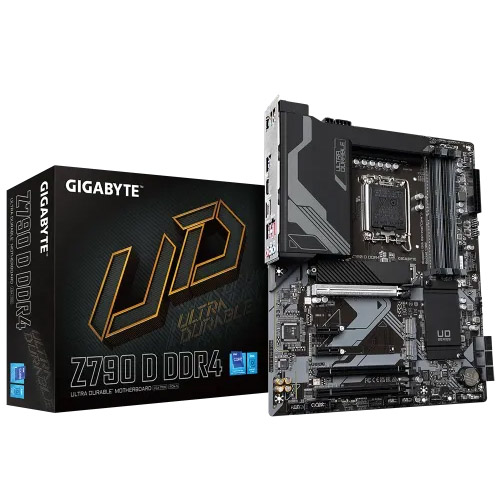

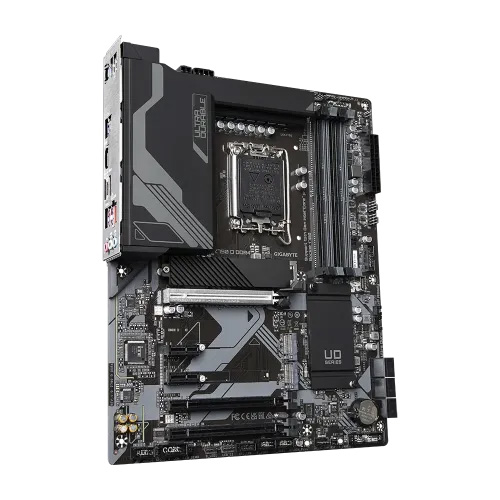

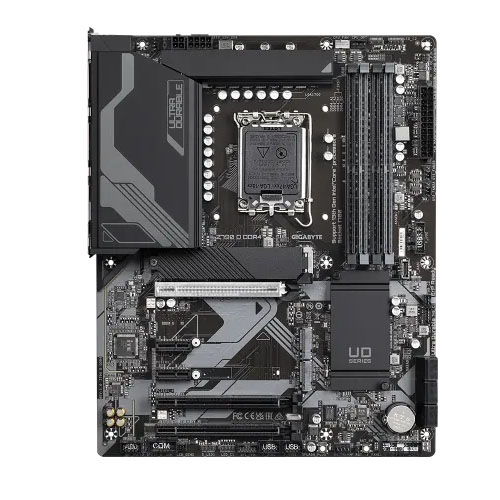

GIGABYTE Z790 D DDR4 13th & 12th Gen ATX Motherboard
-5 %
GIGABYTE Z790 D DDR4 13th & 12th Gen ATX Motherboard
Discontinued
- Stock: Discontinued
- Brand: Gigabyte
- Model: Z790 D DDR4
Chat Through
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Quick Compare
| Product Details | ||||
| Product | GIGABYTE Z790 D DDR4 13th & 12th Gen ATX Motherboard | MSI PRO B860-P WIFI LGA 1851 ATX Motherboard | Gigabyte Z690 UD AX 12th Gen Intel Motherboard | MSI B860M GAMING PLUS WIFI6E Intel LGA1851 DDR5 Micro-ATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | Z790 D DDR4 | PRO B860-P WIFI | Z690UDAX | B860M GAMING PLUS WIFI6E |
| Brand | Gigabyte | MSI | Gigabyte | MSI |
| Availability | Discontinued | Discontinued | Discontinued | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |

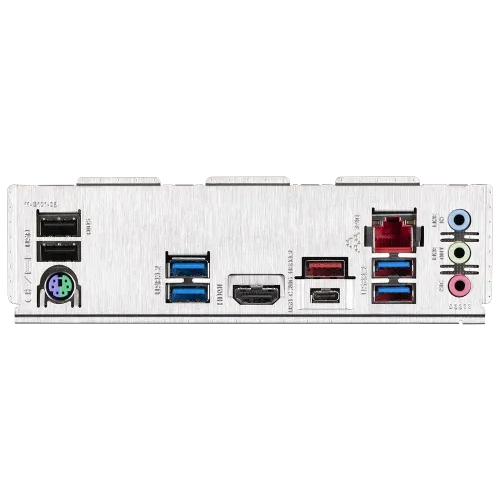

| Summary | GIGABYTE Z790 D DDR4 13th & 12th Gen ATX MotherboardThe GIGABYTE Z790 D DDR4 13th & 12th Gen ATX Motherboard is a motherboard that supports the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors with an LGA1700 socket. It uses the Intel Z790 Express Chipset and has a single 256 Mbit flash BIOS with licensed AMI UEFI BIOS. The motherboard has an ATX form factor, measuring 30.5cm x 24.4cm.The GIGABYTE Z790 D DDR4 motherboard has Realtek Audio CODEC with High Definition Audio, and it supports 2/4/5.1/7.1-channel audio. The motherboard has an HDMI port and a DisplayPort for graphics, which support a maximum resolution of 4096x2160@60 Hz and 4096x2304@60 Hz, respectively. The HDMI port supports HDMI 2.0 version and HDCP 2.3, while the DisplayPort supports DisplayPort 1.2 version and HDCP 2.3.In terms of expansion slots, the motherboard has one PCI Express x16 slot supporting PCIe 5.0 and running at x16 (PCIEX16), one PCI Express x16 slot supporting PCIe 4.0 and running at x4 (PCIEX4), one PCI Express x16 slot supporting PCIe 3.0 and running at x1 (PCIEX1_4), and two PCI Express x1 slots supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3). It also supports AMD CrossFire technology on PCIEX16 and PCIEX4.The GIGABYTE Z790 D DDR4 motherboard has four DIMM sockets that support DDR4 memory. It supports a maximum of 128 GB of system memory, with a single DIMM capacity of 32 GB. The memory speed supported ranges from 2133 MHz to 5333 MHz. It also supports Extreme Memory Profile (XMP) memory modules.For storage, the motherboard has one M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) supported by the CPU, and two M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) and six SATA 6Gb/s connectors supported by the chipset. The motherboard also supports RAID 0, RAID 1, RAID 5, and RAID 10 for both NVMe SSD storage devices and SATA storage devices.The motherboard has several USB ports, including one USB Type-C port on the back panel with USB 3.2 Gen 2x2 support, one USB Type-C port with USB 3.2 Gen 1 support available through the internal USB header, one USB 3.2 Gen 2 Type-A port (red) on the back panel, six USB 3.2 Gen 1 ports (four ports on the back panel, two ports available through the internal USB header), and six USB 2.0/1.1 ports (two ports on the back panel, four ports available through the internal USB headers).The motherboard also has a Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) for LAN connectivity. It has several internal I/O ports, including a 24-pin ATX main power connector, an 8-pin ATX 12V power connector, a 4-pin ATX 12V power connector, a CPU fan header,FeaturesSupports 13th and 12th Gen Intel Core processorsDual-channel DDR4 memory architecture with support for up to 128GB of RAMAdvanced Thermal Design with Fins-Array II heatsink, direct touch heatpipe, and multiple temperature sensors to keep your system cool under heavy loadsDual NVMe PCIe 4.0/3.0 x4 M.2 connectors with thermal guards for high-speed storage solutionsMultiple connectivity options including USB Type-C, USB 3.2 Gen2x2, and Thunderbolt 4Audio Boost 5 technology with Nahimic 3 audio enhancer for high-quality audio outputAdvanced networking capabilities with Intel 2.5GbE LAN, Wi-Fi 6E, and Bluetooth 5.2RGB Fusion 2.0 with addressable LED and RGB LED headers for customizable lighting effectsQ-Flash Plus button for easy BIOS updating without a CPU, memory, or graphics card installedSmart Fan 6 with multiple temperature sensors and hybrid fan headers for precise fan control... | MSI PRO B860-P WIFI LGA 1851 ATX MotherboardMSI PRO B860-P WIFI LGA 1851 ATX Motherboard is a high-performance motherboard designed to support Intel Core Ultra Processors (Series 2) with the Intel B860 chipset. This ATX motherboard is built for stability and efficiency, making it an ideal choice for both professionals and gamers looking for a reliable platform.Performance & MemoryThe motherboard supports DDR5 memory, featuring four DIMM slots with speeds ranging from 4800 MT/s (JEDEC) up to 8800+ MT/s (OC), and a maximum capacity of 256GB. With advanced memory support, users can experience faster performance, better multitasking, and enhanced responsiveness.Expansion & StorageFor expansion, it comes with four PCI-E slots, including a PCIe 5.0 x16 slot from the CPU and multiple PCIe 4.0 slots, ensuring compatibility with the latest GPUs and expansion cards. It offers three M.2 slots for ultra-fast NVMe SSDs, with one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, along with four SATA 6G ports for additional storage options. The motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 configurations for both SATA and M.2 NVMe storage devices.Connectivity & PortsEquipped with Realtek 8126 5Gbps LAN, the MSI PRO B860-P ensures high-speed and stable network connectivity, making it ideal for gaming, streaming, and professional workloads. The motherboard features a wide range of USB ports, including USB 10Gbps Type-C, multiple USB 5Gbps Type-A, and USB 2.0 ports, providing seamless connectivity for various peripherals. For display output, it supports HDMI 2.1, DisplayPort 1.4, and a Thunderbolt 4 port, delivering ultra-high-definition visuals with resolutions up to 8K at 60Hz or 4K at 120Hz, making it an excellent choice for high-resolution displays and multi-monitor setups.Durability & WarrantyBuilt with high-quality components, the MSI PRO B860-P ensures long-term durability and efficiency. It includes multiple fan headers and RGB connectors for enhanced cooling and aesthetics. Backed by a 3-year manufacturing warranty, this motherboard is a solid choice for building a high-performance system... | Gigabyte Z690 UD AX Motherboard Supports 12th Gen Intel Core Series Processors Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs DDR5 MEMORY Design with SMD DIMM and Shielded Memory Routing Direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor Ultra Performance VRM Heatsinks Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna Fast 2.5GbE LAN with Bandwidth Management 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards SuperSpeed USB 3.2 Gen 2x2 TYPE-C delivers up to 20Gb/s transfer speeds RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card [ninja_tables id="47220"].. | MSI B860M GAMING PLUS WIFI6E Intel LGA1851 DDR5 Micro-ATX Motherboard The MSI B860M GAMING PLUS WIFI6E is a compact Micro-ATX motherboard powered by the Intel B860 chipset and built for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. It gives mainstream gamers a well-equipped platform with gaming-focused connectivity in a smaller footprint. A 12+1+1+1 Duet Rail Power System feeds the processor through 8+4-pin CPU power connectors, and four DDR5 slots support up to 256GB of memory with overclocked speeds up to 8800 MT/s. For storage, the board offers three M.2 slots — including a PCIe 5.0 x4 slot connected to the CPU — and four SATA 6G ports. Graphics cards get a PCIe 5.0 x16 slot, while networking combines Intel Killer E5000 5Gbps LAN with Wi-Fi 6E and Bluetooth 5.3. HDMI 2.1 and DisplayPort 1.4 outputs are available for integrated graphics. Why Choose the MSI B860M GAMING PLUS WIFI6E Intel LGA1851 DDR5 Micro-ATX Motherboard? Intel B860 Chipset for Intel Core Ultra Processors (Series 2) on LGA 1851. 12+1+1+1 Duet Rail Power System for steady power delivery. 4x DDR5 Slots supporting up to 256GB and up to 8800 MT/s (OC). 3x M.2 Slots with one PCIe 5.0 x4 slot for ultra-fast SSDs. PCIe 5.0 x16 Slot for modern graphics cards. Intel Killer E5000 5Gbps LAN for high-speed wired gaming. Wi-Fi 6E and Bluetooth 5.3 for reliable wireless connectivity. Micro-ATX Form Factor fits compact and mid-size gaming cases. Who Should Buy the MSI B860M GAMING PLUS WIFI6E Intel LGA1851 DDR5 Micro-ATX Motherboard?This board is a great fit for gamers building a compact Intel Core Ultra system who still want four memory slots, PCIe 5.0 support and 5Gbps networking. It works well in Micro-ATX cases for gaming, streaming, study and everyday productivity builds. Explore more MSI Intel motherboard options at Ultra Technology. Build a Better PC with the B860M GAMING PLUS WIFI6EFor a small-form gaming build with modern features, the MSI B860M GAMING PLUS WIFI6E delivers strong value. Its PCIe 5.0 graphics and storage support keep your system ready for future upgrades. Browse our full range of Intel motherboard products to complete your build. Why Buy from Ultra Technology? Ultra Technology is your trusted destination for authentic tech products at competitive prices in Bangladesh. We provide genuine products from authorized distributors and reputable brands to ensure quality and reliability. Our knowledgeable team helps customers choose suitable products according to their needs and budget. With nationwide delivery, responsive customer service, and dependable after-sales support, Ultra Technology is committed to providing a smooth and hassle-free shopping experience. Frequently Asked Questions (FAQ) Q1: What socket does the MSI B860M GAMING PLUS WIFI6E use?A: It uses the Intel LGA 1851 socket for Intel Core Ultra Processors (Series 2). Q2: What is the maximum RAM capacity?A: It supports up to 256GB DDR5 across 4 slots. Q3: What wireless connectivity does it have?A: It includes Wi-Fi 6E and Bluetooth 5.3. Q4: What LAN speed does it support?A: It features Intel Killer E5000 5Gbps LAN... |
