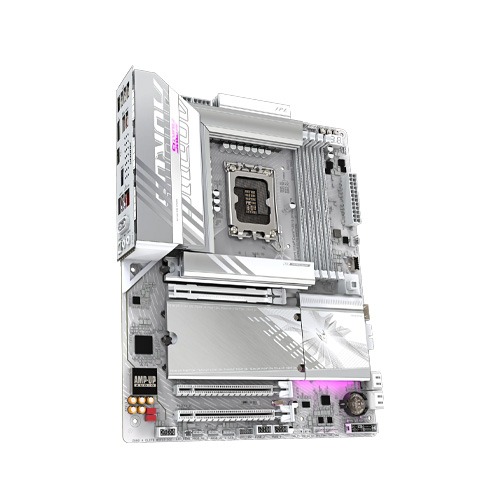

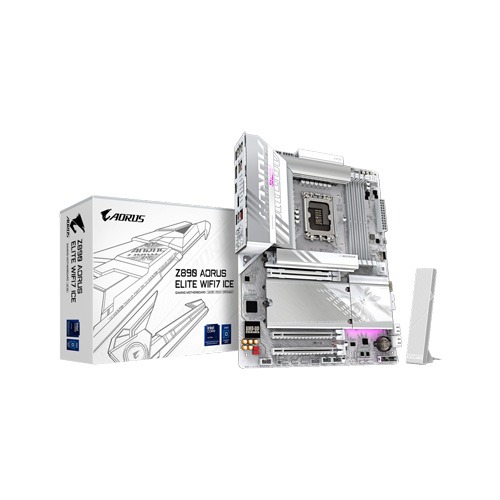

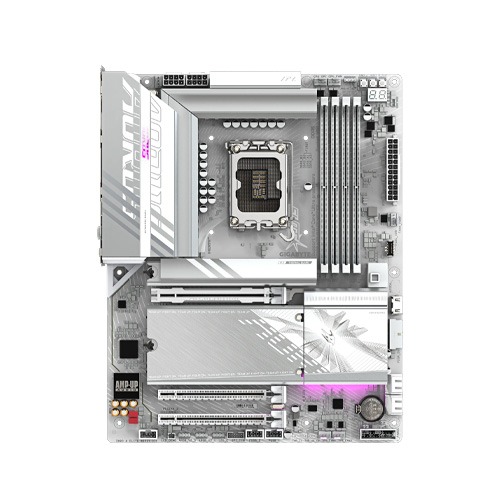

GIGABYTE Z890 AORUS Elite WIFI7 ICE Motherboard








- Stock: In Stock
- Brand: Gigabyte
- Model: Z890 AORUS ELITE WIFI7 ICE
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 16+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- 4*DDR5 with XMP Memory Module Support
Generel information | |
Chipset Manufacturer | Intel® Z890 Express Chipset |
Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |

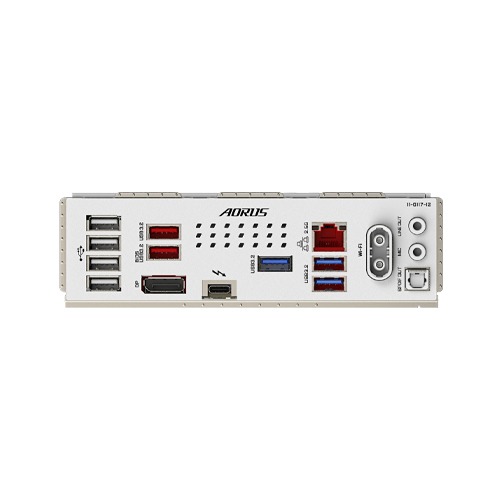

Back Panel Connectors | 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
Bios Information | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
I/O Controller | iTE® I/O Controller Chip |
Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
Operating System | Support for Windows 11 64-bit |
Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
USB | CPU: - 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel *Support up to 40Gbps with Thunderbolt devices *Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devices Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
Warranty Information | |
Warrantty | 3 Years |
GIGABYTE Z890 AORUS Elite WIFI7 ICE Motherboard
GIGABYTE Z890 AORUS Elite WIFI7 ICE Motherboard is a premium solution designed for gamers and high-performance users seeking ultimate power, speed, and stability. Built with the latest Intel® Z890 Express Chipset, this motherboard supports LGA1851 socket processors, including the Intel® Core™ Ultra series, ensuring top-tier performance for your system. With cutting-edge DDR5 memory support up to 256GB, users can experience blazing-fast speeds up to 9200MT/s with overclocking, making it ideal for multitasking, gaming, and heavy workloads.This motherboard is packed with advanced connectivity options, including PCIe 5.0 slots, allowing support for the latest GPUs and high-speed NVMe SSDs. The Thunderbolt™ 4 port provides fast data transfers and high-resolution display output, supporting up to 5120x2880@60Hz resolution for a stunning visual experience. Additionally, it features integrated Intel® HD Graphics support, delivering impressive video output through HDMI and DisplayPort 2.1.For networking, the GIGABYTE Z890 AORUS Elite comes with Realtek® 2.5GbE LAN and Wi-Fi 7 support for ultra-fast wireless connectivity. It features Bluetooth 5.4 for seamless device pairing, ensuring you're always connected without any interruptions. The motherboard also offers advanced audio capabilities with the Realtek® ALC1220 CODEC, delivering high-definition audio with support for 7.1-channel sound and DSD audio for immersive gaming and entertainment experiences.Built with durability in mind, this ATX form factor motherboard has a robust power delivery system and premium components to ensure stability under heavy loads. It includes multiple M.2 slots for fast storage solutions and addressable RGB headers for aesthetic customization.Ideal for gamers, content creators, and professionals, the GIGABYTE Z890 AORUS Elite WIFI7 ICE Motherboard offers top-notch performance, cutting-edge features, and unmatched reliability for building a powerful and future-proof PC.
Features
- Supports Intel® Core™ Ultra processors with LGA1851 socket
- DDR5 memory support up to 256GB, speeds up to 9200MT/s
- PCIe 5.0 & Thunderbolt™ 4 for faster GPU and SSD performance
- Realtek® 2.5GbE LAN and Wi-Fi 7 for ultra-fast connectivity
- Premium audio with Realtek® ALC1220 CODEC and 7.1 surround sound
- Multiple M.2 slots for high-speed storage expansion
- Advanced RGB lighting control with customizable effects
