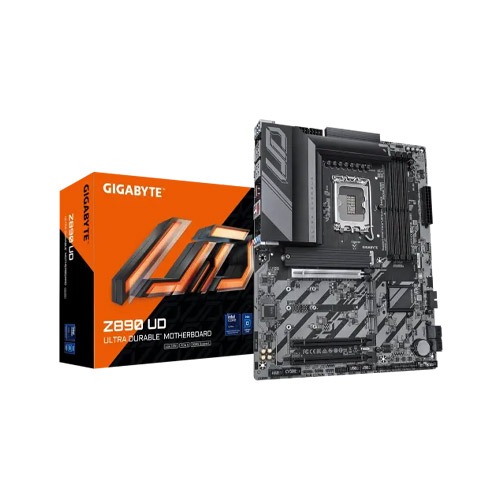

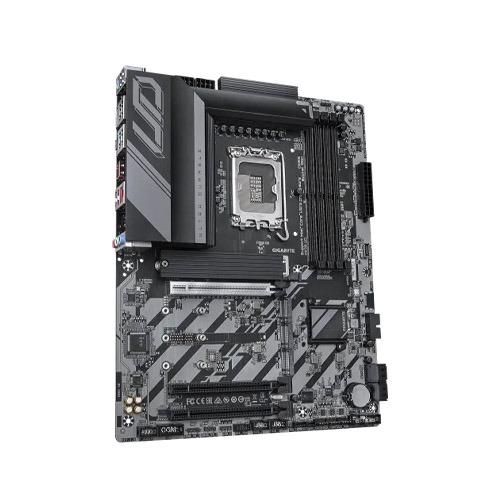

Gigabyte Z890 UD LGA 1851 ATX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: Z890 UD
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket
- Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9200 (O.C)
- Graphics Output: 1x USB4 USB Type-C, 1x DisplayPort
- Features: 4x M.2 slots, 2.5GbE LAN, USB4 Type-C with DP-Alt, DisplayPort
| General Information | |
| Type | DDR5 |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Display Port (s) | 1 x DisplayPort |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version |
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) |
| Maximum Memory Supported | up to 256 GB (64 GB single DIMM capacity) of system memory |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Slots | 4 x DIMM |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) |
| Main Features | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel Z890 Express Chipset |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU |
| Memory Specifications | |
| Supported Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
| Connector & ports | |
| Audio Jack | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
| Warranty Information | |
| Warrantty | 3 Year |
Gigabyte Z890 UD LGA 1851 ATX Motherboard
Gigabyte Z890 UD LGA 1851 ATX Motherboard is a premium choice for building a high-performance PC with next-generation Intel Core Ultra processors. Designed with Intel's Z890 chipset, this motherboard supports the LGA 1851 socket, providing optimal compatibility with cutting-edge CPUs for seamless computing and gaming experiences. The ATX form factor ensures a balanced layout for gaming rigs and professional workstations, offering robust features and excellent durability.This motherboard delivers enhanced speed with support for DDR5 memory modules up to 256GB, ensuring faster data transfers and superior multitasking. It features PCIe 5.0 and PCIe 4.0 slots for installing the latest GPUs and high-speed storage devices. With multiple M.2 connectors, users can achieve blazing-fast performance from their SSDs, making it ideal for gamers, content creators, and professionals.The Gigabyte Z890 UD also comes with a Realtek 2.5GbE LAN chip, ensuring faster network speeds for online gaming, streaming, or data-heavy tasks. The motherboard is equipped with USB4, USB 3.2 Gen 2, and USB Type-C ports, offering flexibility for connecting modern peripherals and high-speed external devices. It also supports multiple display outputs with DisplayPort and USB Type-C video outputs, capable of delivering resolutions up to 3840x2160 at 144Hz.The audio system features a high-quality Realtek Audio CODEC, delivering immersive sound for a superior gaming or entertainment experience. It also supports ARGB and RGB LED lighting headers, allowing users to customize the aesthetic of their PC build.With advanced cooling solutions, smart BIOS features, and Q-Flash technology, this motherboard is designed to offer stability and ease of use for both enthusiasts and beginners. Backed by Gigabyte’s 3-year warranty, the Z890 UD motherboard ensures long-lasting reliability for users looking to build a future-ready system.
Features
- Supports LGA 1851 socket for Intel Core Ultra processors
- DDR5 memory support up to 256GB
- PCIe 5.0 x16 slot for next-gen graphics cards
- 4x M.2 connectors for high-speed SSDs
- Realtek 2.5GbE LAN for fast network connections
- Multiple USB4, USB 3.2, and Type-C ports
- ARGB and RGB headers for lighting customization
- Q-Flash Plus support for BIOS updates without CPU or RAM
