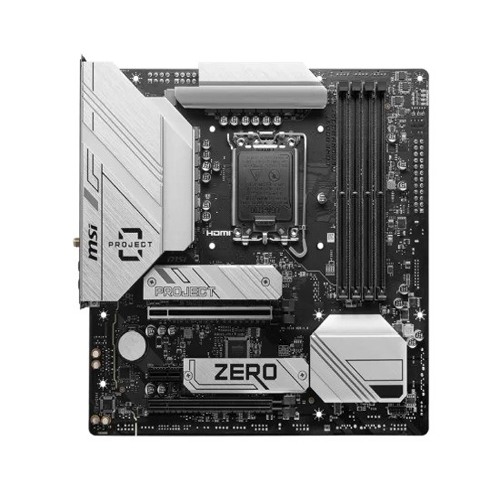

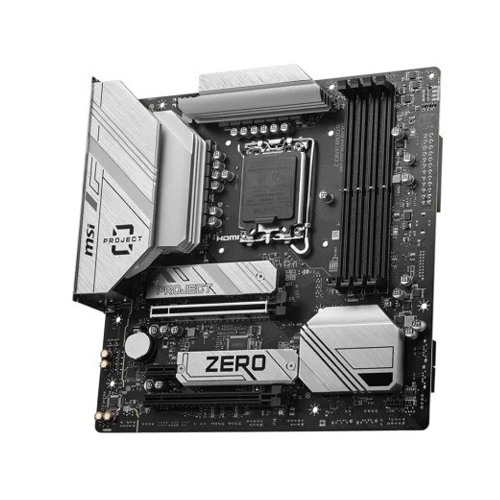

MSI B760M PROJECT ZERO LGA 1700 I DDR5 MATX Motherboards

MSI B760M PROJECT ZERO LGA 1700 I DDR5 MATX Motherboards

The MSI B760M PROJECT ZERO LGA 1700 DDR5 MATX Motherboard is a feature-packed and powerful motherboard designed for Intel's 14th, 13th, and 12th Gen processors, including Intel Core, Pentium Gold, and Celeron models. With its mATX form factor, this motherboard strikes a balance between compact size and extensive connectivity and expansion options, making it an excellent choice for gaming and productivity builds. In terms of memory support, the motherboard stands out with its 4 DDR5 memory slots, accommodating a maximum memory capacity of 192GB. It supports a wide range of memory speeds, with overclocking capabilities reaching impressive frequencies, providing users with the flexibility to optimize their system's memory performance. Connectivity is a strong suit of the MSI B760M, featuring a comprehensive set of ports and connectors. The rear I/O includes USB 2.0 and USB 3.2 Gen1 Type-A ports, while the front panel provides additional USB 2.0 and USB 3.2 Gen2 Type-A and Type-C ports. The inclusion of HDMI and DisplayPort ensures high-quality visuals, supporting resolutions up to 4K at 60Hz. The Realtek 2.5Gbps LAN ensures fast and stable network connectivity, while the integrated Intel Wi-Fi 6E module adds wireless versatility. The audio experience is enhanced with the Realtek ALC897 Codec, delivering 7.1-channel high-performance audio with support for S/PDIF output. This ensures an immersive audio experience for gaming, entertainment, and content creation. Expansion capabilities are robust with PCI-E slots, including PCI_E1 Gen PCIe 5.0 supporting up to x16 directly from the CPU, and PCI_E2 and PCI_E3 supporting up to x1 and x4, respectively, from the chipset. This provides ample room for graphics cards, additional peripherals, and high-speed storage solutions. The motherboard also incorporates RGB lighting features with addressable V2 RGB LED connectors and standard RGB LED connectors, allowing users to customize their system aesthetics. The inclusion of Intel Wi-Fi 6E ensures fast and reliable wireless connectivity, supporting MU-MIMO and a wide range of Wi-Fi standards. Backed by a 3-year warranty, MSI provides users with confidence in the durability and reliability of their motherboard. In conclusion, the MSI B760M PROJECT ZERO LGA 1700 DDR5 MATX Motherboard combines cutting-edge technology, extensive connectivity, and reliable performance, making it an excellent choice for users looking to build a high-performance system with the latest Intel processors.

MSI B760M PROJECT ZERO LGA 1700 I DDR5 MATX Motherboards Features

• Supports 12th, 13th, and 14th Gen Intel Core processors: This ensures compatibility with a wide range of current and future Intel processors.

• Supports DDR5 memory: This motherboard supports the latest DDR5 memory, offering faster speeds and improved efficiency compared to DDR4.

• Supports overclocking: You can overclock compatible CPUs and memory to squeeze out additional performance.

• Maximum memory capacity of 192GB: This provides ample space for demanding applications and multitasking.

• One PCIe 5.0 x16 slot: This allows you to install the latest high-performance graphics cards for smooth gaming experiences.

• One PCIe 4.0 x4 M.2 slot: This slot is ideal for installing high-speed NVMe SSDs for faster boot times and application loading.

• Multiple SATA ports: These ports allow you to connect traditional hard drives and solid-state drives.

• 2.5Gb LAN: This provides faster-wired networking compared to traditional Gigabit LAN.

• Wi-Fi 6E: This allows you to connect to wireless networks with increased speed and reduced latency.

• Realtek ALC897 audio codec: This provides good audio quality for gaming, multimedia, and other applications.

• Multiple USB ports: This motherboard includes a variety of USB ports, including USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2 Type A, and USB 3.2 Gen 2x2 Type C, to connect various peripherals.

• RGB lighting: The motherboard has built-in RGB LED connectors that allow you to customize your PC's lighting effects.

• Compact mATX form factor: This motherboard is smaller than standard ATX motherboards, making it ideal for building compact PCs.

Overall, the MSI B760M PROJECT ZERO LGA 1700 is a well-rounded mATX motherboard that offers a good balance of features and performance for gamers and enthusiasts who are building compact PCs. Its support for the latest processors, DDR5 memory, PCIe 5.0, and Wi-Fi 6E makes it a future-proof option.
