GIGABYTE B760M AORUS ELITE AX DDR4 13th And 12th Gen mATX Motherboard

GIGABYTE B760M AORUS ELITE AX DDR4 13th And 12th Gen mATX Motherboard

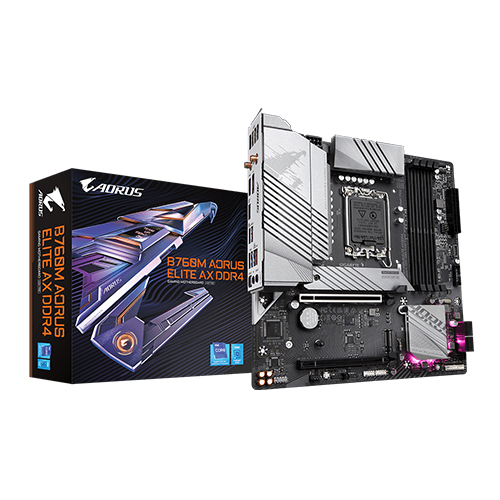

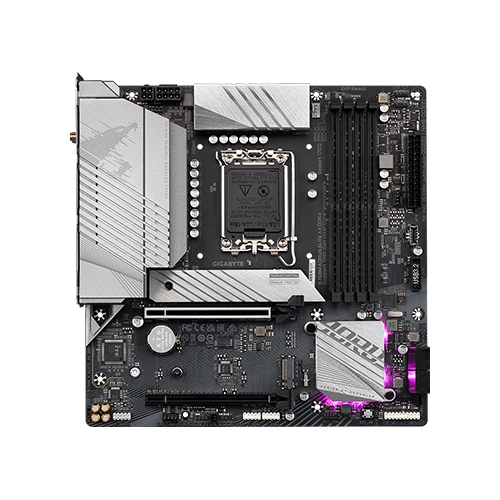

The GIGABYTE B760M AORUS ELITE AX DDR4 motherboard is a high-performance and feature-rich Micro ATX motherboard designed to support both the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors with the LGA1700 socket. With its powerful Intel B760 Express Chipset, this motherboard provides a solid foundation for building a reliable and powerful system.

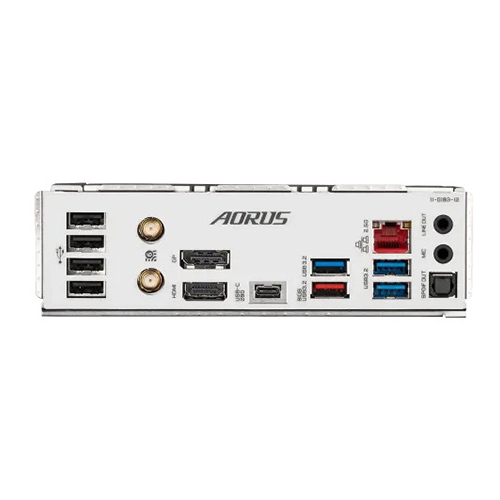

One of the standout features of this motherboard is its versatile connectivity options. On the back panel, it offers a range of connectors, including 2 SMA antenna connectors for 2T2R Wi-Fi 6E support, 1 USB Type-C port with USB 3.2 Gen 2x2 support, 1 USB 3.2 Gen 2 Type-A port (red), 3 USB 3.2 Gen 1 ports, 4 USB 2.0/1.1 ports, 1 HDMI port, 1 DisplayPort, 1 RJ-45 port, 1 optical S/PDIF Out connector, and 2 audio jacks. This makes it easy to connect various devices and peripherals, ensuring a smooth and efficient computing experience.

The motherboard supports up to 128 GB (32 GB single DIMM capacity) of DDR4 memory with memory speeds ranging from 2133 MT/s to an impressive 5333 MT/s (overclocked). This allows users to take advantage of high-speed and large-capacity memory configurations, making it suitable for intensive multitasking, content creation, and gaming.

For storage, the motherboard provides excellent flexibility with a CPU-connected M.2 slot that supports PCIe 4.0 x4/x2 SSDs (Socket 3, M key, type 2280) and a chipset-connected M.2 slot that supports PCIe 4.0 x4/x2 SSDs (Socket 3, M key, type 22110/2280). Additionally, there are four SATA 6Gb/s connectors, providing ample options for adding storage devices like SATA SSDs and HDDs.

The GIGABYTE B760M AORUS ELITE AX DDR4 motherboard comes with an integrated Intel HD Graphics solution that offers HDMI and DisplayPort outputs, supporting up to 4K resolutions at 60 Hz. This is perfect for users who require basic graphics capabilities without the need for a discrete graphics card.

Networking options are extensive with a Realtek 2.5GbE LAN chip, providing fast and reliable wired Ethernet connectivity. Moreover, the motherboard comes with wireless communication modules. Depending on the PCB revision, you get either Intel Wi-Fi 6E AX211 or Realtek Wi-Fi 6E RTL8852CE, both offering support for the latest Wi-Fi 6E standard and Bluetooth 5.3, providing excellent wireless connectivity for faster data rates and reduced latency.

GIGABYTE B760M AORUS ELITE AX DDR4 Motherboard Price In BD

If you're after cutting-edge technology and performance in a motherboard, the GIGABYTE B760M AORUS ELITE AX DDR4 motherboard is a fantastic option available in Bangladesh. Designed to support the latest 13th and 12th Generation Intel Core processors, this mATX motherboard is ready to power your computing endeavors.

With its iTE I/O Controller Chip, the motherboard provides voltage, temperature, fan speed, and water cooling flow rate detection, ensuring efficient cooling and system monitoring. Its comprehensive internal I/O connectors include M.2 sockets, SATA connectors, front panel headers, and USB headers, offering excellent expandability options for various peripherals.

The GIGABYTE B760M AORUS ELITE AX DDR4 motherboard supports a wide range of memory speeds, including overclocked options, allowing you to tailor your system's memory performance according to your needs. Whether you're a professional user, an avid gamer, or a home user, this motherboard delivers a seamless computing experience with exceptional reliability.

Features

• CPU Support: The motherboard supports 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors with an LGA1700 socket.
• BIOS: It comes with a 256 Mbit flash and uses licensed AMI UEFI BIOS. It supports various standards like PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.
• Chipset: The motherboard utilizes the Intel B760 Express Chipset.
• Memory Support: It supports DDR4 memory modules with a wide range of speeds, ranging from 2133 MT/s to 5333 MT/s (overclocked). It has four DDR4 DIMM sockets with a maximum capacity of 128 GB (32 GB per DIMM).
• Expansion Slots: The motherboard provides one PCI Express x16 slot (PCIEX16) for the CPU, supporting PCIe 4.0 and running at x16. Additionally, it has one PCI Express x16 slot (PCIEX4) from the chipset, supporting PCIe 4.0 and running at x4.
• Graphics Support: The motherboard features integrated Intel HD Graphics support with one HDMI port (HDMI 2.0) and one DisplayPort (DisplayPort 1.2), supporting high resolutions up to 4K.
• Audio: It utilizes a Realtek Audio CODEC to provide High Definition Audio with support for 2/4/5.1/7.1-channel configurations and S/PDIF Out.
• LAN Connectivity: The motherboard is equipped with a Realtek 2.5GbE LAN chip, offering 2.5 Gbps/1 Gbps/100 Mbps Ethernet speeds.

Overall, the GIGABYTE B760M AORUS ELITE AX DDR4 motherboard is a robust and versatile choice for building a high-performance system, whether it's for gaming, content creation, or general computing tasks. Its wealth of features, connectivity options, and support for the latest technologies make it an attractive option for users looking to create a reliable and future-proof PC setup.
