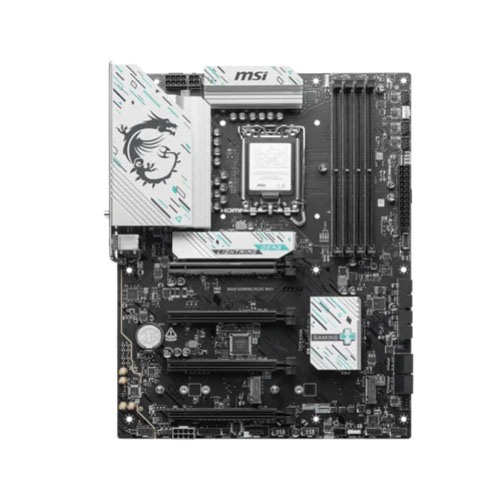

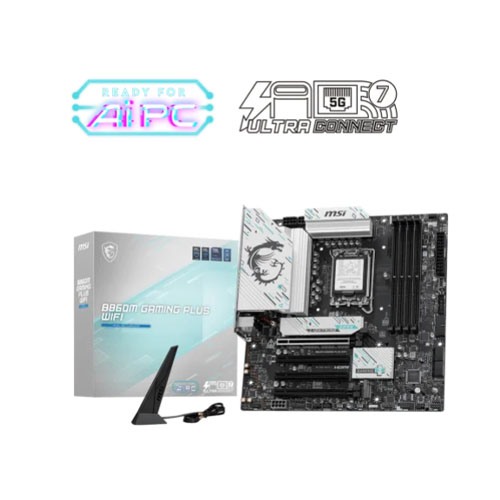

MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard

MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard
MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard
MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard
-10 %
MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard
MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard
MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard
MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard
25,700৳
28,500৳
Ex Tax: 25,700৳
EMI starts at 9,012৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: MSI
  • Model: B860M GAMING PLUS WIF
  • SKU: B860M GAMING PLUS WIFI

Key Features

    • Up to DDR5 8600+ MT/s (OC)
    • 5G  LAN & Wi-Fi 7
    • Thunderbolt™ 4 port
    • EZ M.2 Shield Frozr II
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Chipset INTEL B860
Form Factor Micro ATX
Supported CPU Supports Intel® Core™ Ultra Processors (Series 2)
Processor basics
Socket LGA 1851
Generel information
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Display Port 1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum
resolution of 4K@120Hz / 8K@60Hz*
LAN Realtek® 8126 5Gbps LAN
Memory Capacity 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
PCI-E 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Slots 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G

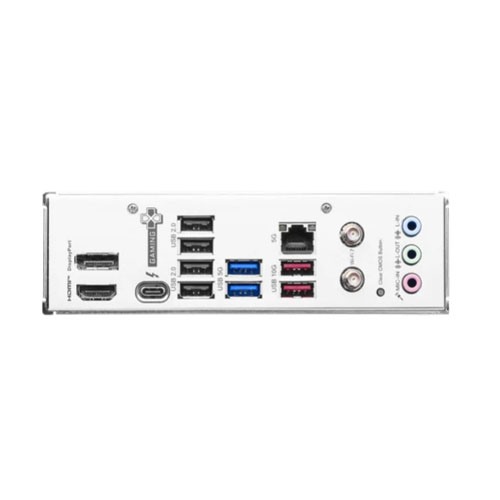

USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
Wi-Fi Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Connector & ports
HDMI 1x HDMI
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
Internal I/O Ports 1x Thunderbolt5 card connector (JTBT5, support RTD3)
1x Power Connector (ATX_PWR)
2x Power Connector (CPU_PWR)
1x Power Connector (PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector (JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector (JRGB)
1x TPM pin header (Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C port
Warranty Information
Warrantty 3 Years

MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard

 MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard is a powerful and feature-packed motherboard designed for Intel’s latest LGA 1851 socket processors, including the Intel Core Ultra Series 2. Built on the Intel B860 chipset, this motherboard offers exceptional performance, reliability, and expansion options, making it an excellent choice for gamers and professionals alike.

Performance & Memory

Equipped with four DDR5 UDIMM slots, the B860M GAMING PLUS WIFI supports up to 256GB of RAM, with overclocking speeds reaching up to 8600+ MT/s. It supports Intel XMP 3.0 for memory overclocking, ensuring smooth multitasking and high-speed performance for intensive workloads.

Storage & Expansion

This motherboard features three M.2 slots, with one supporting PCIe 5.0 x4 speeds directly from the CPU, ensuring ultra-fast storage performance. Additionally, it includes four SATA 6G ports for traditional storage solutions. The PCI-E 5.0 x16 slot provides high-speed connectivity for the latest GPUs, while additional PCI-E 4.0 slots ensure further expansion options.

Connectivity & Networking

For seamless connectivity, the motherboard is equipped with Intel Wi-Fi 7, supporting speeds up to 5.8Gbps, and Realtek 5Gbps LAN, providing ultra-fast wired connections. Multiple USB 10Gbps and 5Gbps ports, including USB Type-C, ensure compatibility with a wide range of devices.

Audio & Display

The Realtek ALC897 7.1-channel HD audio codec delivers immersive sound for gaming and entertainment. With HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 support, users can experience up to 8K@60Hz display resolution.
Backed by a 3-year warranty, the MSI B860M GAMING PLUS WIFI is an excellent choice for high-performance gaming and professional computing.
