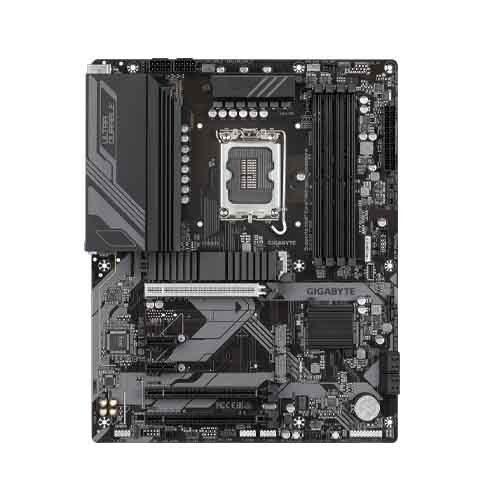

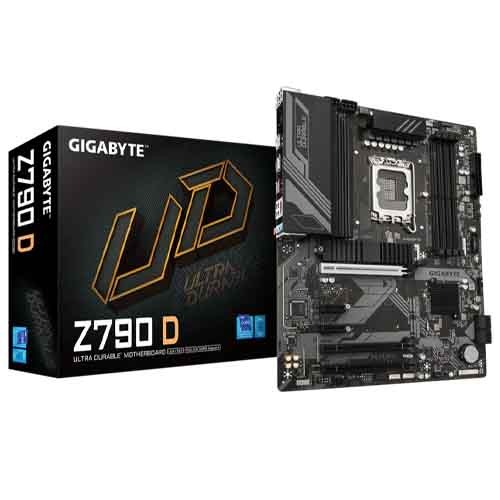

Gigabyte Z790 D DDR5 ATX Motherboard

Gigabyte Z790 D DDR5 ATX Motherboard

The Gigabyte Z790 D DDR5 Motherboard represents a powerhouse of performance and versatility for PC enthusiasts, offering support for the latest 14th, 13th, and 12th Generation Intel® Core™ processors. Featuring the Intel® Z790 Express Chipset, this ATX form factor motherboard is designed to deliver exceptional performance for gaming, content creation, and multitasking. Equipped with a robust BIOS system utilizing a 256 Mbit flash and licensed AMI UEFI BIOS, this motherboard ensures seamless compatibility and efficient system management. The chipset provides extensive connectivity options, including USB Type-C® ports with USB 3.2 Gen 2 support, USB 3.2 Gen 2 Type-A ports, USB 3.2 Gen 1 ports, and USB 2.0/1.1 ports, enabling high-speed data transfer and device compatibility. Audio quality is optimized with the Realtek® Audio CODEC, offering 2/4/5.1/7.1-channel High Definition Audio and support for S/PDIF Out. Users can customize audio settings through software to achieve the desired audio experience. For networking, the motherboard features a Realtek® 2.5GbE LAN chip, ensuring stable and high-speed internet connectivity for online gaming and content streaming. Additionally, it comes with Intel® Wireless-AC 9560, providing WIFI 802.11 a/b/g/n/ac connectivity and Bluetooth 5.1 support. Expansion options include multiple PCIe slots for graphics cards, NVMe SSDs, and other add-in cards. The motherboard supports DDR5 memory modules with speeds up to 7600(O.C.) MT/s for 14th and 13th Generation Intel® Core™ i9/i7 processors, offering a maximum capacity of 192 GB across four DDR5 DIMM sockets. Advanced features such as GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup enhance system management and reliability. The motherboard also incorporates comprehensive hardware monitoring capabilities, including voltage detection, temperature monitoring, fan speed control, and water cooling flow rate detection. With its combination of cutting-edge technology, robust build quality, and extensive feature set, the Gigabyte Z790 D DDR5 Motherboard provides enthusiasts with a versatile platform to build high-performance gaming and content creation systems, backed by a 3-year warranty for peace of mind.

Features:

• BIOS: Equipped with a 256 Mbit flash and licensed AMI UEFI BIOS, providing a user-friendly interface and robust system management capabilities. It supports various industry standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.
• Chipset: Powered by the Intel® Z790 Express Chipset, offering excellent performance and stability for gaming, content creation, and multitasking.
• Supported CPU: Compatible with LGA1700 socket processors, including the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors. Users can check Gigabyte's website for the latest CPU support list.
• Audio Feature: Enhanced audio experience with Realtek® Audio CODEC supporting 2/4/5.1/7.1-channel High Definition Audio and S/PDIF Out. Users can customize audio settings using audio software.

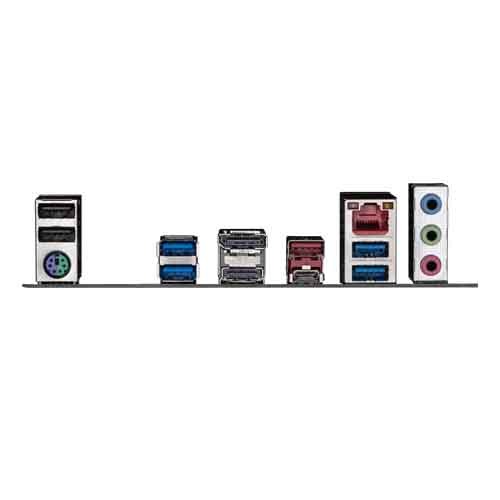

• Back Panel Connectors: A comprehensive array of connectors including PS/2 keyboard/mouse port, USB Type-C® port, USB 3.2 Gen 2 Type-A port, USB 3.2 Gen 1 ports, USB 2.0/1.1 ports, HDMI port, DisplayPort, RJ-45 port, and audio jacks.
• Expansion Slots: Multiple PCIe slots for graphics cards and NVMe SSDs, supporting PCIe 5.0, PCIe 4.0, and PCIe 3.0 standards.
• H/W Monitoring: Advanced hardware monitoring capabilities including voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, and fan speed control.
• LAN: Equipped with a Realtek® 2.5GbE LAN chip for high-speed internet connectivity.
• Memory: Supports DDR5 memory modules with speeds up to 7600(O.C.) MT/s for 14th and 13th Generation Intel® Core™ processors. It features four DDR5 DIMM sockets supporting up to 192 GB of system memory with ECC support.
• Onboard Graphics: Integrated Intel® HD Graphics support with HDMI and DisplayPort outputs, offering high-resolution display capabilities.
• Operating System: Compatible with Windows 11 64-bit and Windows 10 64-bit operating systems.
• Storage Interface: Multiple M.2 connectors and SATA 6Gb/s connectors for flexible storage configurations, supporting RAID 0, RAID 1, RAID 5, and RAID 10 for both NVMe SSDs and SATA storage devices.
• Unique Features: Includes GIGABYTE Control Center (GCC) for system management, Q-Flash for BIOS updating, Q-Flash Plus for BIOS recovery, and Smart Backup for data protection.
• USB Connectivity: Various USB ports including USB Type-C®, USB 3.2 Gen 2 Type-A port, USB 3.2 Gen 1 ports, and USB 2.0/1.1 ports, providing high-speed data transfer and device connectivity options.
• Warranty: Backed by a 3-year warranty for added peace of mind.
