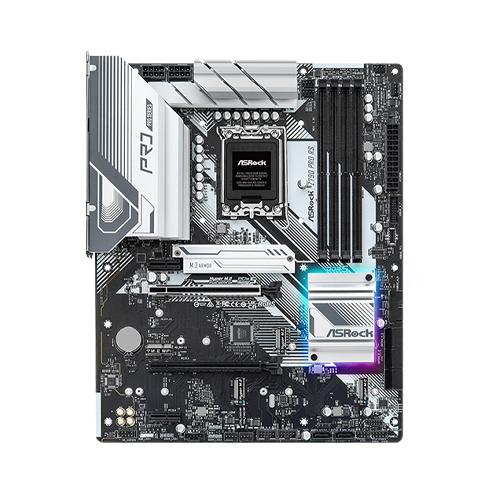

ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard

ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard
ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard
ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard
-9 %
ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard
ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard
ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard
ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard
28,800৳
31,500৳
Ex Tax: 28,800৳
EMI starts at 10,099৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: ASRock
  • Model: Z790 Pro RS

Key Features

    • Supports 13th Gen & 12th Gen Intel Core Processors
    • 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
    • Realtek 2.5G LAN
    • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Chipset Intel Z790
Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
2oz Copper PCB
Generel information
Accessories - 1 x User Manual
- 2 x SATA Data Cables
- 5 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Audio Feature 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
Certification FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Connector 1 x eDP Signal Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- 3 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
CPU Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
Graphic Intel® Xe Graphics Architecture (Gen 12)
1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3
and max. resolution up to 8K 60Hz / 5K 120Hz
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Memory Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 192GB
Supports Intel® Extreme Memory Profile (XMP) 3.0
OS Microsoft® Windows® 10 64-bit / 11 64-bit
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Rear Panel I/O 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Slots CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
- 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi
module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 8 x SATA3 6.0 Gb/s Connectors
USB 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Warranty Information
Warranty 3 Years

ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard

The ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard is a technological marvel designed to elevate your computing experience to new heights. Engineered with precision and innovation, this motherboard boasts an array of cutting-edge features that cater to the demands of both professional users and avid enthusiasts. Available in Ultratech stores, the Z790 Pro RS is a testament to ASRock's commitment to delivering top-tier performance, advanced connectivity, and unmatched expandability. At its heart lies a powerful Intel Z790 chipset, meticulously optimized to harness the capabilities of 13th and 12th Gen Intel Core processors. This ATX form factor motherboard is built on a robust 2oz Copper PCB, ensuring stable power delivery and exceptional thermal management for demanding workloads. The motherboard comes bundled with essential accessories, including user manuals, SATA data cables, screws for M.2 sockets, and more. It's fully equipped to handle your connectivity needs with eDP signal connectors, RGB LED headers, addressable LED headers, and USB 2.0 and USB 3.2 Gen1 headers. Delve into an immersive audio experience with the 7.1 CH HD Audio powered by the Realtek ALC897 Audio Codec and Nahimic Audio technology. The motherboard is FCC and CE certified, and its ErP/EuP ready status ensures energy-efficient operation. For CPU support, the Z790 Pro RS stands out with its compatibility with 13th Gen & 12th Gen Intel Core Processors, along with Intel® Hybrid Technology, Turbo Boost Max 3.0 Technology, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT). The Intel® Xe Graphics Architecture (Gen 12) promises stunning visuals through eDP, HDMI, and DisplayPort outputs. Memory-wise, the motherboard supports Dual Channel DDR5 Memory Technology, accommodating up to 7200+(OC) speeds and a maximum capacity of 192GB. RAID configurations are a breeze with support for RAID 0, RAID 1, RAID 5, and RAID 10 for both SATA and M.2 NVMe storage devices.

ASRock Z790 Pro Motherboard Price In BD

Looking for a motherboard that stands the test of time? Look no further than the ASRock Z790 Pro RS 13th Gen And 12th Gen ATX Motherboard, available at a competitive price in Ultratech. Brought to you by ASRock, a pioneer in motherboard technology, this motherboard offers a blend of performance, compatibility, and future-ready features, catering to diverse applications such as office work, industrial tasks, and personal computing. Featuring support for 13th and 12th generation processors, this motherboard ensures your system stays up-to-date with the latest advancements. Its ATX form factor guarantees a spacious layout for components, enabling effortless customization. From demanding workloads to entertainment, the ASRock Z790 Pro RS motherboard is the foundation for a reliable, high-performance rig that's ready for whatever the future holds.

Features

  • BIOS: The motherboard features a 128Mb AMI UEFI Legal BIOS with GUI support, offering a user-friendly interface for system configuration and optimization.
  • Chipset: Powered by the Intel Z790 chipset, this motherboard provides excellent performance, connectivity, and support for 13th Gen & 12th Gen Intel Core Processors (LGA1700).
  • Form Factor: The ATX Form Factor of 12.0-in x 9.6-in (30.5 cm x 24.4 cm) provides ample space for components and expansion cards.
  • 2oz Copper PCB: The motherboard is built on a 2oz Copper PCB, ensuring better power delivery, heat dissipation, and overall stability.
  • Accessories: The package includes essential accessories like a user manual, SATA data cables, screws for M.2 sockets, and a standoff for M.2 sockets.
  • Audio Features: Enjoy high-quality audio with the 7.1 CH HD Audio powered by the Realtek ALC897 Audio Codec, along with Nahimic Audio technology.
  • Certification: The motherboard is FCC and CE certified, meeting quality and safety standards.
  • Connectors: It offers a range of connectors, including an eDP Signal Connector, SPI TPM Header, RGB LED Header, and multiple USB headers for enhanced connectivity.
  • CPU Support: The motherboard supports 13th Gen & 12th Gen Intel Core Processors and includes features like Intel® Hybrid Technology, Turbo Boost Max 3.0 Technology, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT).
  • Graphics: With Intel® Xe Graphics Architecture (Gen 12), the motherboard supports eDP 1.4, HDMI 2.1, and DisplayPort 1.4 outputs with high resolutions and HDCP support.
  • LAN: Equipped with 2.5 Gigabit LAN with Dragon RTL8125BG, the motherboard offers Smart Auto Adjust Bandwidth Control, Visual Network Usage Statistics, and more.
  • Memory: The motherboard supports Dual Channel DDR5 Memory Technology, offering four DDR5 DIMM slots and supporting speeds up to 7200+(OC) for a maximum system memory capacity of 192GB.
  • OS Support: It's compatible with Microsoft® Windows® 10 64-bit / 11 64-bit operating systems.
  • RAID Support: The motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, as well as RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices.
  • Rear Panel I/O: Offers a variety of ports, including USB 3.2 Gen2 Type-A and Type-C ports, HDMI, DisplayPort, LAN port, and HD audio jacks.
  • Expansion Slots: Features PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x1 slots, and a Key E M.2 Socket for WiFi/BT modules.
  • Storage: Equipped with Hyper M.2 Sockets that support PCIe Gen4x4 for high-speed SSDs, as well as SATA3 6.0 Gb/s connectors for traditional storage.
  • USB: Provides USB 3.2 Gen2x2, Gen2, and Gen1 Type-C and Type-A ports for fast data transfer and connectivity options.
