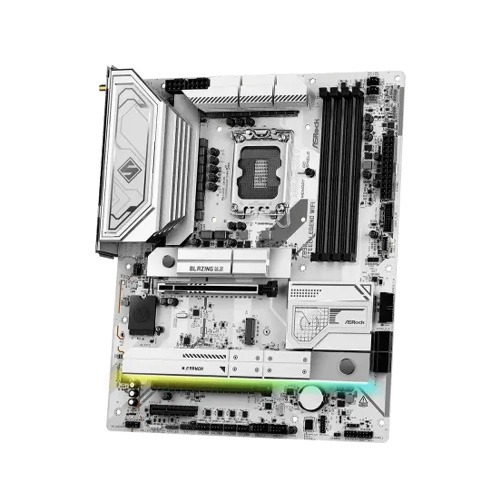

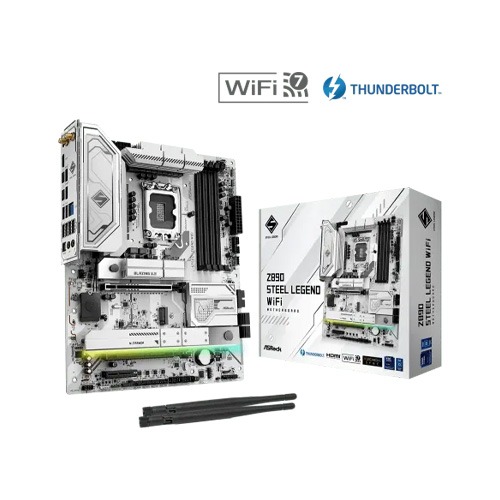

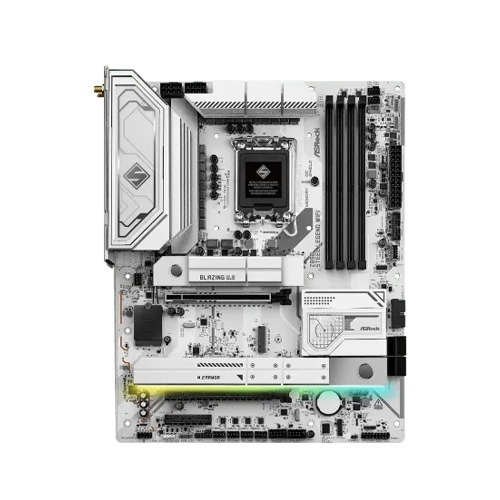

ASRock Z890 Steel Legend WiFi LGA1851 DDR5 ATX Motherboard
- Stock: In Stock
- Brand: ASRock
- Model: Z890 Steel Legend WiFi
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM)
- Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9466MHz+(OC)
- Graphics Output: 1x HDMI, 2 x Intel Thunderbolt 4
- Features: 2.5G LAN, 802.11be Wi-Fi 7 Module, Bluetooth 5.4
| Main Features | |
| Supported CPU | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration |
| General Information | |
| Chipset Manufacturer | Intel Z890 |
| Audio | 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
| BIOS Type | 256Mb AMI UEFI Legal BIOS with GUI support |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 2oz Copper PCB |
| Graphics | Intel® Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports two 4K displays or one 8K display Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics. |
| HDMI Port | 1 x HDMI |
| Maximum Memory Supported | 256GB |
| Memory Type | Dual Channel DDR5 Memory Technology |
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. Supports NVMe SSD as boot disks |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Special Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Server-Grade Low-Loss PCB - 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor - Memory OC Shield - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| Wireless Communication module | 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO * Wi-Fi 7 (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
| Memory Specifications | |
| Memory Slots | 4 x DDR5 DIMM Slots |
| Connector & ports | |

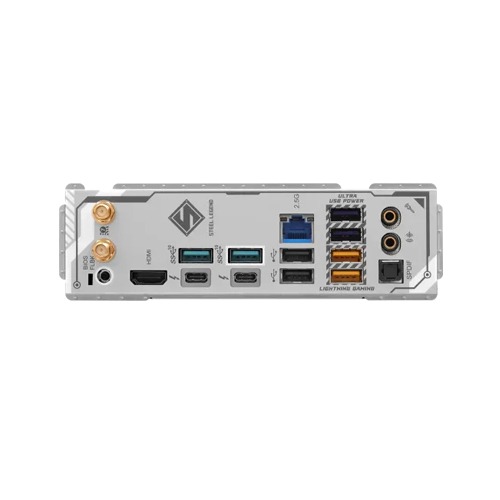

| Internal I/O Ports | 1 x Thermistor Cable Header 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 4 x USB 3.2 Gen1 Ports** 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
| LAN Port (s) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| USB (s) | CPU: - 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 2 x USB 3.2 Gen2 Type-A (Rear) - 8 x USB 3.2 Gen1 (4 Rear, 4 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
| Warranty Information | |
| Warranty | 3 Year Warranty |
ASRock Z890 Steel Legend WiFi LGA1851 DDR5 ATX Motherboard
ASRock Z890 Steel Legend WiFi LGA1851 DDR5 ATX Motherboard is a top-tier motherboard designed for high-performance computing. This motherboard supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket, offering remarkable performance and power efficiency, making it ideal for gaming, content creation, and intensive workloads. Equipped with Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT), it ensures enhanced processing power and speed.The Intel Z890 chipset ensures seamless integration of high-end components, including dual-channel DDR5 memory. With 4 DIMM slots supporting up to 256GB of DDR5 RAM, the motherboard supports high-speed memory, capable of reaching speeds up to 9466MHz with overclocking. The motherboard also offers multiple M.2 slots, including support for PCIe Gen5 and PCIe Gen4, enabling rapid data transfer speeds for NVMe SSDs and enhancing overall system responsiveness.This motherboard includes advanced 7.1 CH HD Audio powered by Realtek ALC1220, delivering crisp sound quality for gaming and media consumption. For connectivity, it offers a 2.5Gb Ethernet LAN port, Wi-Fi 7 support with the 802.11be 2x2 module, and Bluetooth 5.4, ensuring ultra-fast and reliable internet and networking experiences.With robust expansion options, it includes PCIe 5.0 x16 slots, Thunderbolt™ 4 Type-C ports, USB 3.2 Gen 2 ports, and multiple M.2 connectors. This makes it future-proof, allowing users to add the latest graphics cards, high-speed storage devices, and accessories.Built for durability, the ASRock Z890 Steel Legend features a solid 18+1+1 power phase design, 20K long-lasting capacitors, and a server-grade low-loss PCB. The motherboard's steel armor adds additional protection to critical components, ensuring long-term stability.Backed by a 3-year warranty, this motherboard is a reliable and powerful foundation for building a high-performance system.
Features
- Supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket for superior performance.
- Intel® Z890 chipset providing robust platform stability and expandability.
- Dual Channel DDR5 memory technology with speeds up to 9466MHz (OC), supporting up to 256GB of RAM.
- Blazing-fast PCIe Gen5x4 M.2 slot for NVMe SSDs, enabling faster data transfer.
- Thunderbolt™ 4 Type-C Ports for ultra-fast 40Gb/s data transfer.
- Integrated Wi-Fi 7 (802.11be) with 2x2 diversity antenna support, ensuring seamless wireless performance.
- 2.5Gb Ethernet LAN for high-speed networking.
- Realtek ALC1220 Audio Codec for immersive 7.1 surround sound.
- Multiple PCIe slots including PCIe 5.0 x16 for high-end GPU support.
- Customizable RGB lighting with Polychrome SYNC.
- 3-year warranty ensuring reliability and durability.
