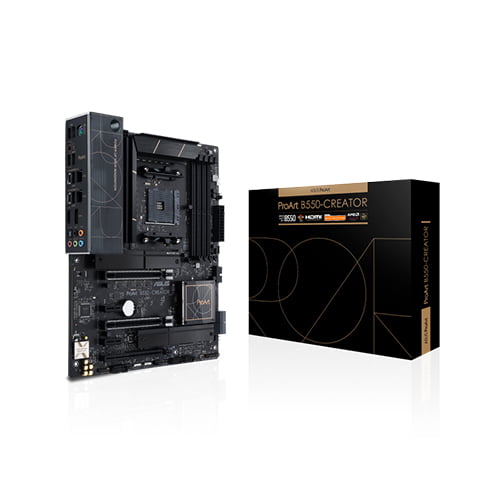

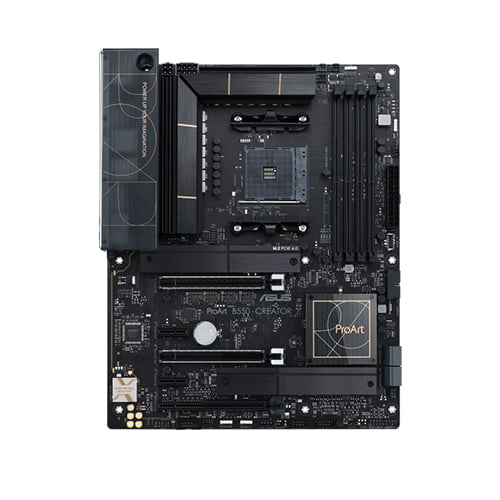

Asus PROART B550-CREATOR AM4 AMD ATX Motherboard

Asus PROART B550-CREATOR AM4 AMD ATX Motherboard
Asus PROART B550-CREATOR AM4 AMD ATX Motherboard
Asus PROART B550-CREATOR AM4 AMD ATX Motherboard
-4 %
Asus PROART B550-CREATOR AM4 AMD ATX Motherboard
Asus PROART B550-CREATOR AM4 AMD ATX Motherboard
Asus PROART B550-CREATOR AM4 AMD ATX Motherboard
Asus PROART B550-CREATOR AM4 AMD ATX Motherboard
Based on 0 reviews. - Write a review

TBA

  • Stock: Out Of Stock
  • Brand: Asus
  • Model: B550-C
  • SKU: B550-C

Out Of Stock

Add to Wish List Compare this Product

Key Features

    • Model: PROART B550-CREATOR
    • Unthrottled Performance
    • ProArt Gives You More
    • Advanced Security
View more details
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit
Chipset B550
Generel information

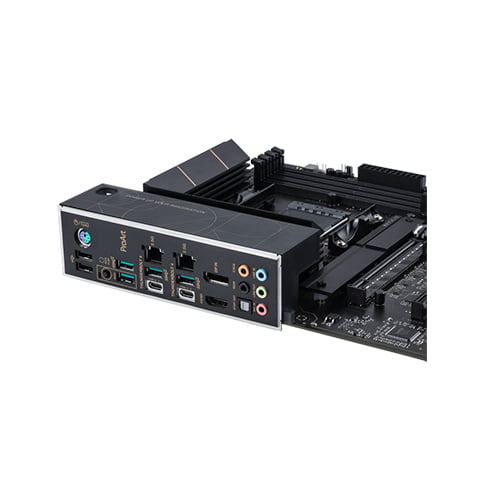

Back Panel I/O Ports 2 x Thunderbolt™ 4 USB Type-C® port(s) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI™ port 2 x Intel® I225-V 2.5Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port
CPU AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Ethernet 2 x Intel® I225-V 2.5Gb Ethernet
Expansion Slots 2 x PCIe 4.0/3.0 x16 (x16, x8/x8) AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8)* AMD RyzenTM 4000 G-Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8)* AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 2 x PCIe 3.0 x1 slots*** * Support PCIe bandwidth bifurcation for RAID on CPU function. ** PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 4 will have no output *** These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will
Intrernal I/O Connectors 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header
Memory AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *" AMD RyzenTM 4000 G-Series Processors DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory" OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Operating System Windows 10 64-bit
Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD RyzenTM 4000 G-Series Processor : M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Supports RAID 0, 1, 10
USB Rear USB:Total 8 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Graphics Specifications
Graphics 1 x HDMI™ 2.1 (4K@60Hz) 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs * * Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types.
Warranty Information
Warranty 3 Years

Asus PROART B550-CREATOR AM4 AMD ATX Motherboard

Asus PROART B550-CREATOR AM4 AMD ATX Motherboard Featuring robust power delivery and PCI 4.0 support, ProArt B550-Creator maximizes the computing power of the newest AMD Ryzen processors to hurry up tasks like 3D rendering and video post-production also as working with and sharing large files. the huge performance demands of those next-generation processors are balanced with a comprehensive and efficient thermal solution, leading to the rock-solid system stability and reliability ASUS ProArt B550-Creator Motherboards are known for and professional content creators demand. Lightning-speed connectivity The ProArt B550-Creator motherboard comes with a comprehensive array of powerful I/O ports — including two Thunderbolt 4 ports, two Intel 2.5G Ethernet, and 4 USB 3.2 Gen 2 ports — enabling quick data transfers and extensive storage options with flexible, hassle-free connectivity. ASUS ProArt B550-Creator Motherboard Each Thunderbolt 4 port delivers up to 40 Gbps of bidirectional bandwidth for the newest high-speed devices and drives. Thunderbolt 4 also supports up to 2 external 4K UHD displays or one 8K display. The two Intel 2.5G Ethernet (I225-V) ports enable faster transfers of huge files across local networks — ideal for copying large files to network-attached storage (NAS) devices, streaming high-res video, and sharing assets with colleagues. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to hurry up essential apps for creative work. Unthrottled performance ProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the newest AMD Ryzen 5000 Series desktop processors, ensuring incredible performance for even the foremost demanding creative tasks. Its 12+2 power stage VRM is prepared for the highest Ryzen chips, and 8pin ProCool auxiliary power connectors with solid pins ensure steady and stable power delivery to those stages. [ninja_tables id="47234"]
