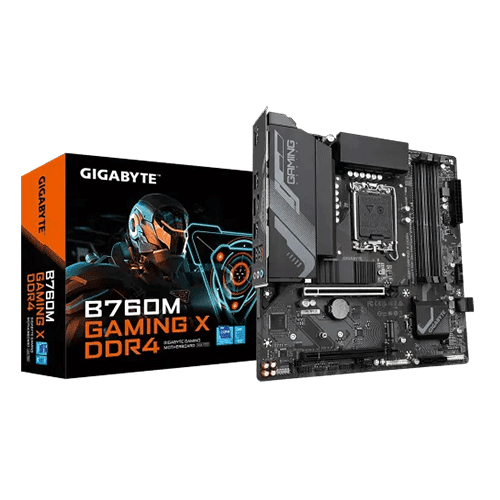

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

GIGABYTE B760M GAMING X DDR4 mATX Motherboard
-12 %
GIGABYTE B760M GAMING X DDR4 mATX Motherboard
Based on 0 reviews. - Write a review
19,800৳
22,570৳
Ex Tax: 19,800৳
EMI starts at 6,943৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B760M
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Key Features

  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel B760 Express Chipset
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Generel information
Type DDR4
Display Port (s) 1x DisplayPort
Graphic Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Slots 4
Special Features 2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0
SPI/GC-TPM2.0 SPI 2.0 module only)
Memory Specifications
Maximum Memory 128GB
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Connector & ports
Audio Jack 1 x front panel audio header 3 x audio jacks
HDMI 1x HDMI
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port
Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
USB (s) 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports
available through the internal USB headers)
Warranty Information
Warranty 3 years

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

The GIGABYTE B760M GAMING X DDR4 mATX Motherboard is a feature-rich, compact solution designed for gamers and power users looking to build a high-performance system without breaking the bank. Built on the Intel B760 chipset, this motherboard supports the latest 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, delivering strong processing power and multitasking capabilities for gaming and productivity. With four DDR4 memory slots, the motherboard supports up to 128GB of RAM, with speeds reaching 5333 MT/s when overclocked, making it perfect for memory-intensive applications like gaming, streaming, and content creation. It also supports Intel’s Extreme Memory Profile (XMP), which allows for easy overclocking and fine-tuning of memory settings for optimal performance. Storage options on the B760M GAMING X are extensive, featuring two M.2 PCIe 4.0 slots for ultra-fast NVMe SSDs and four SATA 6Gb/s ports for traditional hard drives or SSDs. RAID support (RAID 0, 1, 5, and 10) offers enhanced data redundancy and performance for users who need reliable storage setups. For connectivity, the motherboard is equipped with USB 3.2 Gen 2 and USB 3.2 Gen 1 ports, as well as USB Type-C for high-speed data transfers. The inclusion of Realtek 2.5GbE LAN ensures fast and stable networking, providing a significant upgrade over standard Gigabit Ethernet, making it ideal for online gaming and large file transfers. On the graphics side, the motherboard supports integrated Intel HD Graphics with HDMI and DisplayPort outputs, both capable of driving 4K displays at 60Hz. Additionally, the board includes PCIe 4.0 x16 slots, providing support for the latest GPUs for gaming and content creation. The B760M GAMING X is designed with RGB lighting headers for customization and comes with advanced cooling features like multiple fan headers, ensuring optimal thermal management. Backed by a 3-year warranty, the GIGABYTE B760M GAMING X DDR4 mATX motherboard offers a solid, versatile foundation for building a powerful and reliable gaming PC.
