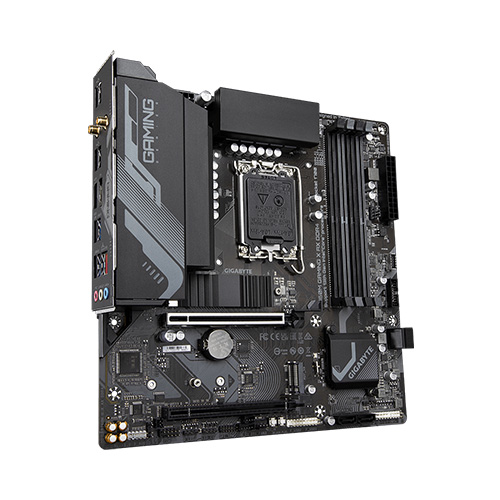

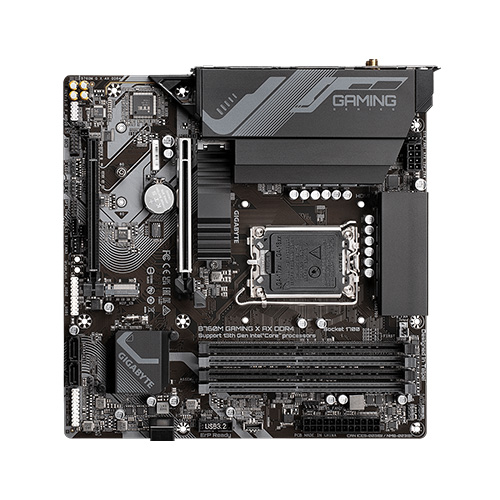

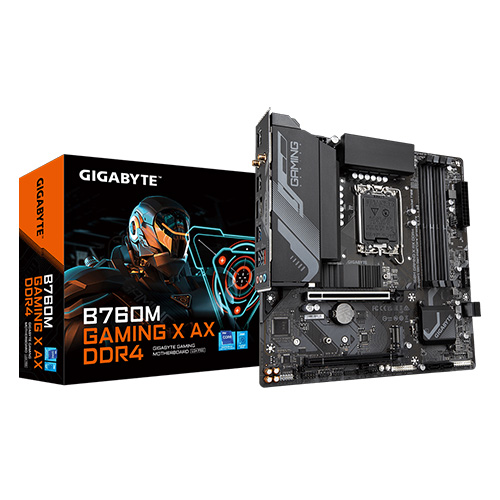

Gigabyte B760M GAMING X AX DDR4 Motherboard

Product ID: UT-6113
Customer rating: No reviews yet
Availability: Out of stock
Questions: 0 answered

1 / 4

All prices include VAT. 0% EMI from ৳1,650/mo on 29 banks.

Save ৳3,700 -16%৳19,800~~Was ৳23,500~~

Key features

Full specs

ModelB760M GAMING X AX
FeatureSupport 13th and 12th Gen Series Processors
FeatureIntel B760 Express Chipset
FeatureiTE I/O Controller Chip

0% EMI on credit cards of 29 banks — ৳1,650/mo for 12 months.
Online price saves you ৳3,700 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandGigabyte341 productsBrowse all →

Specifications

Key Specifications

Processor Type	Intel
Socket	LGA1700
Chipset	Intel B760
Form Factor	Micro ATX

RAM Type	DDR4
Maximum Memory	128GB
Features	M.2, RGB, USB Type-C

Processor

Supported CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU

Memory

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Expansion & Storage

Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics & Display

Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.

Networking

LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Ports & Connectors

USB	Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

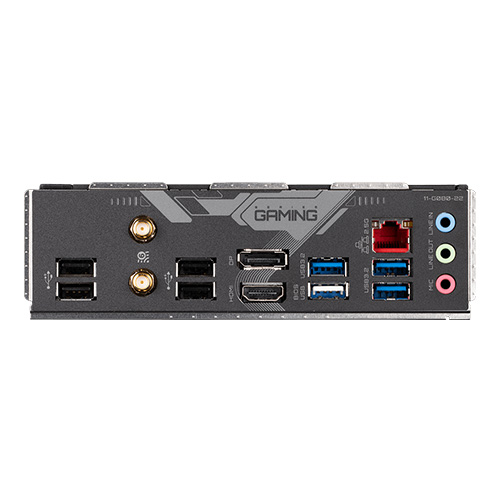

Rear Panel I/O	3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks

Internal Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Other Features

BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control

Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit

More Specifications

I/O Controller	iTE I/O Controller Chip

Warranty

Warranty	3 Years

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

Gigabyte B760M GAMING X AX DDR4 Motherboard

Gigabyte B760M GAMING X AX DDR4 is a micro-ATX form factor motherboard based on the Intel B760 chipset. It supports LGA 1700 socket 13th and 12th Gen Series Processors. The motherboard features dual-channel DDR4 memory support, a built-in audio controller with ALC1220 codec, and an Intel 2.5 GbE LAN. It also has various storage options, including 6 SATA III ports and 2 M.2 slots. Gigabyte B760M GAMING X AX DDR4 Motherboard enables the ultimate connection experience with blazing data-transfer speeds through the next-generation network, storage, and Wi-Fi connectivity. Gigabyte B760M GAMING X AX DDR4 Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slot to make each of them solid and durable.

Gigabyte B760M GAMING X AX Motherboard Features

Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors
Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR4: 4*DIMMs XMP Memory Module Support
Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard : To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: Front USB-C® 10Gb/s, DP, HDMI
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Buy Gigabyte B760M GAMING X AX DDR4 Motherboard from Ultra Technology

Get the Gigabyte B760M GAMING X AX DDR4 Motherboard from Ultra Technology for ৳19,800 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from Gigabyte, explore more GIGABYTE Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.

Reviews 0

★★★★★No reviews yetBought the Gigabyte B760M GAMING? Share your experience to help other buyers.

Be the first to review this productYour review helps other customers choose with confidence.

Questions 0

No questions yetNot sure about compatibility, warranty or delivery? Ask — our team answers within 24 hours.

Common questions

Does this come with an official warranty?

Yes — 3 years. Claims are handled at our RMA & Service Center, Suite 1413, Multiplan Center.

Can I buy this on EMI?

Yes, EMI is available with credit cards of our partner banks on orders over ৳5,000. Tap “View more” under Promotional information to see the monthly amounts.

Is it available at the showroom right now?

Not at the moment. Call 01771-833944 and we'll let you know when the next shipment lands.

How long does delivery take?

Inside Dhaka within 24 hours; outside Dhaka 2–3 working days by courier.

Is it brand new and sealed?

Yes — every unit is brand new in its original sealed box, with the invoice.

Do you give a better price on bulk orders?

Yes — for corporate or bulk orders call 01898-883492 for a quote.
