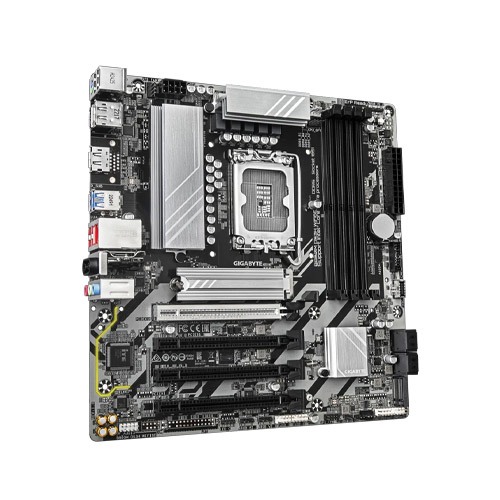

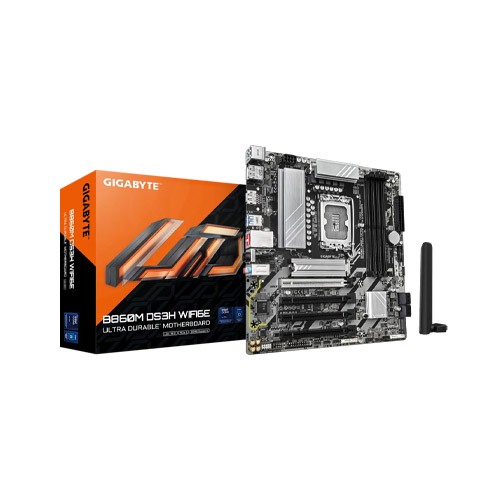

GIGABYTE B860M DS3H WIFI6E Intel Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: B860M DS3H WIFI6E
Key Features
- Supports Intel® Core™ Ultra Processors
- DDR5 up to 9066MHz (OC), 256GB max
- PCIe 5.0 x16 & dual M.2 slots
- Built-in Wi-Fi 6E & 2.5GbE LAN
| General Information | |
| Chipset Manufacturer | Intel® B860 Express Chipset |
| Audio | Realtek® Audio CODEC High Definition Audio with 2/4/5.1/7.1 channels Configurable via audio software |
| BACK PANEL PORTS | 1 x PS/2 keyboard/mouse 1 x HDMI, 2 x DisplayPort 1 x USB 3.2 Gen 2 Type-A (red) 2 x USB 3.2 Gen 1 3 x USB 2.0 2 x Wi-Fi antenna connectors 1 x RJ-45 LAN 3 x audio jacks |
| BIOS FEATURES | 256 Mbit AMI UEFI BIOS Supports PnP, DMI, WfM, SM BIOS, ACPI |
| Bundled Software | Norton® Internet Security OEM LAN bandwidth management utility |
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Refer to GIGABYTE's website for the latest support list.) L3 cache varies with CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 (graphics card/NVMe SSD) 3 x PCIe 4.0 x1 |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
| H/W Monitoring | Voltage, temperature, fan speed, water flow monitoring Fan/pump control support |
| I/O Controller | iTE® I/O Controller Chip |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | Supports DDR5 9066(O.C) down to 5600 MT/s modules 4 x DDR5 DIMM slots (Max 256 GB) Dual channel, ECC & non-ECC un-buffered DIMMs supported Supports Extreme Memory Profile (XMP) |
| Onboard Graphics | Integrated Intel® HD Graphics 1 x HDMI (4096x2160@60Hz), HDMI 2.1, HDCP 2.3 2 x DisplayPort (3840x2160@144Hz), DP 2.1 Triple display support |
| Operating System | Supports Windows 11 64-bit & Windows 10 64-bit *Intel® NPU driver supported only on Windows 11 |
| Storage Interface | CPU: 1 x M.2 (PCIe 5.0 x4/x2, 2280) Chipset: 1 x M.2 (PCIe 4.0 x4/x2, 2280) 4 x SATA 6Gb/s Supports RAID 0/1/5/10 |
| Unique Features | GIGABYTE Control Center (GCC) support Q-Flash, Q-Flash Plus, Smart Backup |
| USB | 1 x USB 3.2 Gen 1 Type-C (internal header) 1 x USB 3.2 Gen 2 Type-A (rear, red) 4 x USB 3.2 Gen 1 (2 rear, 2 internal) 3 x USB 2.0/1.1 (rear) 4 x USB 2.0/1.1 (internal) |
| Wireless Communication module | Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE Bluetooth 5.3 WIFI a/b/g/n/ac/ax, supports 2.4/5/6 GHz bands |
| Connector & ports | |
| Internal I/O Ports | 1 x 24-pin ATX, 1 x 8-pin 12V 2 x CPU/system fan headers RGB headers (3x ARGB Gen2, 1x RGB) 2 x M.2, 4 x SATA Front panel, front audio, TPM, USB headers Q-Flash Plus, Reset, CMOS jumpers |
| Warranty Information | |
| Warranty | 3 Years |
GIGABYTE B860M DS3H WIFI6E Intel Motherboard
The GIGABYTE B860M DS3H WIFI6E Intel Motherboard is a powerful and future-ready micro ATX board built for 14th Gen and Intel® Core™ Ultra processors with the latest LGA1851 socket. Designed for performance users, gamers, and professionals alike, it brings together robust build quality, extensive connectivity, and modern performance technologies. This board supports ultra-fast DDR5 memory up to 9066MHz (OC), allowing you to enjoy next-gen multitasking, faster load times, and smoother computing.With integrated Intel HD Graphics support, including HDMI 2.1 and DisplayPort 2.1, it can run up to three displays simultaneously, making it ideal for productivity and entertainment. Gamers will appreciate the PCIe 5.0 x16 slot, enabling high-bandwidth graphics card installation for seamless gaming performance. It also offers two M.2 slots (PCIe 5.0 & 4.0), and 4 SATA ports to build a fast and flexible storage system.The motherboard features built-in Wi-Fi 6E and Bluetooth 5.3, ensuring lightning-fast wireless connectivity. It also includes Realtek 2.5GbE LAN for lag-free wired networking. Audio is powered by Realtek's high-definition codec, delivering immersive 7.1-channel surround sound.On the back panel, you’ll find versatile I/O options including USB 3.2 Gen2, Gen1, and legacy USB 2.0, triple audio jacks, DisplayPorts, and HDMI. A range of RGB headers and system fan connectors gives builders total customization and cooling control.Whether you're upgrading or building new, the GIGABYTE B860M DS3H WIFI6E delivers excellent reliability, connectivity, and expansion features for any modern PC build.
Features
- Supports 14th Gen and Intel® Core™ Ultra CPUs with LGA1851 socket
- DDR5 Memory support up to 9066MHz (OC), up to 256GB
- PCIe 5.0 x16 slot for high-speed GPU or NVMe SSD
- Dual M.2 slots: PCIe 5.0 & 4.0 SSD support
- Built-in Wi-Fi 6E and Bluetooth 5.3 connectivity
- Realtek 2.5GbE LAN for ultra-fast networking
- Triple-display support with HDMI 2.1 & DP 2.1
- Multiple USB 3.2 Gen2/Gen1 & Type-C ports
- 7.1 Channel HD Audio with Realtek Codec
- 3 Years Official Warranty in Bangladesh
