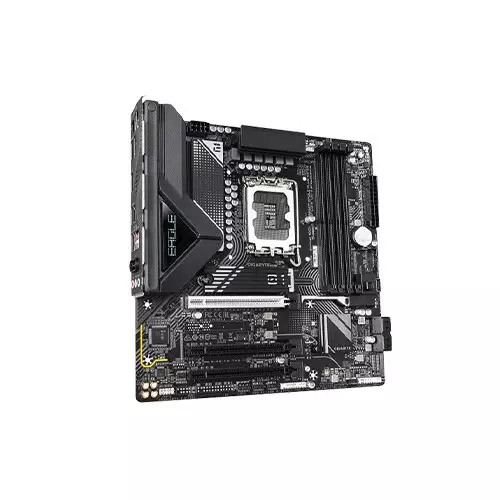

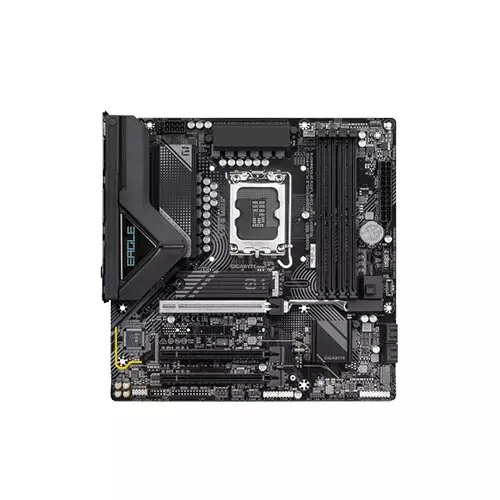

GIGABYTE Intel B860M EAGLE PLUS WIFI6E Motherboard

Product ID
UT-12875
Availability
In stock
Questions
0 answered
Ultimate upgrade, powers unleashed — get CONTROL Resonant with select GeForce RTX 50 Series

All prices include VAT. 0% EMI from ৳2,542/mo on 29 banks.

Save ৳9,000 -23%৳30,500Was ৳39,500

Key features

Full specs
  • Socket TypeLGA1851
  • Processor SupportIntel® Core™ Ultra Processors
  • MemoryDual Channel DDR5 up to 256GB
  • StoragePCIe 5.0/4.0 M.2 + 4×SATA 6Gb/s with RAID support
  • 0% EMI on credit cards of 29 banks — ৳2,542/mo for 12 months.
  • Online price saves you ৳9,000 (offer valid while stock lasts).
  • Free assembly & testing when you build a PC with our PC Builder.
From this brandGigabyte341 productsBrowse all →

Specifications

Key Specifications

Processor TypeIntel
SocketLGA1851
ChipsetIntel B860
Form FactorMicro ATX
RAM TypeDDR5
Maximum Memory256GB
Memory Slots4 Slots
FeaturesWi-Fi, Bluetooth, M.2, RGB, USB Type-C, PCIe 5.0

Processor

Supported CPULGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU

Memory

MemorySupport for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Expansion & Storage

Expansion SlotsCPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)
StorageCPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2N_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Graphics & Display

Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time

Networking

LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WirelessIntel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)

Audio

AudioRealtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Ports & Connectors

USBChipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

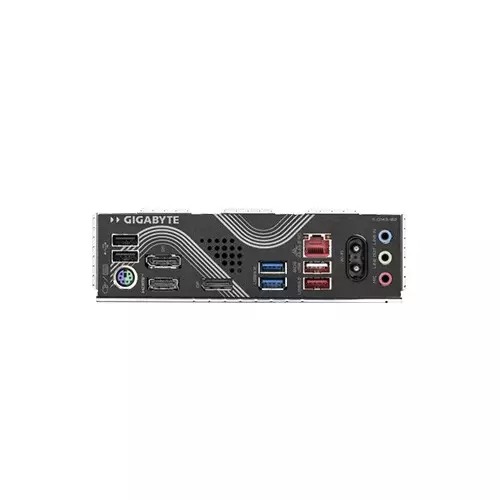

Rear Panel I/O1 x PS/2 keyboard/mouse port 1 x HDMI port* 2 x DisplayPorts* 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU.
Internal Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Other Features

BIOS1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special FeaturesH/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. Unique Features: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11.
Bundled SoftwareNorton® Internet Security (OEM version) LAN bandwidth management software

More Specifications

I/O ControlleriTE® I/O Controller Chip

Warranty

Warranty3 years

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

GIGABYTE Intel B860M EAGLE PLUS WIFI6E Motherboard

The GIGABYTE B860M EAGLE PLUS WIFI6E Motherboard is a high-performance Micro ATX board designed for game rs, content creators, and PC enthusiasts seeking speed, reliability, and next-generation connectivity. Built on the Intel® B860 chipset with an LGA1851 socket, it supports Intel® Core™ Ultra processors, delivering future-ready performance for gaming, multitasking, and creative workloads. It features four DDR5 DIMM slots supporting up to 256 GB memory at speeds up to 9066(O.C.) MT/s, with dual-channel architecture and XMP profiles for optimized memory performance. Integrated graphics support includes dual DisplayPort 2.1 (3840×2160@144 Hz) and HDMI 2.1 (4096×2160@60 Hz), while the Realtek® Audio codec provides up to 7.1-channel high-definition audio. Networking combines Realtek® 2.5GbE LAN and Intel®/Realtek® Wi-Fi 6E with Bluetooth 5.3 for stable wired and wireless connectivity. Storage options include two M.2 slots (PCIe 5.0/4.0) and four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support. Expansion slots feature PCIe 5.0 x16, PCIe 4.0 x16 (x1 mode), and PCIe 4.0 x1 slots for graphics cards and additional components. Connectivity includes USB 3.2 Gen 2, USB Type-C®, USB 3.2 Gen 1, and USB 2.0 ports. RGB headers, multiple fan/pump headers, and hardware monitoring provide customizable lighting, advanced cooling, and system stability.

Crystal-Clear Visuals and Powerful Memory Support

The GIGABYTE B860M EAGLE PLUS WIFI6E delivers ultra-sharp 4K visuals via dual DisplayPort 2.1 and HDMI 2.1 while supporting DDR5 memory up to 256 GB for high-speed gaming and multitasking.

Seamless Connectivity and Storage Expansion

Two M.2 slots and four SATA ports with RAID support provide flexible, high-speed storage solutions. USB 3.2 Gen 2, Gen 1, and Type-C® ports ensure versatile peripheral connectivity.

Reliable Networking and Superior Audio

Equipped with Wi-Fi 6E, Bluetooth 5.3, and Realtek® 2.5GbE LAN, the motherboard offers stable wired and wireless connections. The Realtek® Audio codec delivers immersive 7.1-channel high-definition sound.

Why Choose the GIGABYTE B860M EAGLE PLUS WIFI6E?

  • Supports Intel® Core™ Ultra processors
  • High-speed DDR5 memory up to 9066(O.C.) MT/s, 256 GB max capacity
  • Dual M.2 slots with PCIe 5.0/4.0 support and RAID capability
  • 4K-ready DisplayPort 2.1 and HDMI 2.1 graphics output
  • Wi-Fi 6E, Bluetooth 5.3, and Realtek® 2.5GbE LAN connectivity
  • 7.1-channel HD audio with Realtek® Audio codec
  • Customizable RGB lighting and advanced cooling options
  • Micro ATX form factor with compact and durable design

Buy Now GIGABYTE Intel B860M EAGLE PLUS WIFI6E Motherboard at Ultra Technology

The GIGABYTE B860M EAGLE PLUS WIFI6E Micro ATX Motherboard, available at Ultra Technology, combines DDR5 performance, PCIe 5.0 storage support, Wi-Fi 6E, Bluetooth 5.3, and advanced connectivity in a compact, durable design. Ideal for gamers, creators, and professionals seeking a powerful and versatile platform.

Buy GIGABYTE Intel B860M EAGLE PLUS WIFI6E Motherboard from Ultra Technology

Get the GIGABYTE Intel B860M EAGLE PLUS WIFI6E Motherboard from Ultra Technology for ৳30,500 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from Gigabyte, explore more GIGABYTE Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
