Gigabyte GA-H81M-DS2 Micro ATX Motherboard

Gigabyte GA-H81M-DS2 Micro ATX Motherboard
Gigabyte GA-H81M-DS2 Micro ATX Motherboard
Gigabyte GA-H81M-DS2 Micro ATX Motherboard
-16 %
Gigabyte GA-H81M-DS2 Micro ATX Motherboard
Gigabyte GA-H81M-DS2 Micro ATX Motherboard
Gigabyte GA-H81M-DS2 Micro ATX Motherboard
Gigabyte GA-H81M-DS2 Micro ATX Motherboard
Based on 0 reviews. - Write a review
8,800৳
10,500৳
Ex Tax: 8,800৳
EMI starts at 3,086৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: GA-H81M-DS2
  • SKU: GA-H81M-DS2
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Key Features

    • Model: GA-H81M-DS2
    • CPU: 4th Generation Intel Processors
    • Chipset: Intel H81 Express
    • 2 x 1.5V DDR3
    • 3 x PCI Express slot
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Maximum Mamory 16 GB
PCI 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.)
Slots 2 x 1.5V DIMM
Main Features
Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
BIOS 2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel® H81 Express
Form Factor Micro ATX Form Factor; 22.6cm x 17cm
Supported CPU Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU
Graphics Specifications
Graphics Memory 1 x D-Sub port, supporting a maximum resolution of 1920x1200
Max Shared Memory 1 GB
Memory Specifications
Memory Type Dual channel DDR3 memory architecture
Supported Memory Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Connector & ports
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices

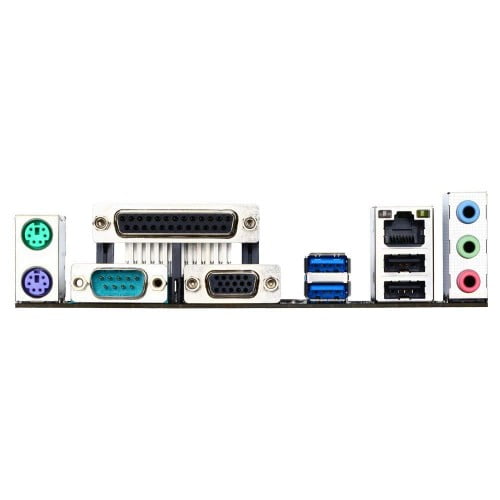

USB (s) Chipset: Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Warranty Information
Warranty 03 Years

Gigabyte GA-H81M-DS2 Micro ATX Motherboard

Next-Gen Intel 8 Series Platform The Gigabyte GA-H81M-DS2 Motherboard latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles. GIGABYTE Ultra Durable 4 Plus GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan. Ultra Performance GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan. Ultra Safe GIGABYTE motherboards feature GIGABYTE Dual BIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE Dual BIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process. Humidity Protection High ESD Protection for USB and LAN (USB 3.0 only) GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes. On/Off Charge Technology GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger.
