Gigabyte B760M D2H DDR5 13th and 12th Gen Intel Motherboard

Gigabyte B760M D2H DDR5 13th and 12th Gen Intel Motherboard

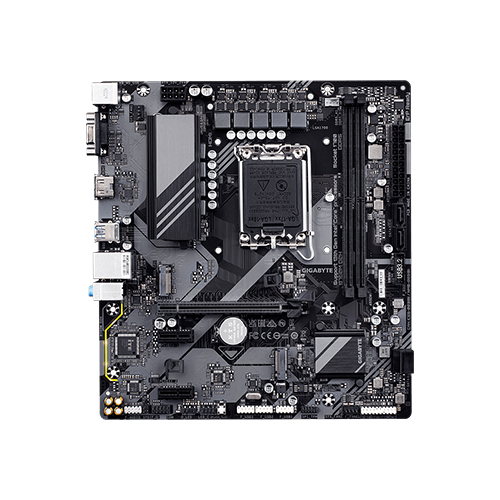

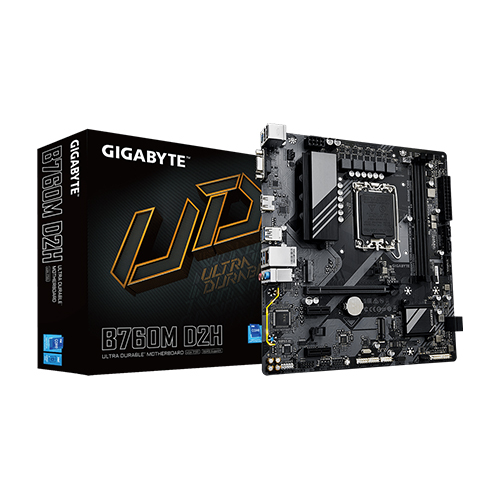

The Gigabyte B760M D2H DDR5 motherboard is a high-performance micro ATX motherboard designed for the 13th and 12th Generation Intel Core processors, Pentium Gold, and Celeron processors. It offers a range of features and capabilities to support a powerful and efficient computing system.

One of the key highlights of this motherboard is its support for DDR5 memory. It can accommodate up to 96GB of DDR5 RAM across two DIMM sockets, with a maximum single DIMM capacity of 48GB. This allows for blazing-fast memory performance and improved overall system responsiveness.

The motherboard is built with the Intel B760 Express Chipset, providing excellent stability and reliability. It features a CPU socket LGA1700, enabling seamless compatibility with the latest Intel processors. The integrated Intel HD Graphics supports multiple display options, including a D-Sub port and an HDMI port with high-resolution capabilities.

In terms of expansion slots, the motherboard offers a PCI Express x16 slot that supports PCIe 4.0 for high-speed graphics cards and other expansion cards. It also provides two PCI Express x1 slots for additional peripheral connectivity.

The audio capabilities of the Gigabyte B760M D2H motherboard are powered by the Realtek Audio CODEC, delivering high-definition audio with support for 2/4/5.1/7.1-channel configurations. It also includes S/PDIF Out for digital audio output.

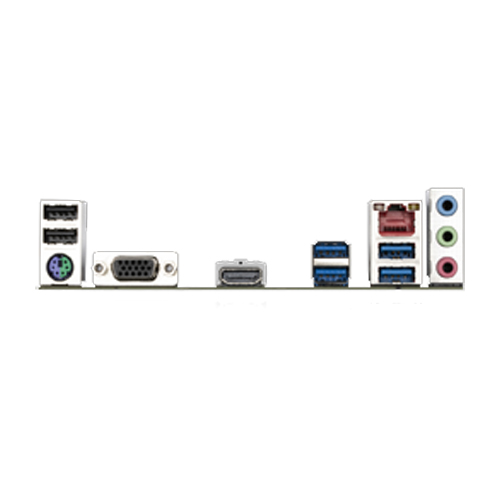

For connectivity, the back panel of the motherboard offers a range of ports, including PS/2 keyboard/mouse, D-Sub, HDMI, USB 3.2 Gen 1, USB 2.0/1.1, RJ-45 Ethernet, and audio jacks. Additionally, it features a 2.5GbE LAN chip for high-speed network connectivity.

The motherboard comes with various internal connectors, such as M.2 sockets for high-speed storage, SATA connectors for traditional storage devices, USB headers for additional USB connectivity, and RGB LED headers for customizable lighting options.

Furthermore, the Gigabyte B760M D2H motherboard incorporates advanced monitoring features for voltage, temperature, fan speed, and water cooling flow rate. It also includes fan speed control and warnings to ensure optimal system performance and cooling.

In terms of software features, the motherboard supports GIGABYTE Control Center (GCC), which provides intuitive control and management of various system settings. It also includes Q-Flash and Q-Flash Plus for easy and reliable BIOS updating.

Features

• DDR5 Memory Support: The motherboard supports DDR5 memory modules with speeds ranging from 4800 MT/s to 8000 MT/s. It provides two DDR5 DIMM sockets, allowing for a maximum capacity of 96GB (48GB per DIMM) of system memory. It also supports dual-channel memory architecture and Extreme Memory Profile (XMP) modules for optimized performance.
• Powerful Expansion Slots: The motherboard features a CPU-based PCI Express x16 slot that supports PCIe 4.0, allowing for high-speed graphics card installation. Additionally, there are two PCI Express x1 slots powered by the chipset, supporting PCIe 3.0 for additional expansion cards.
• High-Definition Audio: The Realtek Audio CODEC onboard provides high-definition audio with support for 2/4/5.1/7.1-channel configurations. It also includes support for S/PDIF Out, allowing for digital audio output.
• Extensive Connectivity: The back panel of the motherboard features a range of connectors, including PS/2 keyboard/mouse, D-Sub, HDMI, USB 3.2 Gen 1, USB 2.0/1.1, RJ-45 Ethernet, and audio jacks. This provides various options for connecting peripherals and external devices.
• Comprehensive I/O Connectors: The motherboard includes several internal connectors for enhanced functionality. These include M.2 Socket 3 connectors for high-speed storage, SATA 6Gb/s connectors for traditional storage devices, USB headers for additional USB connectivity, RGB LED strip headers for customizable lighting, and more.
• Networking Capabilities: The motherboard incorporates a Realtek 2.5GbE LAN chip, providing 2.5 Gbps, 1 Gbps, and 100 Mbps network connectivity options. This allows for high-speed and stable network connections.
• User-Friendly Features: The Gigabyte B760M D2H DDR5 motherboard includes various user-friendly features such as voltage, temperature, fan speed, and water cooling flow rate detection. It also offers fan fail warnings and fan speed control for optimal cooling performance. Additionally, it supports GIGABYTE Control Center (GCC) for easy system management and Q-Flash and Q-Flash Plus for convenient BIOS updating.
• Storage Options: The motherboard provides storage interfaces such as CPU-based M.2 connectors (M2A_CPU) and chipset-based M.2 connectors (M2P_SB), supporting PCIe 4.0 x4/x2 SSDs. It also includes four SATA 6Gb/s connectors and supports RAID 0, RAID 1, RAID 5, and RAID 10 configurations for SATA storage devices.
• Operating System Support: The motherboard is compatible with Windows 11 64-bit and Windows 10 64-bit, offering support for the latest operating systems.
• USB Connectivity: The motherboard offers multiple USB ports, including six USB 3.2 Gen 1 ports and four USB 2.0/1.1 ports. These ports are available both on the back panel and through internal USB headers, providing ample connectivity options for various devices.

Overall, the Gigabyte B760M D2H DDR5 motherboard offers a feature-rich and highly capable platform for building a powerful desktop system. With its support for the latest Intel processors, DDR5 memory, and various connectivity options, it is suitable for both gaming enthusiasts and professional users who require high performance and stability.
