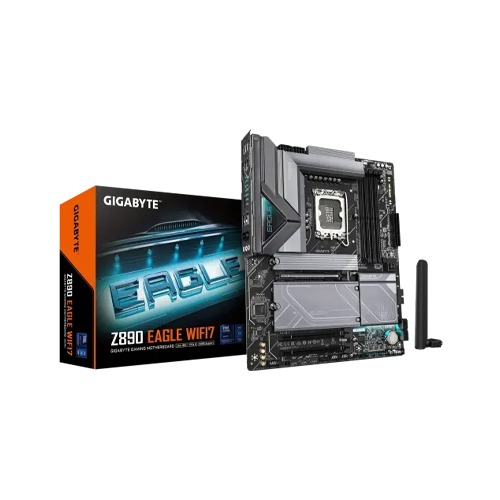

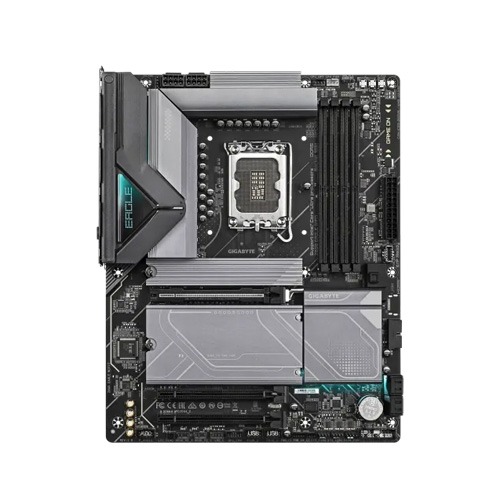

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: Z890 EAGLE WIFI7
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
- Graphics Output: 1x DisplayPort, 1 x (USB4 Type-C port Supports DisplayPort),
- Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
| General Information | |
| Type | DDR5 |
| Chipset Manufacturer | - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Bios Information | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Display Port (s) | - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version (Graphics specifications may vary depending on CPU support.) |
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| Maximum Memory Supported | 256GB (64 GB single DIMM capacity) of system memory |
| PCI | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Slots | 4 x DIMM |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency band - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
| Main Features | |
| Supported CPU | Intel Core Ultra Processors(Series 2) |
| Memory Specifications | |
| Supported Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| Connector & ports | |

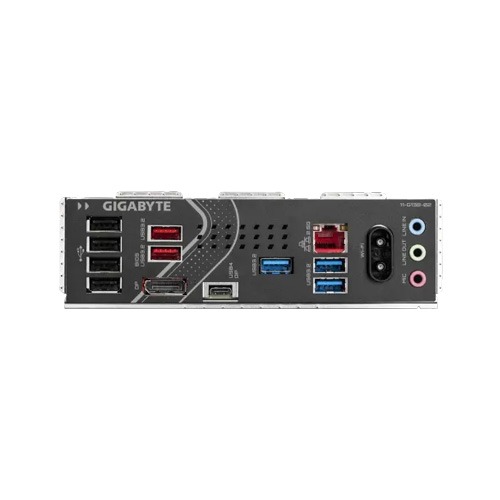

| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
| Warranty Information | |
| Warranty | 3 Year Warranty |
Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard
Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard is an advanced and versatile solution designed to cater to the needs of gamers, content creators, and tech enthusiasts. Built with the Intel Z890 chipset, this motherboard supports the latest Intel Core Ultra processors with the LGA 1851 socket, ensuring top-tier performance for demanding applications. It offers comprehensive support for DDR5 memory with speeds up to 9200 MT/s, allowing users to achieve faster performance and multitasking capabilities. With a maximum memory capacity of 256GB, the motherboard is perfect for high-end PC builds.One of the key features of this motherboard is the inclusion of PCIe 5.0 slots, providing enhanced data transfer speeds for next-generation GPUs and NVMe SSDs. The multiple M.2 slots offer flexibility for users to expand their high-speed storage, ensuring that the system remains responsive even under heavy workloads. The motherboard also includes advanced cooling solutions, keeping the system temperatures in check during intense gaming or rendering sessions.Connectivity is a strong point of the Gigabyte Z890 EAGLE WIFI7. It features Realtek 2.5GbE LAN for stable wired connections and MediaTek Wi-Fi 7 for ultra-fast wireless communication. Additionally, Bluetooth 5.4 support makes it easy to connect to peripherals wirelessly. The USB4 Type-C port and DisplayPort output ensure stunning visuals with support for resolutions up to 3840x2160 at 144Hz, making it suitable for gaming and multimedia tasks.This motherboard is packed with various internal and external I/O options, including multiple USB ports, RGB headers, and fan headers for extensive customization. With features like Q-Flash, Smart Backup, and Gigabyte Control Center, users can easily manage and optimize system performance. Backed by a 3-year warranty, the Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard ensures long-term reliability and performance for any high-end PC build.
Features
- Supports Intel Core Ultra Processors with LGA 1851 socket.
- Intel Z890 chipset for advanced performance.
- DDR5 memory support up to 9200 MT/s.
- PCIe 5.0 slots for next-gen GPUs and SSDs.
- Realtek 2.5GbE LAN and MediaTek Wi-Fi 7.
- USB4 Type-C and DisplayPort with 4K@144Hz support.
- Comprehensive internal and external I/O ports.
- Advanced cooling solutions for optimal performance.
